Nexperia Dual NX3008CBKS 2 Type P, Type N-Channel Trench MOSFET, 350 mA, 30 V Enhancement, 6-Pin SC-88 NX3008CBKS,115
- RS Stock No.:
- 136-4842
- Mfr. Part No.:
- NX3008CBKS,115
- Manufacturer:
- Nexperia

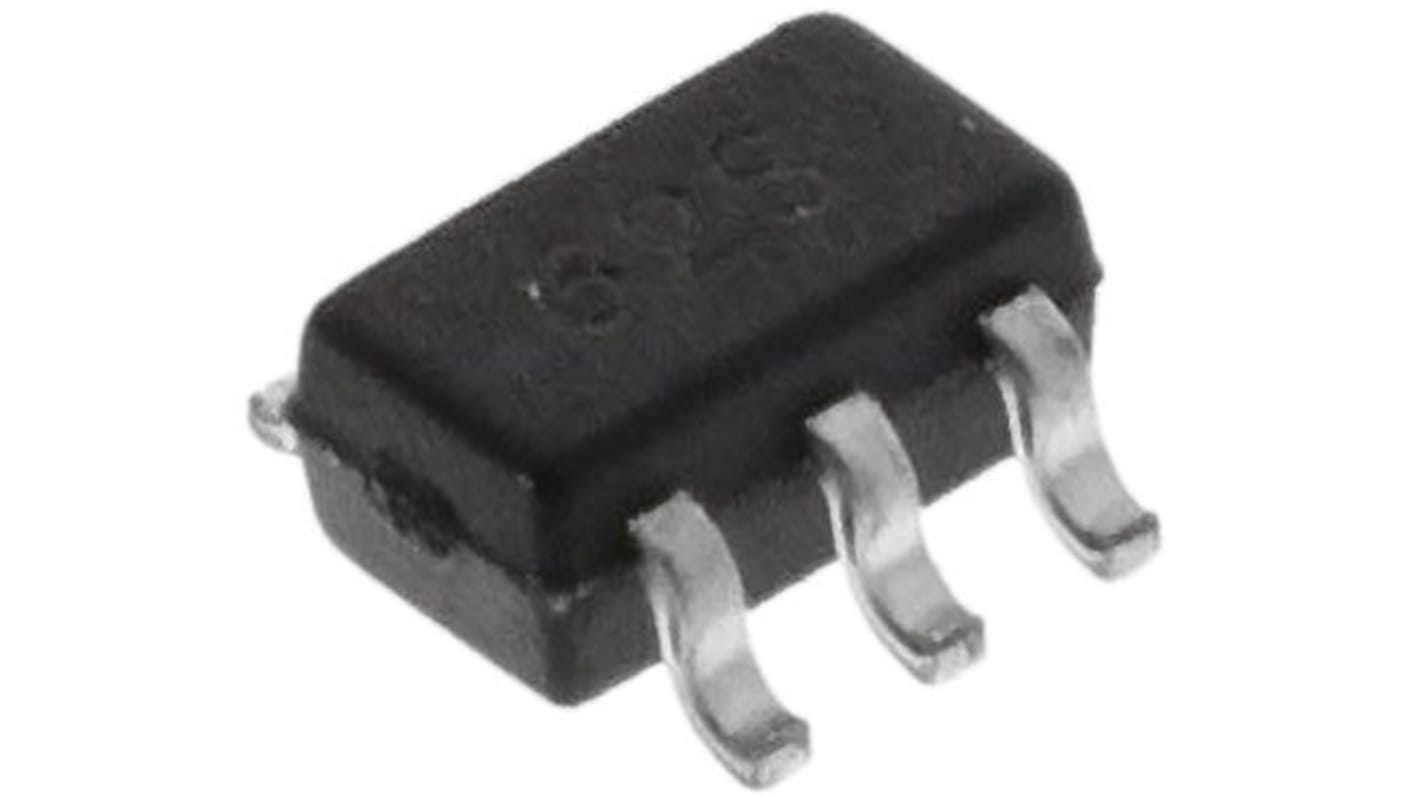

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 100 units)*
SGD20.00
(exc. GST)
SGD22.00
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
Temporarily out of stock
- 51,000 unit(s) shipping from 20 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 500 | SGD0.20 | SGD20.00 |
| 600 - 1400 | SGD0.194 | SGD19.40 |
| 1500 + | SGD0.188 | SGD18.80 |
*price indicative
- RS Stock No.:
- 136-4842
- Mfr. Part No.:
- NX3008CBKS,115
- Manufacturer:
- Nexperia
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Channel Type | Type P, Type N | |
| Product Type | Trench MOSFET | |
| Maximum Continuous Drain Current Id | 350mA | |
| Maximum Drain Source Voltage Vds | 30V | |
| Package Type | SC-88 | |
| Series | NX3008CBKS | |
| Mount Type | Surface | |
| Pin Count | 6 | |
| Maximum Drain Source Resistance Rds | 4.1Ω | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | 150°C | |
| Typical Gate Charge Qg @ Vgs | 0.52nC | |
| Maximum Power Dissipation Pd | 990mW | |
| Maximum Gate Source Voltage Vgs | 8 V | |
| Transistor Configuration | Dual | |
| Maximum Operating Temperature | -55°C | |
| Length | 2.2mm | |
| Standards/Approvals | No | |
| Height | 1mm | |
| Width | 1.35 mm | |
| Number of Elements per Chip | 2 | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Channel Type Type P, Type N | ||
Product Type Trench MOSFET | ||
Maximum Continuous Drain Current Id 350mA | ||
Maximum Drain Source Voltage Vds 30V | ||
Package Type SC-88 | ||
Series NX3008CBKS | ||
Mount Type Surface | ||
Pin Count 6 | ||
Maximum Drain Source Resistance Rds 4.1Ω | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature 150°C | ||
Typical Gate Charge Qg @ Vgs 0.52nC | ||
Maximum Power Dissipation Pd 990mW | ||
Maximum Gate Source Voltage Vgs 8 V | ||
Transistor Configuration Dual | ||
Maximum Operating Temperature -55°C | ||
Length 2.2mm | ||
Standards/Approvals No | ||
Height 1mm | ||
Width 1.35 mm | ||
Number of Elements per Chip 2 | ||
Automotive Standard AEC-Q101 | ||
Dual N/P-Channel MOSFET, Nexperia
MOSFET Transistors, NXP Semiconductors
