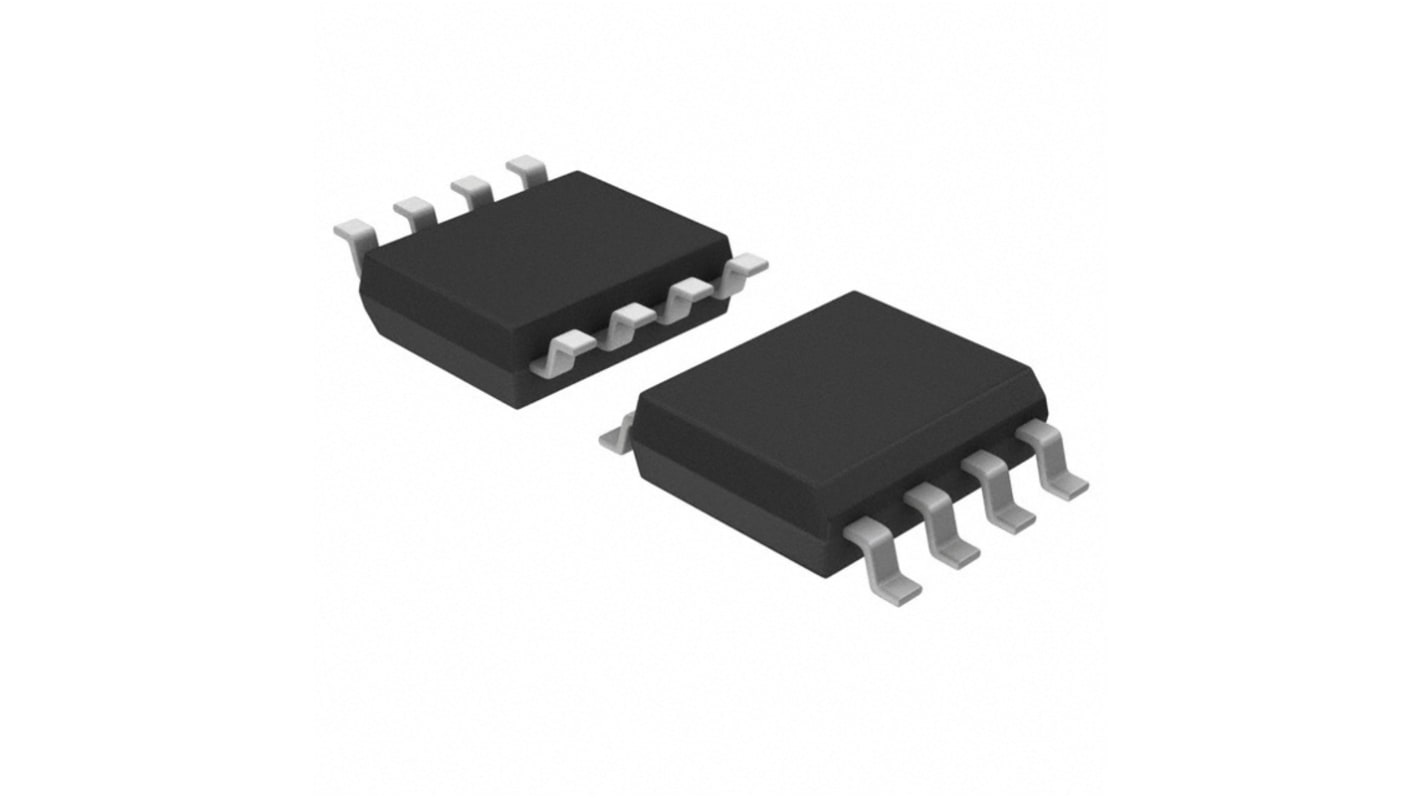

PWM Controller, 1 MHz
- RS Stock No.:
- 249-2460
- Mfr. Part No.:
- MIC2132YML-TR
- Manufacturer:
- Microchip
View all PWM
3290 In stock for delivery within 4 working days
Price Each (In a Pack of 2)
SGD3.915
(exc. GST)
SGD4.228
(inc. GST)
| units | Per unit | Per Pack* |
| 2 - 48 | SGD3.915 | SGD7.83 |
| 50 - 98 | SGD3.655 | SGD7.31 |
| 100 - 248 | SGD3.375 | SGD6.75 |
| 250 - 998 | SGD3.305 | SGD6.61 |
| 1000 + | SGD3.24 | SGD6.48 |
| *price indicative | ||
Packaging Options:
- RS Stock No.:
- 249-2460
- Mfr. Part No.:
- MIC2132YML-TR
- Manufacturer:
- Microchip
Technical data sheets
Legislation and Compliance
Product Details
The Microchip constant on-time, dual phase synchronous buck controller featuring a unique adaptive on-time control architecture with a stackable feature of up to eight phases. It operates over an input supply range from 8V to 75V. The output voltage is adjustable down to 0.6V with an ensured accuracy of ±1% at the FBS pin. The device operates with programmable switching frequency from 100 kHz to 1 MHz per phase.
0.6V internal reference with ±1% accuracy
Novel ripple injection method to allow greater than 50% duty cycle operation
Operates in CCM, stackable for multiphase operation up to eight phases
Droop feature to support adaptive voltage positioning (AVP) for improved load transient response
Novel ripple injection method to allow greater than 50% duty cycle operation
Operates in CCM, stackable for multiphase operation up to eight phases
Droop feature to support adaptive voltage positioning (AVP) for improved load transient response
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
| Attribute | Value |
| Maximum Switching Frequency | 1 MHz |
| Start-up Supply Current | 0.0017mA |
| Maximum Source Current | 0.1A |
| Maximum Sink Current | 0.1A |
| Maximum Supply Current | 8 mA |
| Output Voltage | 28 V |
