Microchip MIC21LV32YML-TR 5 PWM Controller, 1 MHz 36 V 32-Pin, VQFN
- RS Stock No.:
- 242-5150
- Mfr. Part No.:
- MIC21LV32YML-TR
- Manufacturer:
- Microchip

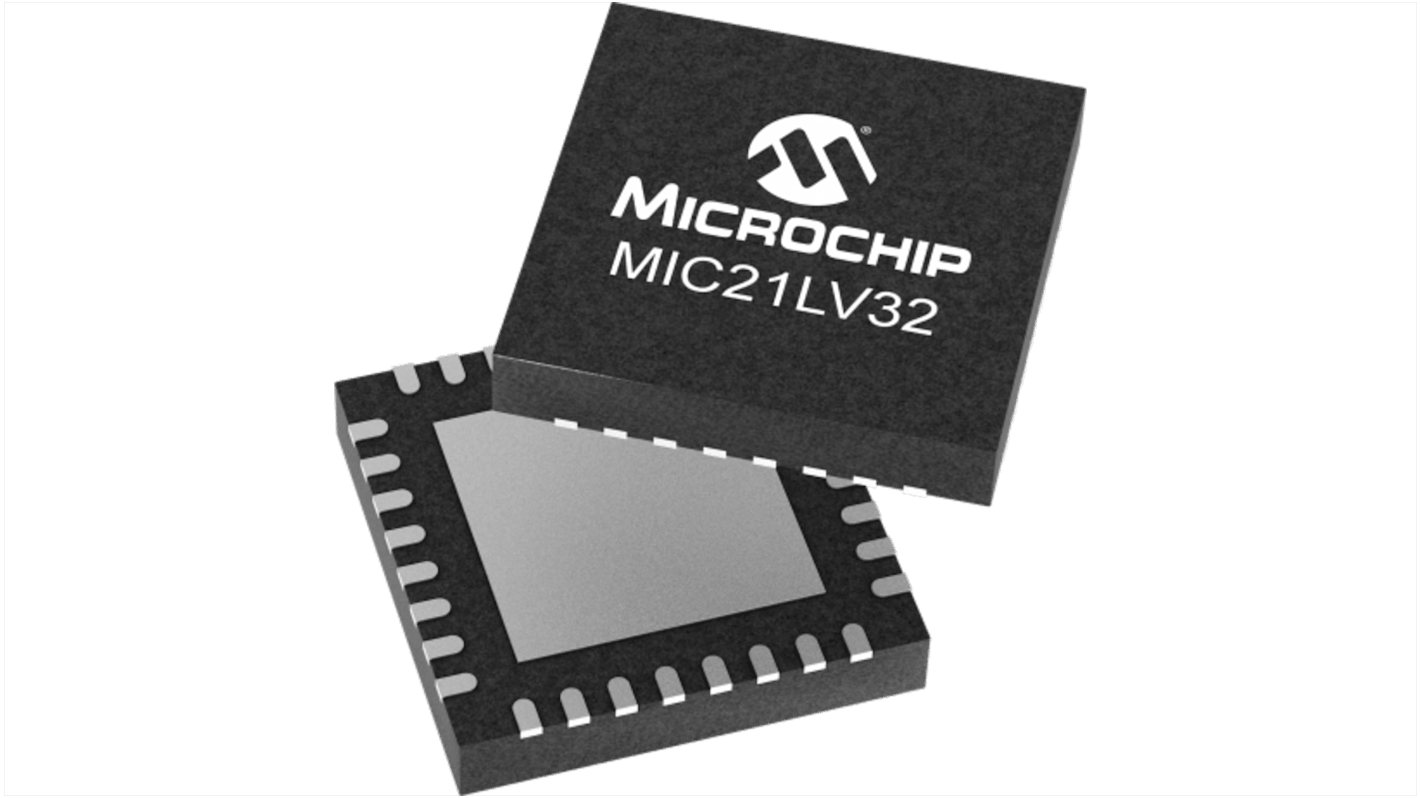

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
SGD16.44
(exc. GST)
SGD17.92
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
Last RS stock
- Final 150 unit(s), ready to ship from another location
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | SGD3.288 | SGD16.44 |
| 50 - 95 | SGD2.732 | SGD13.66 |
| 100 - 245 | SGD2.526 | SGD12.63 |
| 250 - 995 | SGD2.474 | SGD12.37 |
| 1000 + | SGD2.424 | SGD12.12 |
*price indicative
- RS Stock No.:
- 242-5150
- Mfr. Part No.:
- MIC21LV32YML-TR
- Manufacturer:
- Microchip
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Maximum Switching Frequency | 1MHz | |
| Product Type | PWM Controller | |
| Start-up Supply Current | 0.1mA | |
| Output Voltage | 36 V | |
| Supply Current | 5mA | |
| Output Current | 50A | |
| Number of Outputs | 5 | |
| Mount Type | Surface | |
| Package Type | VQFN | |
| Minimum Supply Voltage | 4.5V | |
| Pin Count | 32 | |
| Topology | Buck | |
| Maximum Supply Voltage | 36V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Duty Cycle | 50% | |
| Maximum Operating Temperature | 125°C | |
| Length | 5mm | |
| Series | MIC21LV32 | |
| Standards/Approvals | RoHS | |
| Height | 0.9mm | |
| Width | 5 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Maximum Switching Frequency 1MHz | ||
Product Type PWM Controller | ||
Start-up Supply Current 0.1mA | ||
Output Voltage 36 V | ||
Supply Current 5mA | ||
Output Current 50A | ||
Number of Outputs 5 | ||
Mount Type Surface | ||
Package Type VQFN | ||
Minimum Supply Voltage 4.5V | ||
Pin Count 32 | ||
Topology Buck | ||
Maximum Supply Voltage 36V | ||
Minimum Operating Temperature -40°C | ||
Maximum Duty Cycle 50% | ||
Maximum Operating Temperature 125°C | ||
Length 5mm | ||
Series MIC21LV32 | ||
Standards/Approvals RoHS | ||
Height 0.9mm | ||
Width 5 mm | ||
Automotive Standard No | ||
The Microchip MIC21LV32 is an advanced constant on-time, dual phase synchronous buck controller featuring a unique adaptive ON-time control architecture with stackable feature up to 8 phases. The MIC21LV32 operates over an input supply range from 4.5V to 36V and can be used in application requiring up to 50A of output current. The output voltage is adjustable down to 0.6V with a guaranteed accuracy of ±1% over the entire operating or ±0.5% for -40 to 105 degrees C temperature range .
Adjustable output voltage from 0.6V to 28V
0.6V internal reference with ±1% accuracy
±0.5% reference accuracy for -40°C to 105°C
Operates in CCM, stackable for multiphase operation up to 8 phases
Accurate 180° phasing of outputs
