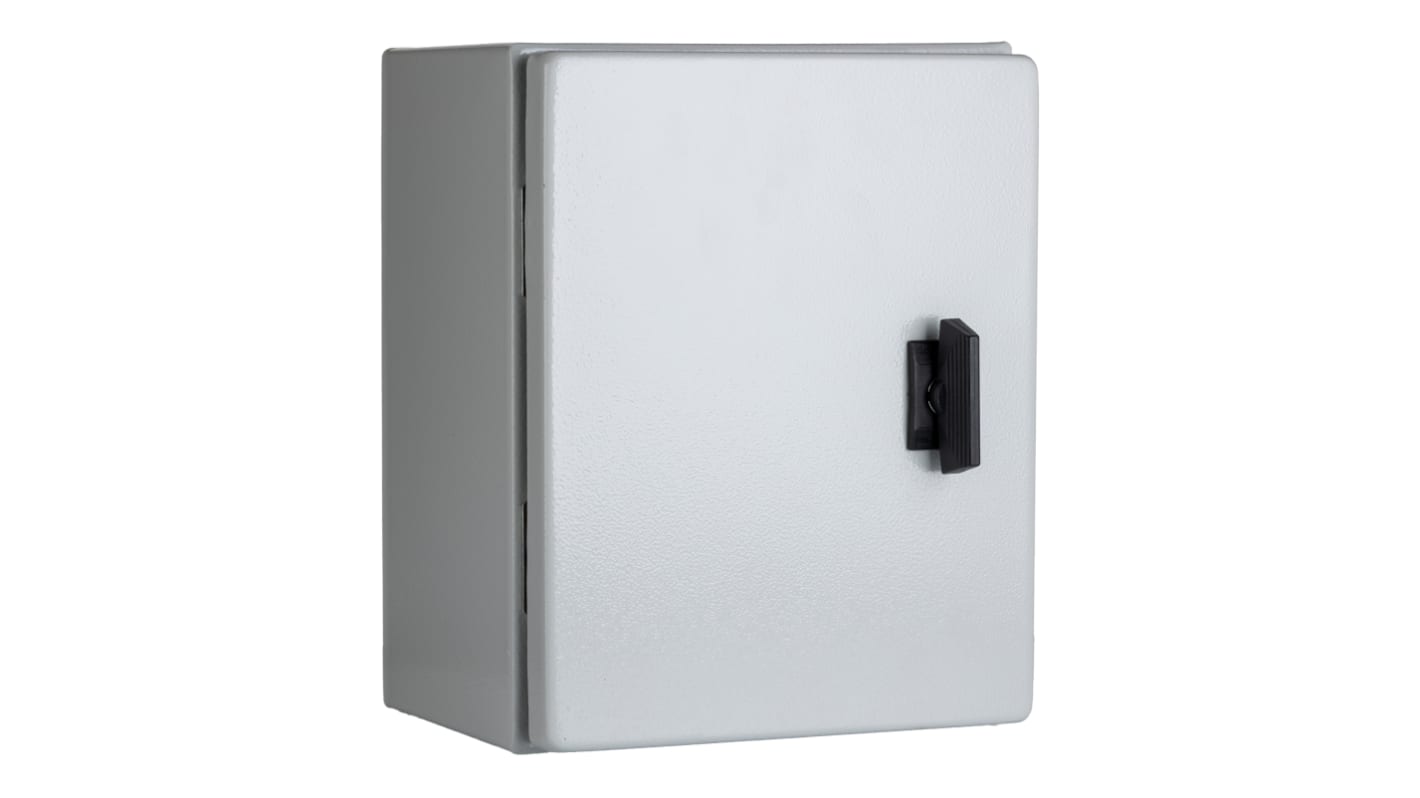

Schneider Electric Spacial CRN Series Steel Wall Box, IP66, 250 mm x 200 mm x 150mm
- RS Stock No.:
- 707-9110
- Mfr. Part No.:
- NSYCRN252150
- Manufacturer:
- Schneider Electric
22 In stock for delivery within 4 working days
Price Each
SGD156.39
(exc. GST)
SGD170.47
(inc. GST)
Units | Per unit |
|---|---|
| 1 - 5 | SGD156.39 |
| 6 - 29 | SGD145.56 |
| 30 + | SGD119.80 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 707-9110
- Mfr. Part No.:
- NSYCRN252150
- Manufacturer:
- Schneider Electric
Technical data sheets
Legislation and Compliance
Product Details
IP66 Spacial CRN Enclosures
The range of Spacial CRN enclosures from Schneider Electric have a steel monobloc construction with a punched steel door. The sides are made from a single folded section and the back is welded with a double profile to form a protected sealed area. The Spacial CRN enclosures are painted externally and internally with a textured light grey RAL 7035 epoxy-polyester resin.
Features & Benefits
• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas
• External mechanical impact resistance of IK10 (joules 20) meaning the wall box gives protection against a 5 kg object dropped from 40 cm in height
• Easily reversible door, fixed with metal hinges allowing the door to open to 120°
• 4 wall fixing drill holes sealed with plastic plugs to ensure the degree of protection
• Welded earth studs on door and body
• External mechanical impact resistance of IK10 (joules 20) meaning the wall box gives protection against a 5 kg object dropped from 40 cm in height
• Easily reversible door, fixed with metal hinges allowing the door to open to 120°
• 4 wall fixing drill holes sealed with plastic plugs to ensure the degree of protection
• Welded earth studs on door and body
Applications
- Plain, Silk-screen, micro-perforated, Telequick perforated, Symmetrical, Steel cable gland plate, Insulated cable gland plate (with knockouts), Cable gland plate will receive membranes.
The Spacial CRN enclosures are designed for electrical distribution, industrial automation and industrial control.
Spacial CRN / CRNG Steel Wall Box Enclosure Typical Applications.
- Industrial automation, Industrial control (plain chassis, micro-perforated chassis, perforated chassis).
- Electrical distribution (modular chassis, steel and insulated – 24 to 234 modules).
- Electronics and Industrial networks (18 inch fixed or swing frame).
Note
Wall brackets available seperately.
Not all enclosures are supplied with a mounting (chassis) plate, please refer to the attribute data for details.
Not all enclosures are supplied with a mounting (chassis) plate, please refer to the attribute data for details.
NSYCRN252150 Wall Mounting Enclosure
What are the external dimensions?
NSYCRN252150 has external dimensions of 250 x 200 x 150 mm.
What is supplied?
The NSYCRN252150 enclosure is supplied with a 1 body, 1 plain door, 1 cable gland plate and 1 steel body.
Can the wall box be used outside?
The NSYCRN252150 has an Ingress Protection rating of IP66 so can be used inside or outside.
What type of lock does it have?
The enclosure has a 3 mm double-bar lock.
Standards
IEC 62208 which is the reference standard regarding empty enclosures for device assemblies for protection and manoeuvre to low voltage
Specifications
Attribute | Value |
|---|---|
| External Height | 250 mm |
| External Width | 200 mm |
| External Depth | 150mm |
| Body Material | Steel |
| Transparent Door | No |
| IP Rating | IP66 |
| Chassis Plate | No |
| Door Lock Type | Double Bar |
| Gland Plate | Yes |
| Colour | Grey |
| RAL Code | RAL 7035 |
| Series | Spacial CRN |
| Better World Product | Yes |
| Better World Verification | Green Premium |
| External Mounting Type | Bracket |
| Special Features | 120° Door Opening |
| Internal Mounting Type | Panel |
| IK Rating | IK10 |
| Fixing Kit | No |
