Schneider Electric Spacial CRN Series Steel Wall Box, IP66, 200 mm x 300 mm x 150mm

RS Stock No.:: 186-4748
Mfr. Part No.:: NSYCRN23150
Manufacturer:: Schneider Electric

Schneider Electric Spacial CRN Series Steel Wall Box, IP66, 200 mm x 300 mm x 150mm

Price Each**

SGD329.59

(exc. GST)

SGD359.25

(inc. GST)

1 In Global stock for delivery within 5 working day(s)*

8 In Global stock for delivery within 4 working day(s)

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over SGD250.00 (ex GST)

Units	Per unit
1 +	SGD329.59

**price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 186-4748
Mfr. Part No.:: NSYCRN23150
Manufacturer:: Schneider Electric

Spacial CRN 1864748

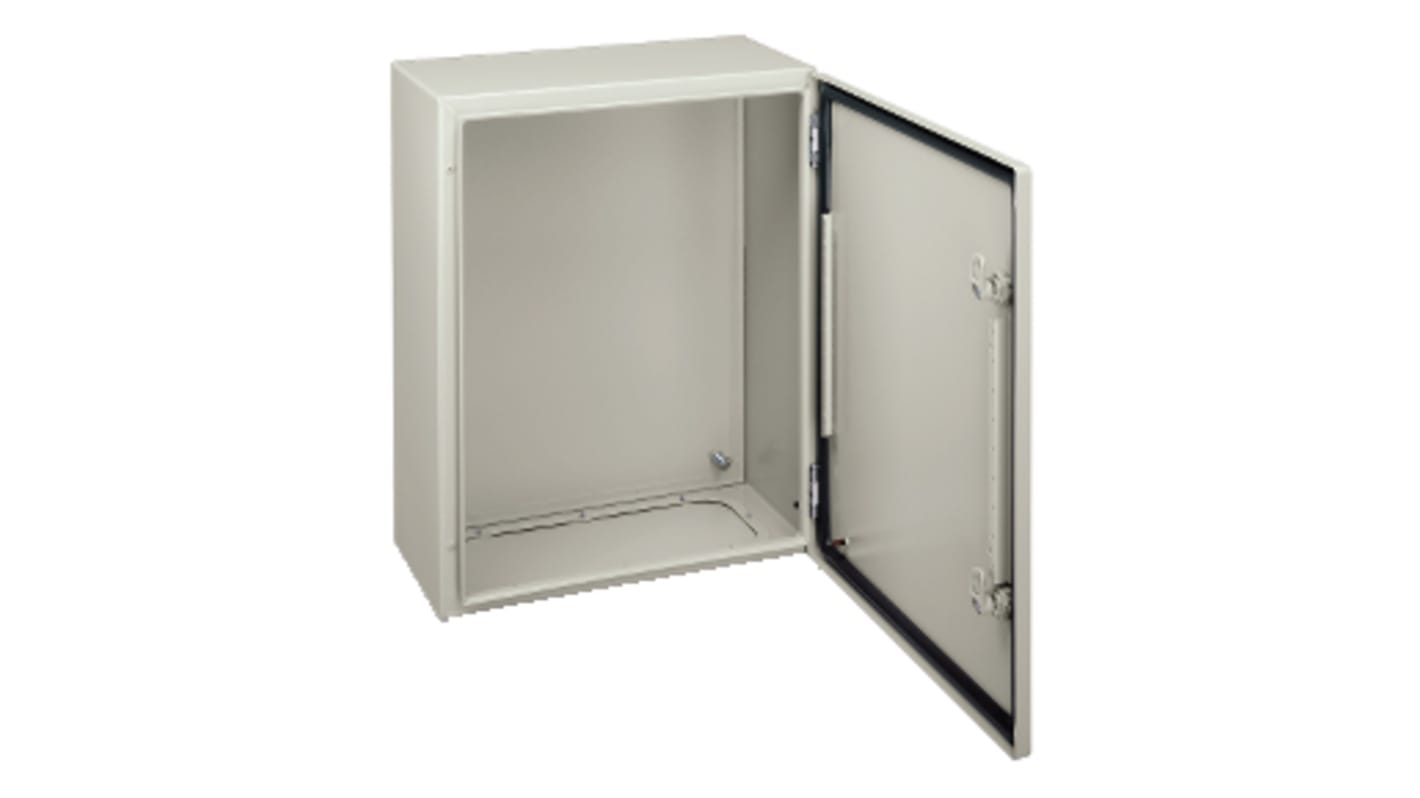

The Schneider Electric Spacial CRN steel wall mounting enclosure has an epoxy-polyester powder finish light grey body. The enclosure also has a polyurethane seal to guarantee water tightness for years.

Features and Benefits

• Doors open within its own width and can be mounted left or right-handed (full opening 120°)
• IP66 protection meaning the enclosure is dust tight and protects against powerful jets of water and heavy seas
• IK10 protected against a 5kg object dropped from 20cm
• Welded studs for earth welded on door and body
• Complete with gland plate & lock

Typical Applications

3 Point lock.

Double door models available (IP 55).

The 1864748 wall box is ideal for using within industrial automation and industrial control and electrical distribution applications.

What are the external dimensions?

Plain, Silk-screen, micro-perforated, Telequick perforated, Symmetrical, Steel cable gland plate, Insulated cable gland plate (with knockouts), Cable gland plate will receive membranes.

The compact wall box 1864748 has external dimensions of 200 x 300 x 150 mm.

What type of lock does it have?

Industrial automation, Industrial control (plain chassis, micro-perforated chassis, perforated chassis).

Electrical distribution (modular chassis, steel and insulated – 24 to 234 modules).

Electronics and Industrial networks (18 inch fixed or swing frame).

The enclosure has a 3mm double-bar lock.

What is supplied?

Compact enclosure.

Wall mounting.

Plain front door, reversible 120°.

Mounting plate NOT supplied.

Sides made from a single folded section Back welded with double profile forming a protected sealed area.

3 mm double-bar lock.

Standard gland plate.

Hinges and cable gland plate removable.

Body made from steel.

Epoxy-polyester powder finish, Grey RAL 7035.

IP66 conforming to IEC 60529.

IK10 conforming to IEC 62262

Single piece body, Plain front face door and a 3mm double-bar lock.

What is supplied?

Cable gland plate 2 top and bottom, Lock 1, Door 1, Body 1.

Approvals

CU, UL.

Standards

IEC 62208

Attribute	Value
External Height	200 mm
External Width	300 mm
External Depth	150mm
Body Material	Steel
Transparent Door	No
IP Rating	IP66
Chassis Plate	No
Door Lock Type	Double Bar
Gland Plate	Yes
Colour	Grey
Series	Spacial CRN
RAL Code	RAL 7035
Better World Verification	Green Premium
External Mounting Type	Bracket
Better World Product	Yes
Special Features	120° Door Opening
Internal Mounting Type	Mounting Bosses
Fixing Kit	No
IK Rating	IK10
