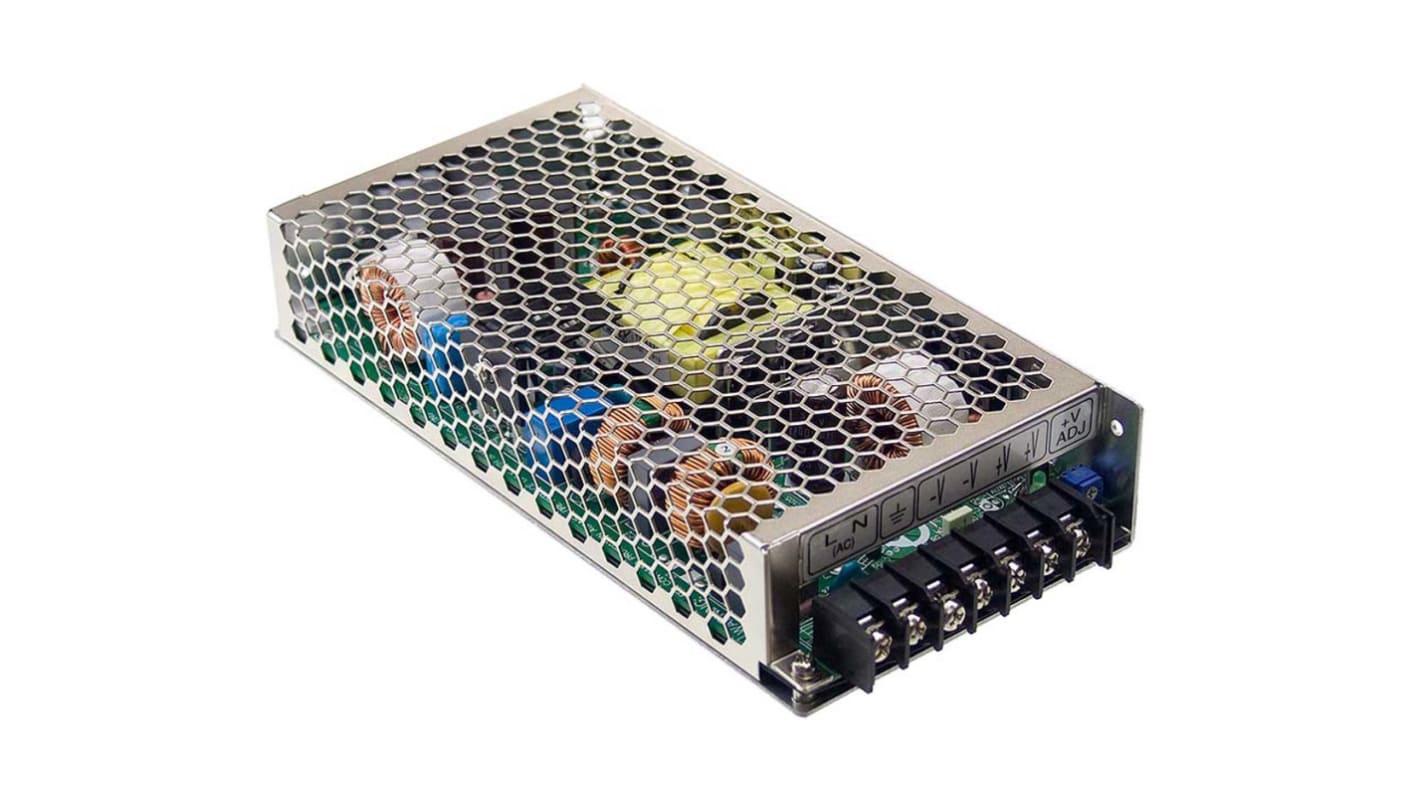

MEAN WELL Switching Power Supply, HRPG-200-36 36V dc, 5.7A, 205 W, Input 85V ac to 370 V dc, 264V ac
- RS Stock No.:
- 721-1698
- Distrelec Article No.:
- 301-34-183
- Mfr. Part No.:
- HRPG-200-36
- Manufacturer:
- MEAN WELL
Bulk discount available
Subtotal (1 unit)*
SGD103.35
(exc. GST)
SGD112.65
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | SGD103.35 |
| 10 - 49 | SGD101.17 |
| 50 + | SGD98.14 |
*price indicative
- RS Stock No.:
- 721-1698
- Distrelec Article No.:
- 301-34-183
- Mfr. Part No.:
- HRPG-200-36
- Manufacturer:
- MEAN WELL
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 36V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 205W | |
| Minimum Operating Temperature | -40°C | |
| SMPS Output Current | 5.7A | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | EAC TP TC 004, UL 6681, ASNZS 668.1, TUV BS ENEN 6681 | |
| Width | 38mm | |
| Depth | 38mm | |
| Length | 199mm | |
| Weight | 770g | |
| Maximum Input Voltage | 370, 264V dc | |
| Efficiency | 89% | |
| Series | HRPG-200 | |
| Minimum Input Voltage | 85V ac | |
| Output Current | 5.7A | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 36V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 205W | ||
Minimum Operating Temperature -40°C | ||
SMPS Output Current 5.7A | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals EAC TP TC 004, UL 6681, ASNZS 668.1, TUV BS ENEN 6681 | ||
Width 38mm | ||
Depth 38mm | ||
Length 199mm | ||
Weight 770g | ||
Maximum Input Voltage 370, 264V dc | ||
Efficiency 89% | ||
Series HRPG-200 | ||
Minimum Input Voltage 85V ac | ||
Output Current 5.7A | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- CN
HRPG-200 Series Single Output Power Supply with PFC Function
High efficiency, long life and high reliability
No load power consumption <0.5W
Built-in active PFC function
Built-in constant current limiting circuit
Built-in remote sense function
Built-in remote ON-OFF control
Short circuit, over load, over voltage and over temperature protection
Withstands 300Vac surge input for 5 seconds
1U low profile 38mm
Power factor correction to EN61000-3-2,-3
EMC compliance to EN55022 class B
Note
Power derates above 40°C.
MTBF to MIL-HDBK-217F.
MTBF to MIL-HDBK-217F.
Approvals
UL/cUL recognised, TUV, CB
Standards
UL60950-1, TUV EN60950-1
