MPN

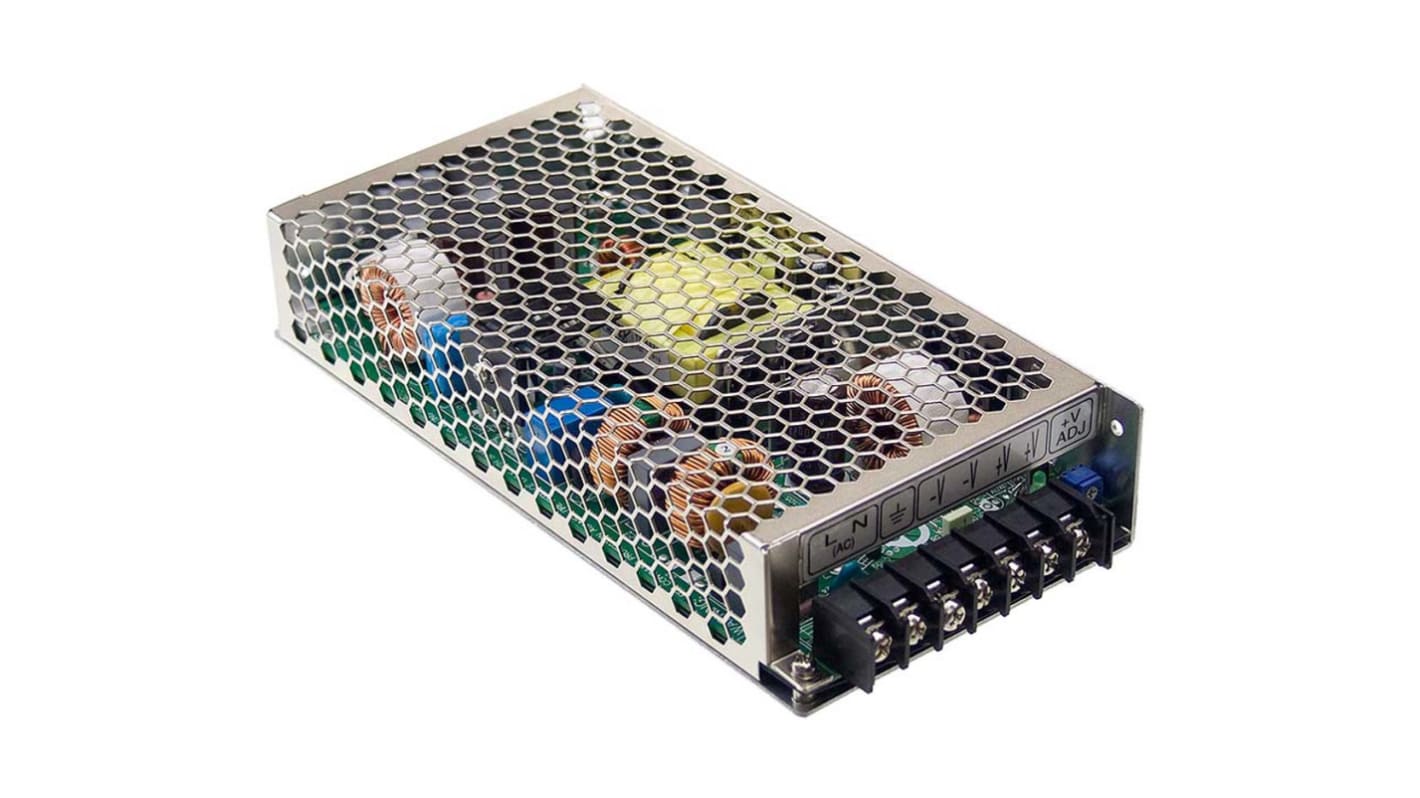

MEAN WELL Switching Power Supply, HRPG-200-15 15V dc, 13.4A, 201 W, Input 85V ac to 370 V dc, 264V ac

RS Stock No.:: 721-1686
Mfr. Part No.:: HRPG-200-15
Manufacturer:: MEAN WELL

MEAN WELL Switching Power Supply, HRPG-200-15 15V dc, 13.4A, 201 W, Input 85V ac to 370 V dc, 264V ac

Bulk discount available

View bulk pricing options

Subtotal (1 unit)*

SGD111.55

(exc. GST)

SGD121.59

(inc. GST)

FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28

Temporarily out of stock

Shipping from 27 November 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	SGD111.55
10 - 49	SGD109.32
50 +	SGD107.14

*price indicative

RS Stock No.:: 721-1686
Mfr. Part No.:: HRPG-200-15
Manufacturer:: MEAN WELL

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	MEAN WELL
	Product Type	Switching Power Supply
	Maximum Output Voltage	15V dc
	Number of Outputs	1
	Mount Type	Chassis
	Power	201W
	SMPS Output Current	13.4A
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	70°C
	Length	199mm
	Depth	38mm
	Weight	770g
	Width	98mm
	Standards/Approvals	ASNZS 668.1, EAC TP TC 004, TUV BS ENEN 6681, UL 6681
	Maximum Input Voltage	370, 264V dc
	Efficiency	88%
	Series	HRPG-200
	Minimum Input Voltage	85V ac
	Output Current	13.4A
	Hazardous Area Certification	No

	Select all
	Brand MEAN WELL
	Product Type Switching Power Supply
	Maximum Output Voltage 15V dc
	Number of Outputs 1
	Mount Type Chassis
	Power 201W
	SMPS Output Current 13.4A
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 70°C
	Length 199mm
	Depth 38mm
	Weight 770g
	Width 98mm
	Standards/Approvals ASNZS 668.1, EAC TP TC 004, TUV BS ENEN 6681, UL 6681
	Maximum Input Voltage 370, 264V dc
	Efficiency 88%
	Series HRPG-200
	Minimum Input Voltage 85V ac
	Output Current 13.4A
	Hazardous Area Certification No

COO (Country of Origin):: TW

HRPG-200 Series Single Output Power Supply with PFC Function

High efficiency, long life and high reliability

No load power consumption <0.5W

Built-in active PFC function

Built-in constant current limiting circuit

Built-in remote sense function

Built-in remote ON-OFF control

Short circuit, over load, over voltage and over temperature protection

Withstands 300Vac surge input for 5 seconds

1U low profile 38mm

Power factor correction to EN61000-3-2,-3

EMC compliance to EN55022 class B

Note

Power derates above 40°C.
MTBF to MIL-HDBK-217F.

Approvals

UL/cUL recognised, TUV, CB

Standards

UL60950-1, TUV EN60950-1
