Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	MEAN WELL
	Output Voltage	36V dc
	Output Current	4.3A
	Power Rating	154.8W
	Number of Outputs	1
	Input Voltage	120 → 370 V dc, 85 → 264 V ac
	Mounting Type	Chassis Mount
	Package Type	Enclosed
	Length	159mm
	Width	97mm
	Depth	38mm
	Efficiency	88%
	Weight	630g
	Maximum Temperature	+70°C
	Minimum Temperature	-30°C

	Select all
	Brand MEAN WELL
	Output Voltage 36V dc
	Output Current 4.3A
	Power Rating 154.8W
	Number of Outputs 1
	Input Voltage 120 → 370 V dc, 85 → 264 V ac
	Mounting Type Chassis Mount
	Package Type Enclosed
	Length 159mm
	Width 97mm
	Depth 38mm
	Efficiency 88%
	Weight 630g
	Maximum Temperature +70°C
	Minimum Temperature -30°C

HRPG-150 Series Single Output Power Supply with PFC Function

High efficiency, long life and high reliability
No load power consumption <0.5W
Built-in active PFC function
Built-in constant current limiting circuit
Built-in remote sense function
Built-in remote ON-OFF control
Short circuit, over load, over voltage and over temperature protection
Withstands 300Vac surge input for 5 seconds
1U low profile 38mm
Power factor correction to EN61000-3-2,-3
EMC compliance to EN55022 class B

Note

Power derates above 40°C.
MTBF to MIL-HDBK-217F.

Standards

UL60950-1, TUV EN60950-1

Approvals

UL/cUL recognised, TUV, CB

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Note

Available on EPLAN.

Units	Per unit
1 - 9	SGD97.05
10 - 49	SGD95.37
50 +	SGD92.95

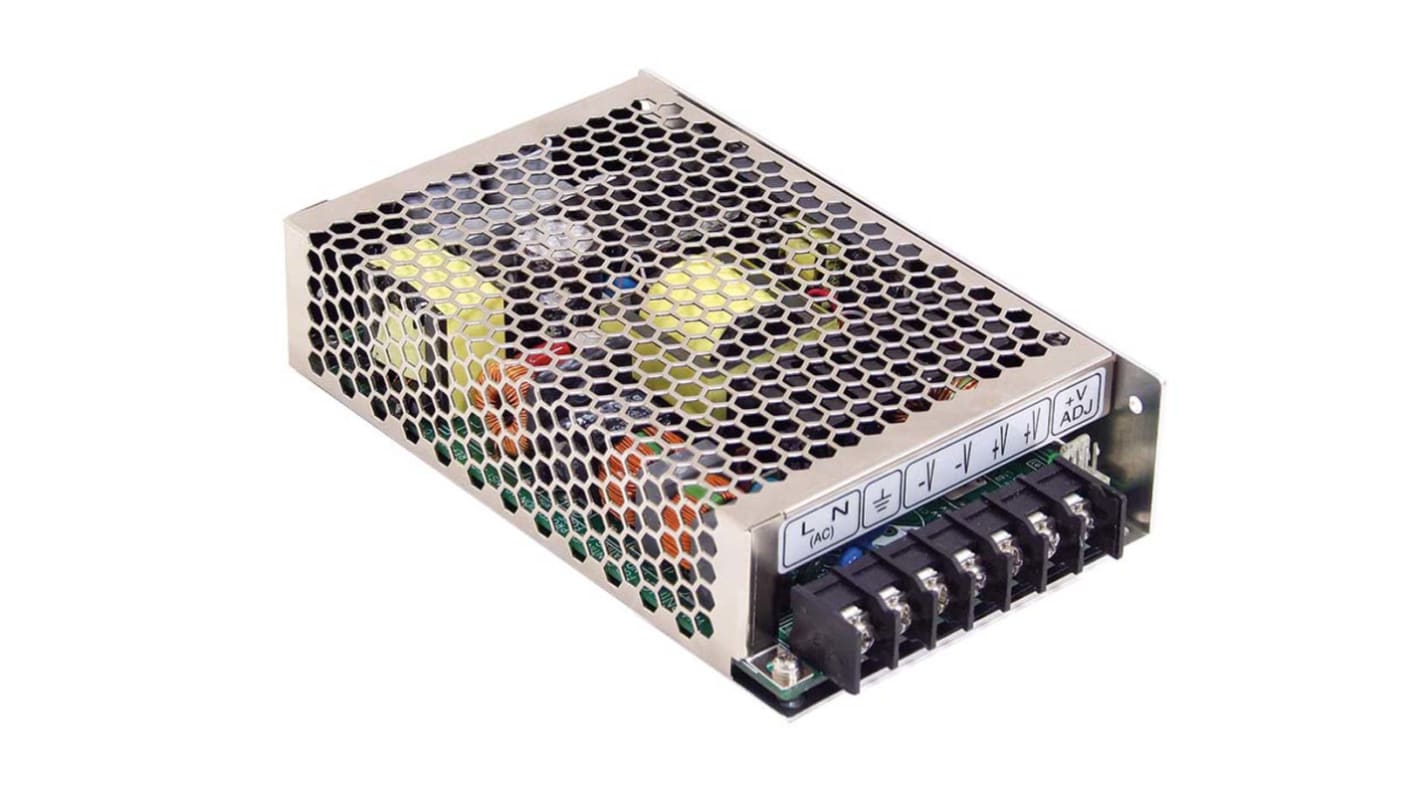

MEAN WELL Switching Power Supply, HRPG-150-36, 36V dc, 4.3A, 154.8W, 1 Output, 120 → 370 V dc, 85 → 264 V
