Celduc SO8 Series Solid State Relay, 95 A Load, DIN Rail Mount, 510 Vrms Load, 265V Control

RS Stock No.:: 499-0682
Mfr. Part No.:: SO868970
Manufacturer:: Celduc

Celduc SO8 Series Solid State Relay, 95 A Load, DIN Rail Mount, 510 Vrms Load, 265V Control

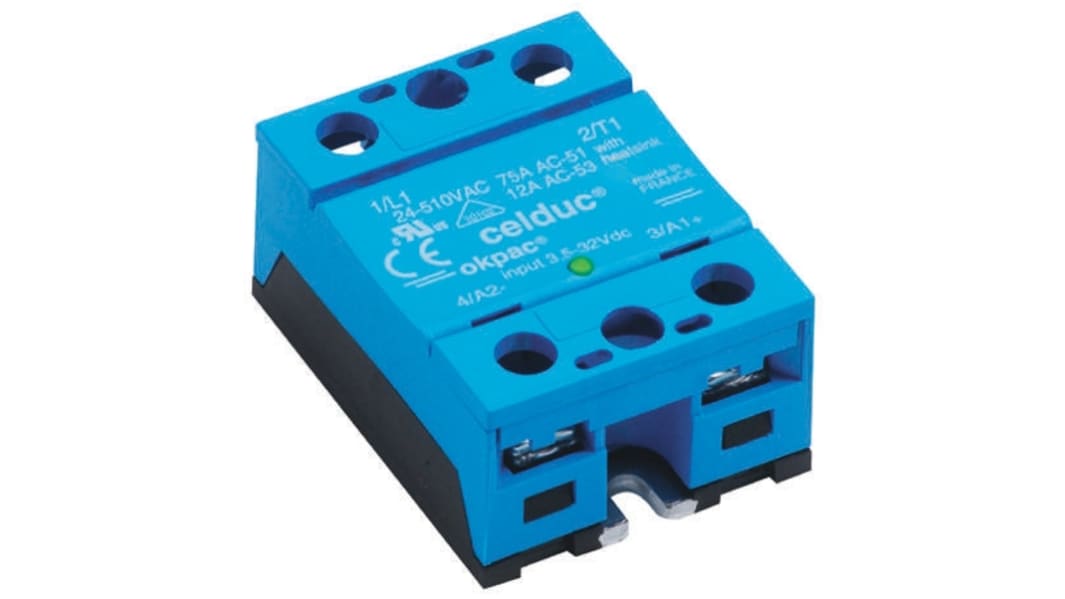

This image is representative of the product range

Bulk discount available

Subtotal (1 unit)*

SGD182.06

(exc. GST)

SGD198.45

(inc. GST)

FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28

In Stock

10 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	SGD182.06
5 - 9	SGD178.23
10 +	SGD172.87

*price indicative

RS Stock No.:: 499-0682
Mfr. Part No.:: SO868970
Manufacturer:: Celduc

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Celduc
	Product Type	Solid State Relay
	Maximum Load Current	95A
	Mount Type	DIN Rail
	Maximum Load Voltage	510Vrms
	Minimum Load Voltage	24V ac
	Maximum Control Voltage	265V
	Minimum Control Voltage	20V ac/dc
	Series	SO8
	Terminal Type	Screw
	IP Rating	IP20
	Contact Configuration	SPST
	Switching Function	Zero Cross Switching
	On State Resistance	16mΩ
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	100°C
	Width	44.8 mm
	Height	30mm
	Standards/Approvals	UKCA, VDE, RoHS, EAC, cURus, CSA, CE
	Length	58.5mm
	Off State Leakage Current	1mA
	Output Type	Triac

	Select all
	Brand Celduc
	Product Type Solid State Relay
	Maximum Load Current 95A
	Mount Type DIN Rail
	Maximum Load Voltage 510Vrms
	Minimum Load Voltage 24V ac
	Maximum Control Voltage 265V
	Minimum Control Voltage 20V ac/dc
	Series SO8
	Terminal Type Screw
	IP Rating IP20
	Contact Configuration SPST
	Switching Function Zero Cross Switching
	On State Resistance 16mΩ
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 100°C
	Width 44.8 mm
	Height 30mm
	Standards/Approvals UKCA, VDE, RoHS, EAC, cURus, CSA, CE
	Length 58.5mm
	Off State Leakage Current 1mA
	Output Type Triac

Datasheet - SO868970

COO (Country of Origin):: FR

Single-phase solid state relays, SO8 series

Synchronous solid state relay suited to most loads.

Voltage protection for input (transil) as well as output (VDR) for high immunity to interference.

Wide control range: 3 → 32 Vdc with regulated control current.

Green LED input display.

Solid state relays must be mounted on a heatsink.

Instantaneous Switching

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Standards

EN60947-4-3 and EN60950
