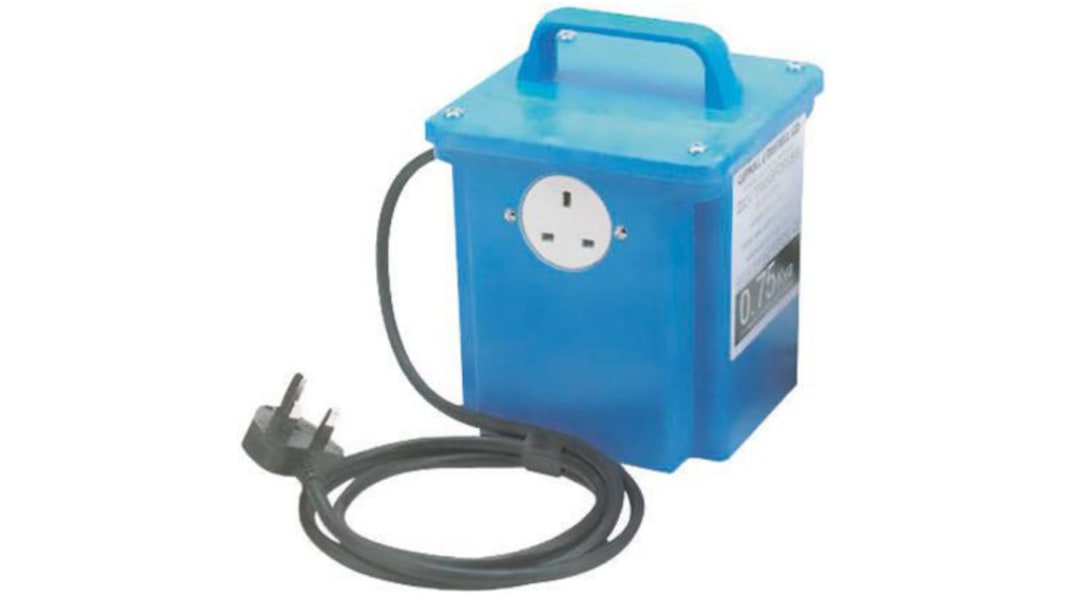

Name: Carroll & Meynell Single Phase 3kVA Site Transformer, 230V ac Primary, 230V ac Secondary, 13A O/P
Brand: Carroll & Meynell
SKU: 436-8805
Price: 603.05 SGD
Availability: InStock

Single Phase 230V ac Input, 230V ac Output

Brought to you by Carroll & Meynell, this selection of rugged portable isolating Transformers are designed to ensure an isolated supply when working on equipment connected to the mains supply. With a resettable thermal cut out in the primary circuit to prevent overload, these high quality single phase transformers are ideal for test/service engineers.

Features and Benefits:
• Double wound
• 230V secondaries
• All insulated blue GRP or sheet steel enclosure
• Thermal safety overload fuse embedded into primary windings
• Approx. 2m mains cable fitted with 13A plug
• High quality manufactured and tested in accordance with BSEN 61558-2-23

This selection of Portable Safety Isolating Transformers includes:

• Stock number 260-4238 is a 750VA Transformer
• Stock number 436-8827 is a 1.2kVA Transformer
• Stock number 436-8798 is a 1.5kVA Transformer
• Stock number 436-8805 is a 3kVA Transformer

Units	Per unit
1 - 4	SGD553.26
5 +	SGD455.32

Select all	Attribute	Value
	Brand	Carroll & Meynell
	Primary Voltage Rating	230V ac
	Secondary Voltage Rating	230V ac
	Power Rating	3kVA
	Number of Phases	1
	Output Current	13A
	Series	CM3000/230
	Plug Type	Type G - British 3-Pin
	Socket Type	Type G - British 3-Pin
	Weight	18kg
	Length	190mm
	Width	190mm
	Depth	260mm
	Dimensions	190 x 190 x 260mm
	Mounting Type	Free Standing
	Maximum Operating Frequency	60Hz
	Minimum Operating Frequency	50Hz

	Select all
	Brand Carroll & Meynell
	Primary Voltage Rating 230V ac
	Secondary Voltage Rating 230V ac
	Power Rating 3kVA
	Number of Phases 1
	Output Current 13A
	Series CM3000/230
	Plug Type Type G - British 3-Pin
	Socket Type Type G - British 3-Pin
	Weight 18kg
	Length 190mm
	Width 190mm
	Depth 260mm
	Dimensions 190 x 190 x 260mm
	Mounting Type Free Standing
	Maximum Operating Frequency 60Hz
	Minimum Operating Frequency 50Hz
