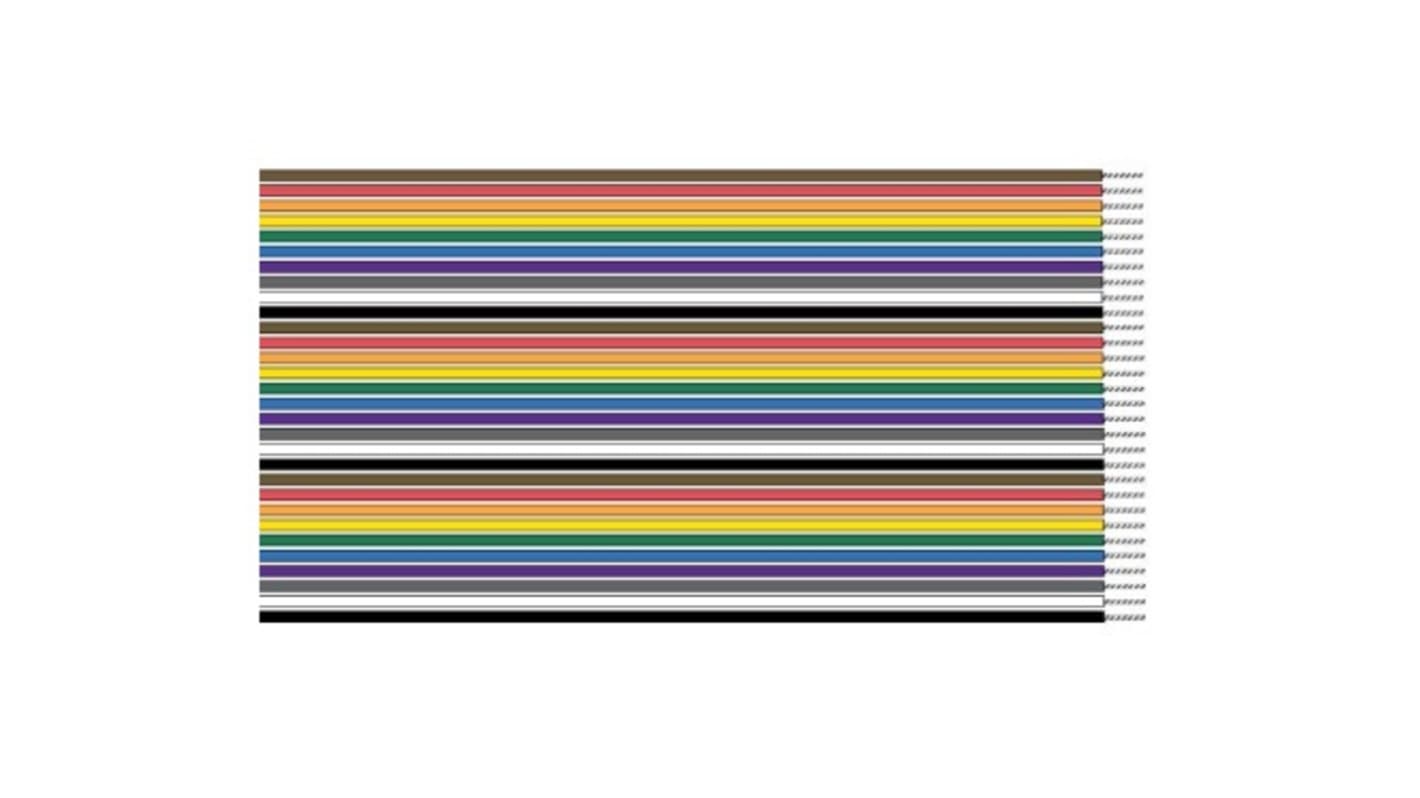

Alpha Wire 3541/7 Series Ribbon Cable, 3541/7, 15, 100 ft Length
- RS Stock No.:
- 290-752
- Mfr. Part No.:
- 3541/7 MC005
- Manufacturer:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
SGD731.91
(exc. GST)
SGD797.78
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
Temporarily out of stock
- Shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | SGD731.91 | SGD24.397 |
*price indicative
- RS Stock No.:
- 290-752
- Mfr. Part No.:
- 3541/7 MC005
- Manufacturer:
- Alpha Wire
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Product Type | Ribbon Cable | |
| Cable Type | 3541/7 | |
| Voltage | 600 Vrms | |
| American Wire Gauge | 24AWG | |
| Conductor Type | 15 x 1 Conductors | |
| Series | 3541/7 | |
| Jacket Material | Polyvinyl Chloride | |
| Cable Length | 100ft | |
| Standards/Approvals | MIL-DTL-16878/1, UL AWM/STYLE 2713 | |
| Conductor Material | Tetron Cotton | |
| Maximum Operating Temperature | 105°C | |
| Fire Behaviour | VW-1 | |
| Number of Conductors | 15 | |
| Minimum Operating Temperature | -55°C | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Product Type Ribbon Cable | ||
Cable Type 3541/7 | ||
Voltage 600 Vrms | ||
American Wire Gauge 24AWG | ||
Conductor Type 15 x 1 Conductors | ||
Series 3541/7 | ||
Jacket Material Polyvinyl Chloride | ||
Cable Length 100ft | ||
Standards/Approvals MIL-DTL-16878/1, UL AWM/STYLE 2713 | ||
Conductor Material Tetron Cotton | ||
Maximum Operating Temperature 105°C | ||
Fire Behaviour VW-1 | ||
Number of Conductors 15 | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- US
Rupali
The Alpha Wire Ribbon Cable supports a bend radius of 10 times the cable diameter and a maximum pull tension of 53 lbs. Its electrical properties include a 600 VRMS voltage rating. This ribbon cable facilitate easier routing and termination, taking up less space than wire harness bundles. These cables are designed to safely carry more current than round harnesses of similar wire gauges and are easy to separate and route within circuit.
RoHS compliance
Suitable for military application as per MIL-DTL-16878/1
