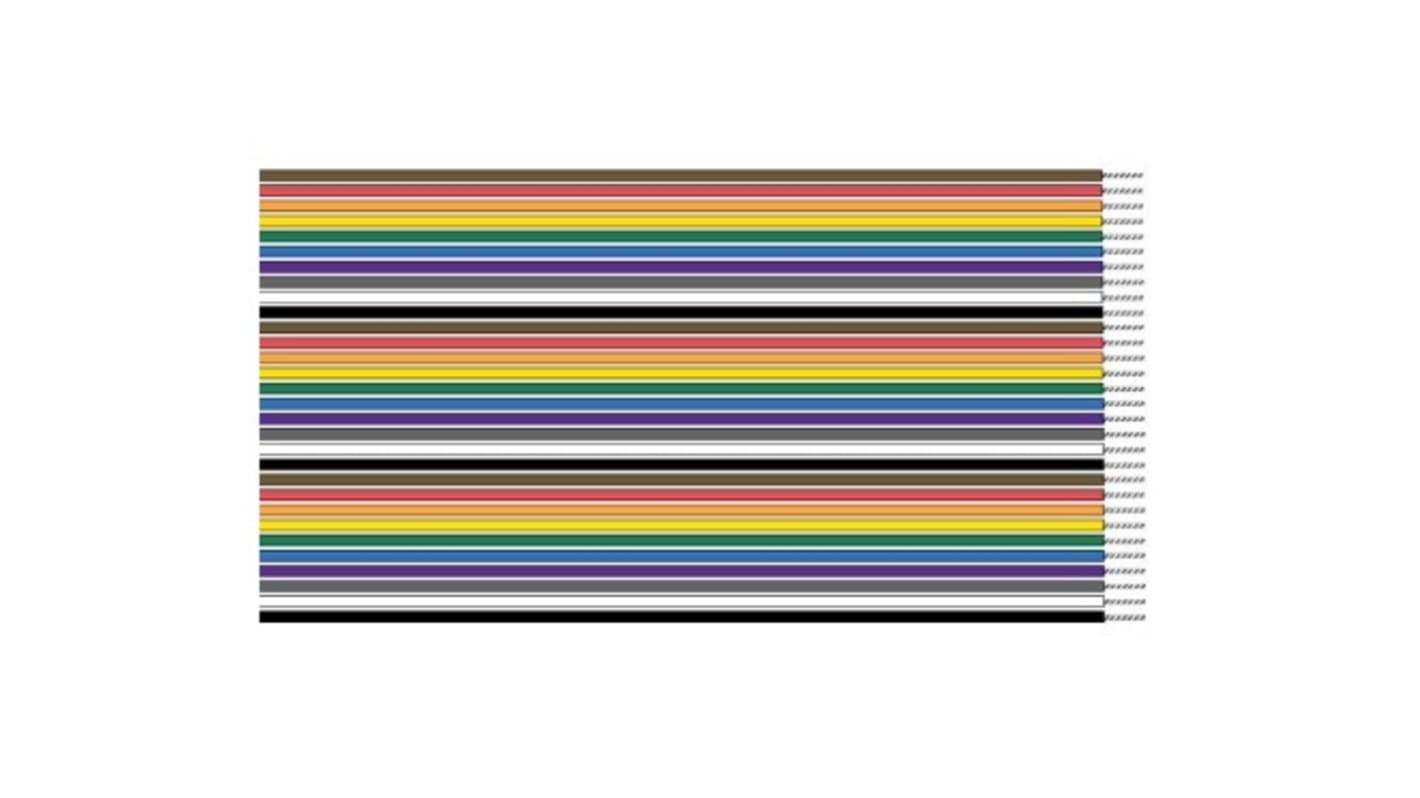

Alpha Wire 3532/7 Series Ribbon Cable, 20, 100 ft Length
- RS Stock No.:
- 290-750
- Mfr. Part No.:
- 3532/7 MC005
- Manufacturer:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
SGD804.80
(exc. GST)
SGD877.23
(inc. GST)
Stock information currently inaccessible - Please check back later
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | SGD804.80 | SGD26.827 |
*price indicative
- RS Stock No.:
- 290-750
- Mfr. Part No.:
- 3532/7 MC005
- Manufacturer:
- Alpha Wire
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Product Type | Ribbon Cable | |
| Voltage | 600Vrms | |
| American Wire Gauge | 22AWG | |
| Number of Conductors | 20 | |
| Jacket Material | Polyvinyl Chloride | |
| Series | 3532/7 | |
| Cable Length | 100ft | |
| Standards/Approvals | California Proposition 65, UL AWM/STYLE 2713, REACH Regulation (EC 1907/2006), EU Directive 2011/65/EU(RoHS2), MIL-DTL-16878/1 (Type B) | |
| Minimum Operating Temperature | -55°C | |
| Conductor Material | Tetron Cotton | |
| Fire Behaviour | VW-1 | |
| Maximum Operating Temperature | 105°C | |
| Core Strands | 7 | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Product Type Ribbon Cable | ||
Voltage 600Vrms | ||
American Wire Gauge 22AWG | ||
Number of Conductors 20 | ||
Jacket Material Polyvinyl Chloride | ||
Series 3532/7 | ||
Cable Length 100ft | ||
Standards/Approvals California Proposition 65, UL AWM/STYLE 2713, REACH Regulation (EC 1907/2006), EU Directive 2011/65/EU(RoHS2), MIL-DTL-16878/1 (Type B) | ||
Minimum Operating Temperature -55°C | ||
Conductor Material Tetron Cotton | ||
Fire Behaviour VW-1 | ||
Maximum Operating Temperature 105°C | ||
Core Strands 7 | ||
Rupali
The Alpha Wire Ribbon Cable supports a bend radius of 10 times the cable diameter and a maximum pull tension of 110 lbs. Its electrical properties include a 600 VRMS voltage rating. This ribbon cable facilitate easier routing and termination, taking up less space than wire harness bundles. These cables are designed to safely carry more current than round harnesses of similar wire gauges and are easy to separate and route within circuit.
RoHS compliance
Suitable for military application as per MIL-DTL-16878/1
