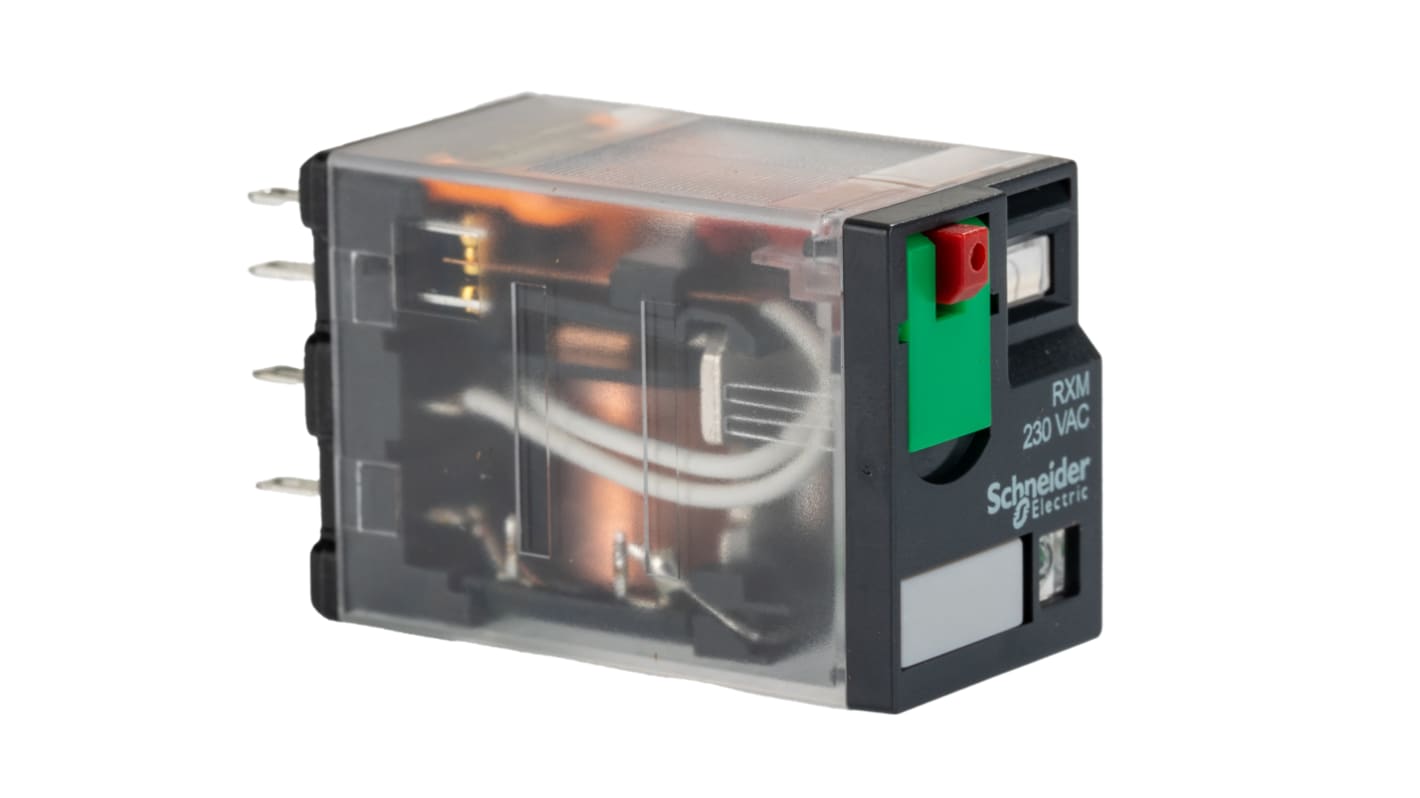

    Schneider Electric Plug In Power Relay, 230V ac Coil, 8A Switching Current, 4PDT

    RS Stock No.:
    884-1304
    Mfr. Part No.:
    RXM4AB2P7
    Manufacturer:
    Schneider Electric
    Schneider Electric
    View all Power Relays
    31 In SG stock for delivery within 1 working day(s) when ordered before 3.30 pm.
    257 In Global stock for delivery within 4 working day(s)
    Add to Basket
    units

    Added

    Price Each

    SGD17.95

    (exc. GST)

    SGD19.21

    (inc. GST)

    unitsPer unit
    1 +SGD17.95
    RS Stock No.:
    884-1304
    Mfr. Part No.:
    RXM4AB2P7
    Manufacturer:
    Schneider Electric

    Technical data sheets


    Legislation and Compliance


    Product Details

    RXM Series Miniature Relays with LED


    The compact Zelio RXM miniature relays with LED from Schneider Electric can be used to increase the functions in electrical enclosures, particularly useful for industrial applications, machine/building equipment and HVAC.


    Features & Benefits


    Range of miniature plug-in relays on base, RXZE2 type
    Simple to use- no adjustment required for standard applcations
    Easily integrated into current devices & can be adapted for all voltages
    Test button and mechanical indicator of relay status
    Bases for assembly on DIN rail or with screws to be ordered separately


    What is a non-latching relay and how do they work?


    A relay is an electrical switch that is operated by electrical pulses, their primary function is to open and close a circuit. When power passes through a circuit, a relay switches position (usually from NC to NO) using an internal coil which generates a magnetic force. This force then holds the relay in a NO position, when the current is switched off the relay returns to the NC position. This function is what makes these non-latching relays perfect for push-button applications such as keyboards and micro-controller input buttons.



    Specifications

    AttributeValue
    Coil Voltage230V ac
    Contact Configuration4PDT
    Mounting TypePlug In
    Switching Current8A
    Number of Poles4
    LatchingNo
    Terminal TypePlug In
    Coil Resistance15000Ω
    Coil Power1.2W
    Maximum Switching Voltage AC250V
    Length21mm
    Height27mm
    Standards MetCE, CSA, EN/IEC, GOST, Lloyd's, REACH, RoHS Compliant, UL
    Depth47.7mm
    Maximum Switching Power DC168 W
    Maximum Switching Power AC1.5 kVA
