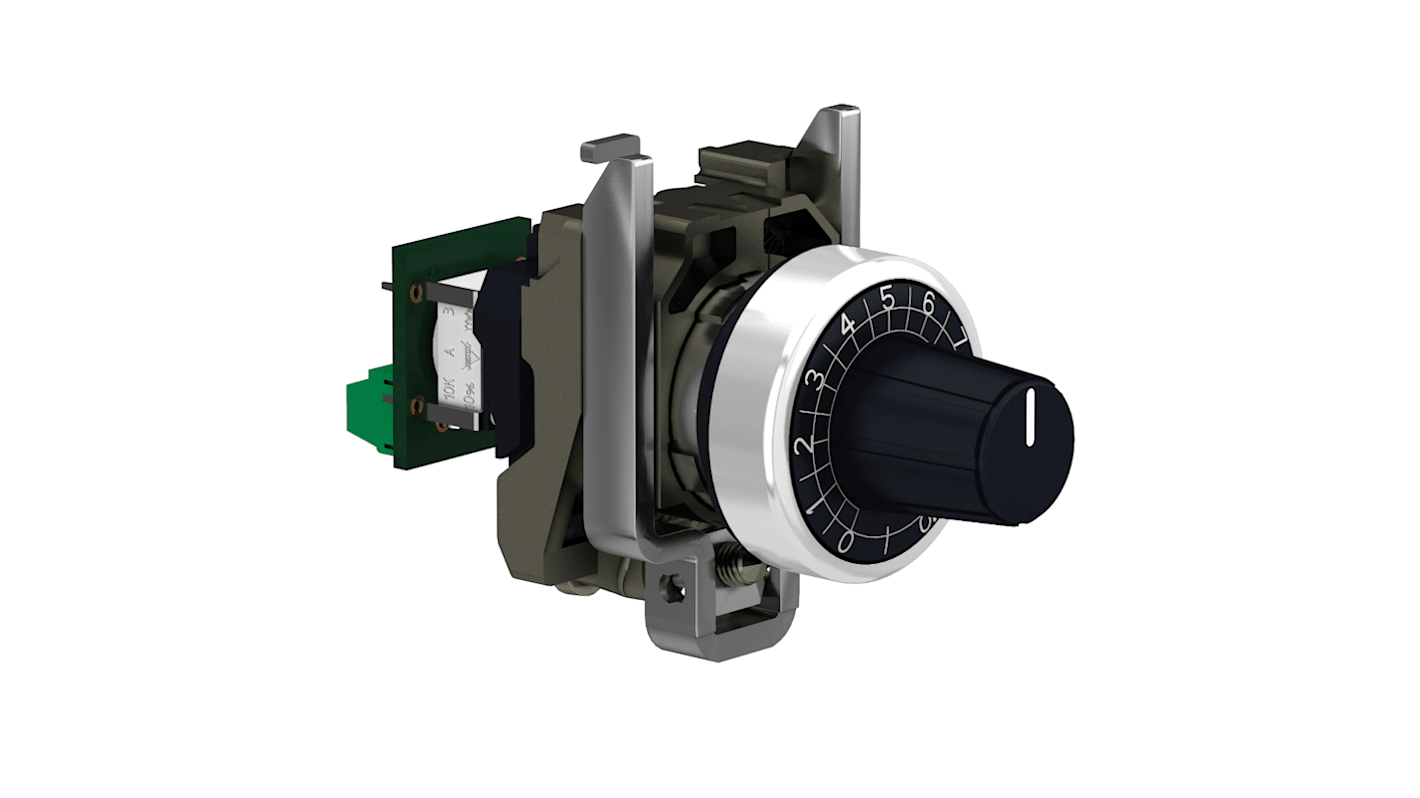

Schneider Electric Harmony XB4 10 kΩ Rotary Potentiometer 1-Gang Panel Mount, XB4BD912R10K

RS Stock No.:: 125-4400
Distrelec Article No.:: 301-53-503
Mfr. Part No.:: XB4BD912R10K
Manufacturer:: Schneider Electric

Schneider Electric Harmony XB4 10 kΩ Rotary Potentiometer 1-Gang Panel Mount, XB4BD912R10K

Subtotal (1 unit)*

SGD117.63

(exc. GST)

SGD128.22

(inc. GST)

FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28

Stocked by manufacturer

Ready to ship from 25 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	SGD117.63

*price indicative

Our Better World range features products that make it easy for you to make a greener product choice you can trust.

Learn more about RS Better World products

RS Stock No.:: 125-4400
Distrelec Article No.:: 301-53-503
Mfr. Part No.:: XB4BD912R10K
Manufacturer:: Schneider Electric

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Product Type	Potentiometer
	Potentiometer Type	Rotary
	Maximum Resistance	10kΩ
	Number of Gangs	1
	Shaft Diameter	6mm
	Power Rating	1W
	Electrical Taper	Linear
	Element Material	Cermet
	Mount Type	Panel Mount
	Shaft Length	30.2mm
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	70°C
	Standards/Approvals	RoHS
	Length	81.39mm
	Tolerance ±	10%
	Better World Claim	Repairable by the End User
	Actuator Type	Knurled Shaft
	Series	Harmony XB4
	Better World Product	Yes
	Mounting Hole Diameter	22 mm

	Select all
	Brand Schneider Electric
	Product Type Potentiometer
	Potentiometer Type Rotary
	Maximum Resistance 10kΩ
	Number of Gangs 1
	Shaft Diameter 6mm
	Power Rating 1W
	Electrical Taper Linear
	Element Material Cermet
	Mount Type Panel Mount
	Shaft Length 30.2mm
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 70°C
	Standards/Approvals RoHS
	Length 81.39mm
	Tolerance ± 10%
	Better World Claim Repairable by the End User
	Actuator Type Knurled Shaft
	Series Harmony XB4
	Better World Product Yes
	Mounting Hole Diameter 22 mm

COO (Country of Origin):: FR

Schneider Electric XB4 Series Potentiometer, 10 kΩ Maximum Resistance, 1 W Power Rating - XB4BD912R10K

This potentiometer is a versatile rotary component designed for panel mounting applications. With a maximum resistance of 10 kΩ and a linear electrical taper, it is a reliable choice for a range of electrical and mechanical tasks. Its construction features a Cermet element, ensuring durability and precision in performance.

Features & Benefits

• Designed for panel mounting with a 22mm diameter

• Durable construction that withstands up to 50,000 cycles

• Offers a precise linear electrical taper for accurate control

• Knurled shaft design provides enhanced grip for adjustments

• Faston termination style allows for easy installation

• IP66 and IP69K rated for superior dust and water resistance

Applications

• Used in control requiring precise resistance adjustments

• Ideal for integration into automation systems for feedback management

• Suitable for electronic devices needing reliable performance under varied conditions

• Employed in industrial control panels for robust operation

What is the operating temperature range for this component?

The component operates effectively in temperatures between -40°C and 70°C, making it suitable for extreme environmental conditions.

How does the linear electrical taper affect performance?

A linear electrical taper ensures that the resistance changes uniformly in relation to the rotation, facilitating consistent and predictable control for users.

What type of electrical connections can be used?

It features Faston and plug-in connector options, enabling quick and secure electrical connections to simplify installation processes.

How resistant is this component to environmental factors?

It is designed to meet stringent protection ratings, including IP66 and IP69K, ensuring it remains operational even when exposed to water jets and dust ingress.

How long can this potentiometer be used before it requires replacement?

With a mechanical durability of up to 50,000 cycles, this potentiometer is built for longevity in demanding applications, minimising maintenance needs.
