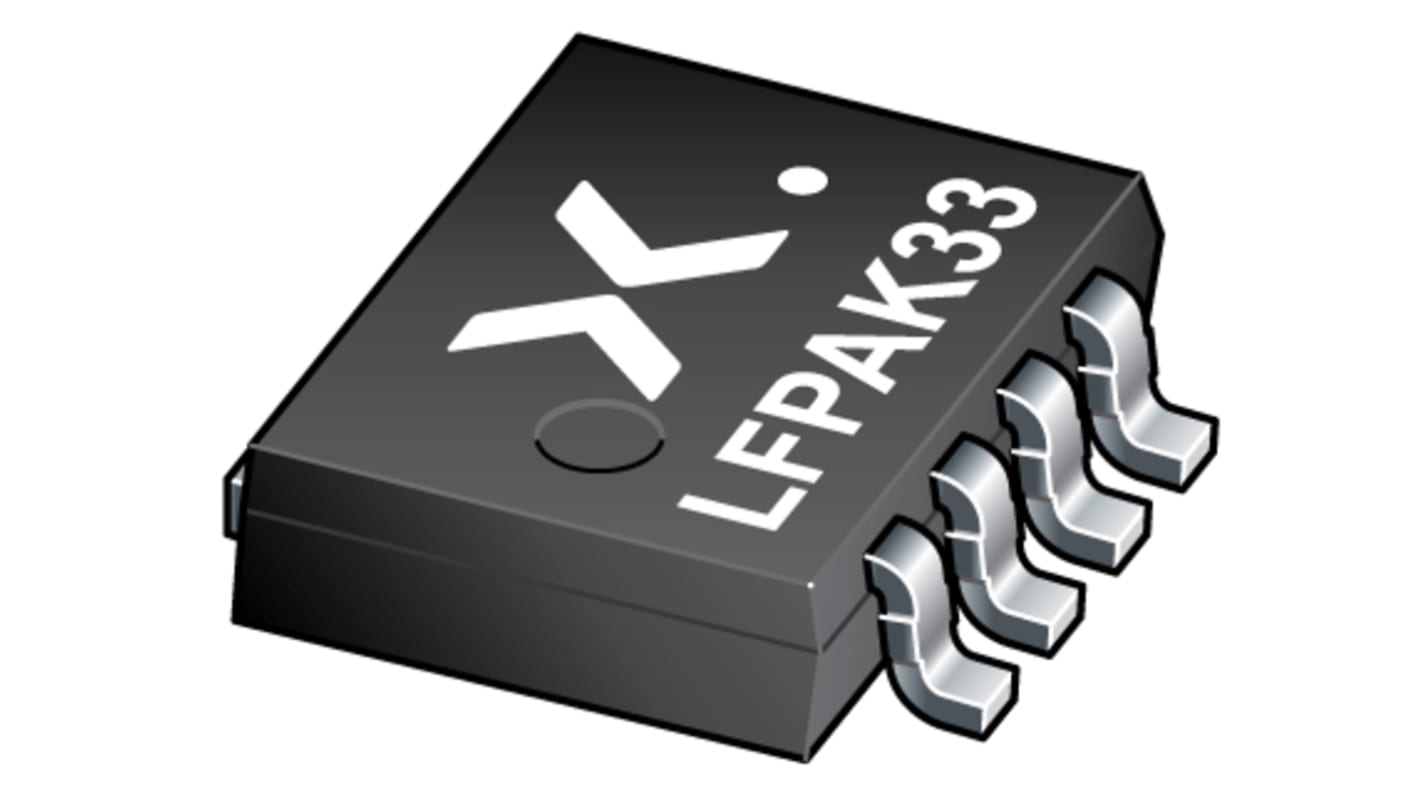

N-Channel MOSFET, 30 A, 40 V, 4-Pin LFPAK33 Nexperia BUK9M24-40EX
- RS Stock No.:
- 152-7165
- Mfr. Part No.:
- BUK9M24-40EX
- Manufacturer:
- Nexperia
Bulk discount available
Subtotal (1 reel of 1500 units)**
SGD627.00
(exc. GST)
SGD684.00
(inc. GST)
Stock check temporarily unavailable - call for stock availability
FREE delivery for orders over SGD250.00 (ex GST)
Units | Per unit | Per Reel** |
|---|---|---|
| 1500 - 3000 | SGD0.418 | SGD627.00 |
| 4500 + | SGD0.397 | SGD595.50 |
**price indicative
- RS Stock No.:
- 152-7165
- Mfr. Part No.:
- BUK9M24-40EX
- Manufacturer:
- Nexperia
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Manufacturer | Nexperia | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 30 A | |
| Maximum Drain Source Voltage | 40 V | |
| Package Type | LFPAK33 | |
| Mounting Type | Surface Mount | |
| Pin Count | 4 | |
| Maximum Drain Source Resistance | 50 mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 2.45V | |
| Minimum Gate Threshold Voltage | 0.5V | |
| Maximum Power Dissipation | 44 W | |
| Transistor Configuration | Single | |
| Maximum Gate Source Voltage | 15 V | |
| Number of Elements per Chip | 1 | |
| Width | 2.6mm | |
| Length | 3.4mm | |
| Maximum Operating Temperature | +175 °C | |
| Typical Gate Charge @ Vgs | 3.3 nC @ 10 V | |
| Automotive Standard | AEC-Q101 | |
| Minimum Operating Temperature | -55 °C | |
| Height | 0.9mm | |
Select all | ||
|---|---|---|
Manufacturer Nexperia | ||
Channel Type N | ||
Maximum Continuous Drain Current 30 A | ||
Maximum Drain Source Voltage 40 V | ||
Package Type LFPAK33 | ||
Mounting Type Surface Mount | ||
Pin Count 4 | ||
Maximum Drain Source Resistance 50 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 2.45V | ||
Minimum Gate Threshold Voltage 0.5V | ||
Maximum Power Dissipation 44 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage 15 V | ||
Number of Elements per Chip 1 | ||
Width 2.6mm | ||
Length 3.4mm | ||
Maximum Operating Temperature +175 °C | ||
Typical Gate Charge @ Vgs 3.3 nC @ 10 V | ||
Automotive Standard AEC-Q101 | ||
Minimum Operating Temperature -55 °C | ||
Height 0.9mm | ||
