STMicroelectronics FDmesh Type N-Channel MOSFET, 20 A, 600 V Enhancement, 3-Pin TO-247
- RS Stock No.:
- 103-1996
- Mfr. Part No.:
- STW20NM60FD
- Manufacturer:
- STMicroelectronics

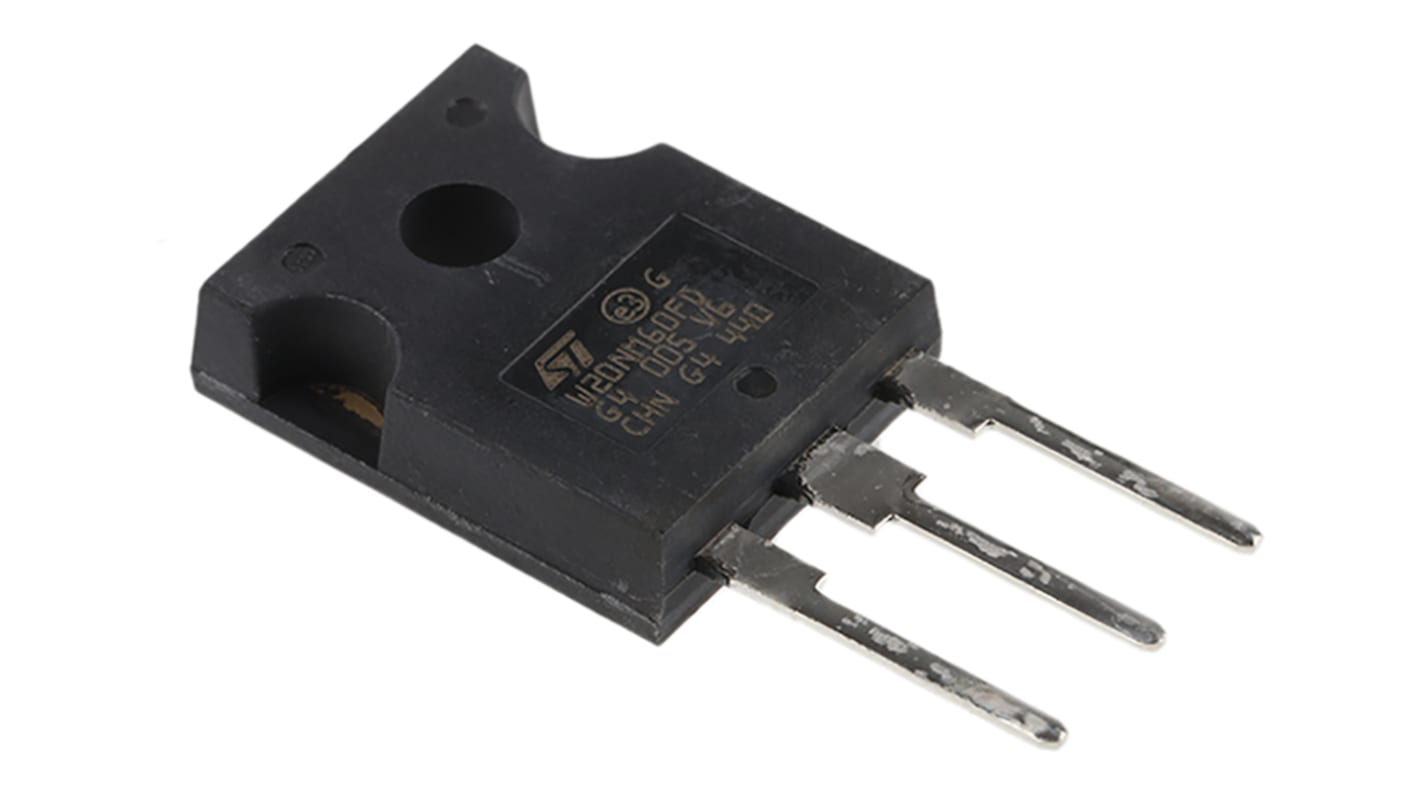

This image is representative of the product range
Bulk discount available
Subtotal (1 tube of 30 units)*
SGD164.04
(exc. GST)
SGD178.80
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
Temporarily out of stock
- 540 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 30 - 60 | SGD5.468 | SGD164.04 |
| 90 - 120 | SGD5.263 | SGD157.89 |
| 150 + | SGD4.934 | SGD148.02 |
*price indicative
- RS Stock No.:
- 103-1996
- Mfr. Part No.:
- STW20NM60FD
- Manufacturer:
- STMicroelectronics
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 20A | |
| Maximum Drain Source Voltage Vds | 600V | |
| Series | FDmesh | |
| Package Type | TO-247 | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 290mΩ | |
| Channel Mode | Enhancement | |
| Maximum Power Dissipation Pd | 214W | |
| Typical Gate Charge Qg @ Vgs | 37nC | |
| Maximum Gate Source Voltage Vgs | 30 V | |
| Minimum Operating Temperature | -65°C | |
| Forward Voltage Vf | 1.5V | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Length | 15.75mm | |
| Width | 5.15 mm | |
| Height | 20.15mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 20A | ||
Maximum Drain Source Voltage Vds 600V | ||
Series FDmesh | ||
Package Type TO-247 | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 290mΩ | ||
Channel Mode Enhancement | ||
Maximum Power Dissipation Pd 214W | ||
Typical Gate Charge Qg @ Vgs 37nC | ||
Maximum Gate Source Voltage Vgs 30 V | ||
Minimum Operating Temperature -65°C | ||
Forward Voltage Vf 1.5V | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Length 15.75mm | ||
Width 5.15 mm | ||
Height 20.15mm | ||
Automotive Standard No | ||
N-Channel FDmesh™ Power MOSFET, STMicroelectronics
MOSFET Transistors, STMicroelectronics
