Broadcom 1.95 V Green, Red LED 0603 Surface Mount HSMF-C16x HSMF-C165
- RS Stock No.:
- 450-991
- Mfr. Part No.:
- HSMF-C165
- Manufacturer:
- Broadcom

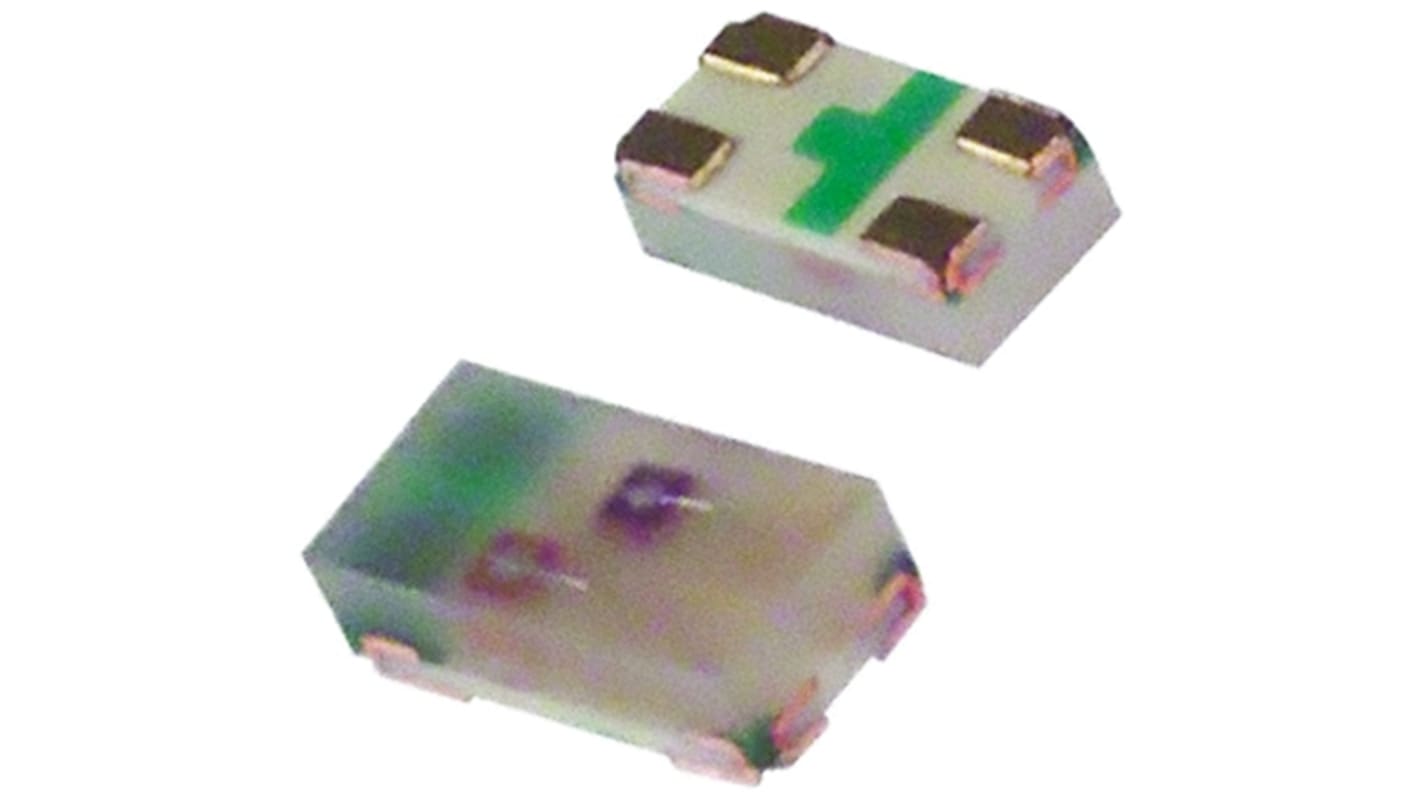

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 20 units)*
SGD11.80
(exc. GST)
SGD12.80
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
Temporarily out of stock
- 39,800 unit(s) shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 20 - 20 | SGD0.59 | SGD11.80 |
| 40 - 80 | SGD0.578 | SGD11.56 |
| 100 - 180 | SGD0.561 | SGD11.22 |
| 200 - 380 | SGD0.544 | SGD10.88 |
| 400 + | SGD0.528 | SGD10.56 |
*price indicative
- RS Stock No.:
- 450-991
- Mfr. Part No.:
- HSMF-C165
- Manufacturer:
- Broadcom
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Product Type | LED | |
| LED Colour | Green, Red | |
| Package Type | 0603 | |
| Maximum Forward Current | 20mA | |
| Mount Type | Surface Mount | |
| Packaging | Tape & Reel | |
| Number of LEDs | 2 | |
| Maximum Power Dissipation | 52mW | |
| Forward Voltage | 1.95V | |
| Number of Pins | 4 | |
| Viewing Angle | 120 ° | |
| LED Luminosity | 10 mcd | |
| Lens Shape | Rectangular | |
| Standards/Approvals | No | |
| Dominant Wavelength | 572 to 621 nm | |
| Lens Finish | Clear | |
| Lens Colour | Clear | |
| Series | HSMF-C16x | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Product Type LED | ||
LED Colour Green, Red | ||
Package Type 0603 | ||
Maximum Forward Current 20mA | ||
Mount Type Surface Mount | ||
Packaging Tape & Reel | ||
Number of LEDs 2 | ||
Maximum Power Dissipation 52mW | ||
Forward Voltage 1.95V | ||
Number of Pins 4 | ||
Viewing Angle 120 ° | ||
LED Luminosity 10 mcd | ||
Lens Shape Rectangular | ||
Standards/Approvals No | ||
Dominant Wavelength 572 to 621 nm | ||
Lens Finish Clear | ||
Lens Colour Clear | ||
Series HSMF-C16x | ||
Automotive Standard No | ||
Avago HSMF-C16x Series ChipLEDs
The HSMF-C16x series, from Avago Technologies, are a series of miniature bi-colour surface mount (SMT) ChipLEDs. The HSMF-C16x LEDs are in the compact 0603 footprint to allow for a high density of components on a board. Available in a wide variety of colour options, these LEDs have diffused optics. Suitable applications for the HSMF-C16x series include; keypad backlighting, symbol indicator, LCD backlighting, pushbutton backlighting and front panel indicators.
Features of the HSMF-C16x LEDs:
- Small package: 1.6 x 0.8 x 0.5 mm (0603 package)
- Operating temperature: -40°C to +85°C
- Compatible with reflow soldering
Visible Light LEDs, Avago Technologies
