Broadcom 2.2 V Red, Green LED 3225 Surface Mount HSMF-C15x HSMF-C155

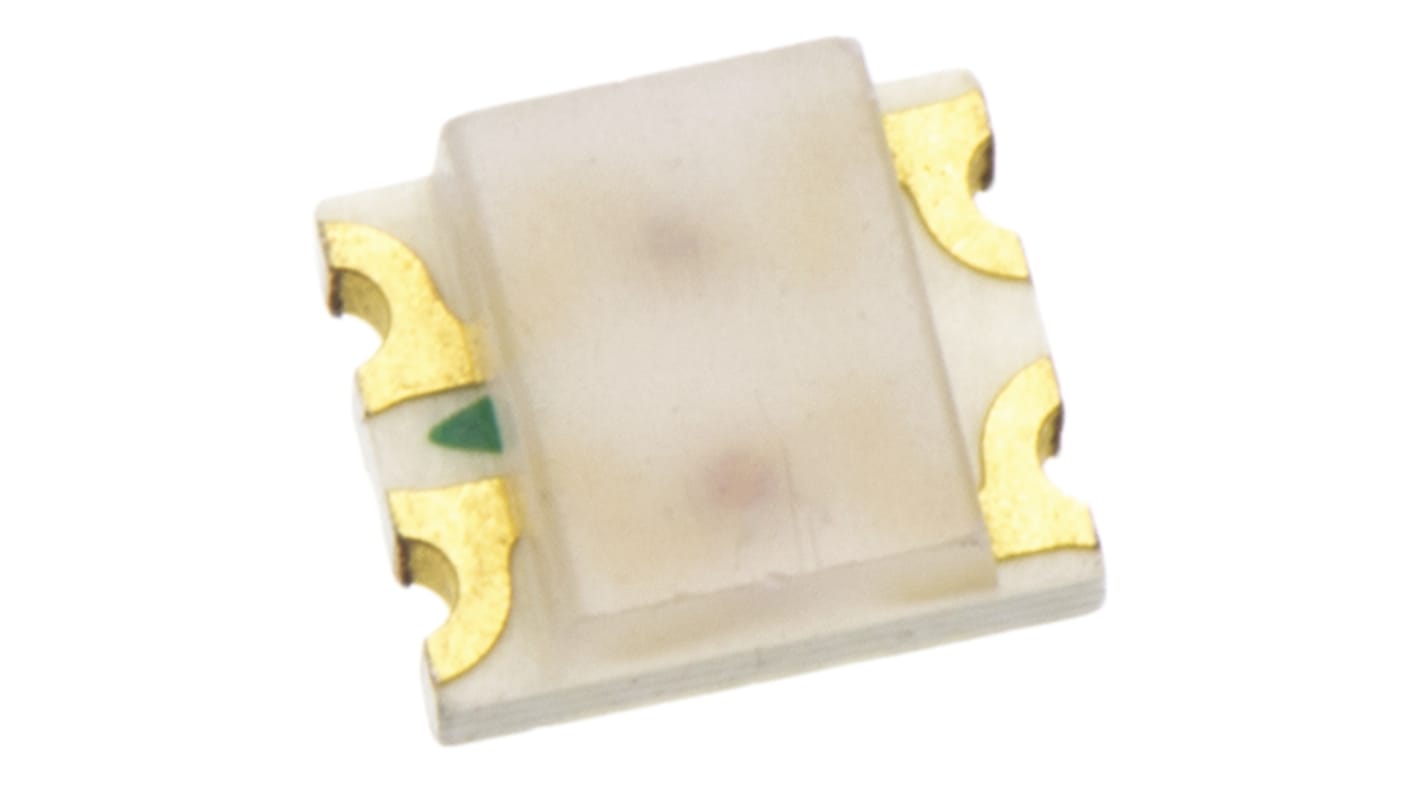

This image is representative of the product range

View all LEDs
Bulk discount available

Subtotal (1 pack of 10 units)*

SGD5.11

(exc. GST)

SGD5.57

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 40 unit(s) ready to ship from another location
  • Plus 33,990 unit(s) shipping from 24 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 - 10SGD0.511SGD5.11
20 - 40SGD0.50SGD5.00
50 - 90SGD0.486SGD4.86
100 - 190SGD0.472SGD4.72
200 +SGD0.458SGD4.58

*price indicative

Packaging Options:
RS Stock No.:
486-0430
Mfr. Part No.:
HSMF-C155
Manufacturer:
Broadcom
Find similar products by selecting one or more attributes.
Select all

Brand

Broadcom

LED Colour

Red, Green

Product Type

LED

Maximum Forward Current

20mA

Package Type

3225

Packaging

Tape & Reel

Mount Type

Surface Mount

Number of LEDs

2

Maximum Power Dissipation

52mW

Forward Voltage

2.2V

Number of Pins

4

Viewing Angle

170 °

LED Luminosity

10 mcd

Lens Shape

Rectangular

Standards/Approvals

No

Dominant Wavelength

572 to 626 nm

Lens Colour

Clear

Lens Finish

Clear

Series

HSMF-C15x

Automotive Standard

No

Avago HSMF-C15x Series ChipLEDs


The HSMF-C15x series of LEDs, from Avago Technologies, are bi-colour surface mount (SMT) ChipLEDs. They come in the industry standard 1210 package and are available in a variety of colours. The HSMF-C15x LED's wide viewing angle makes them ideal for use in backlighting applications. Other suitable applications for the HSMF-C15x ChipLEDs include; push-button backlighting, symbol backlighting, status indicators and front panel indicators.

Features of the HSMF-C15x ChipLEDs:

- Package dimensions: 3.2 x 2.7 x 1.1 mm

- Industry standard 1210 footprint

- Wide viewing angle: 170°

- Compatible with IR solder

- Diffused optics

- Operating temperature: -30°C to +85°C

Visible Light LEDs, Avago Technologies
