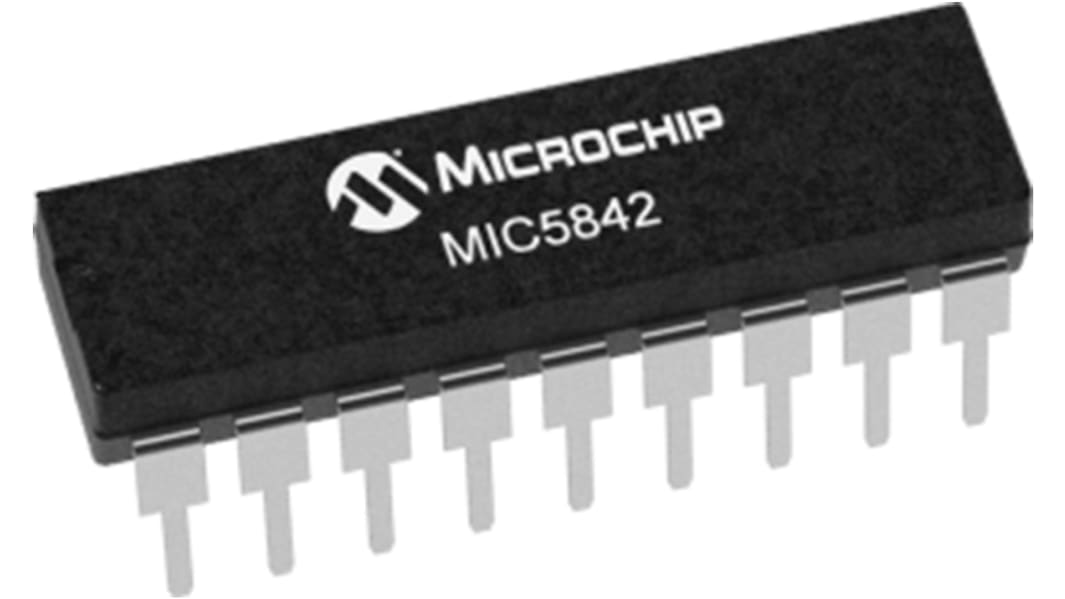

Microchip MIC5842YN 8-Bit 8 Bit Latch, Transparent, 18-Pin DIP

RS Stock No.:: 177-0473
Mfr. Part No.:: MIC5842YN
Manufacturer:: Microchip

Microchip MIC5842YN 8-Bit 8 Bit Latch, Transparent, 18-Pin DIP

This image is representative of the product range

Bulk discount available

Subtotal (1 tube of 21 units)*

SGD80.409

(exc. GST)

SGD87.654

(inc. GST)

FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28

In Stock

Plus 84 unit(s) shipping from 02 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Tube*
21 - 21	SGD3.829	SGD80.41
42 - 63	SGD3.778	SGD79.34
84 - 147	SGD3.677	SGD77.22
168 - 315	SGD3.48	SGD73.08
336 +	SGD3.109	SGD65.29

*price indicative

RS Stock No.:: 177-0473
Mfr. Part No.:: MIC5842YN
Manufacturer:: Microchip

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Microchip
	Product Type	8 Bit Latch
	Logic Family	CMOS
	Latch Mode	Transparent
	Logic Function	D Type
	Number of Bits	8
	Number of Channels	1
	Mount Type	Through Hole
	Minimum Supply Voltage	-0.3V
	Package Type	DIP
	Pin Count	18
	Maximum Supply Voltage	15.3V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Height	3.3mm
	Series	MIC5842
	Width	6.35 mm
	Standards/Approvals	No
	Length	23.27mm
	Automotive Standard	No

	Select all
	Brand Microchip
	Product Type 8 Bit Latch
	Logic Family CMOS
	Latch Mode Transparent
	Logic Function D Type
	Number of Bits 8
	Number of Channels 1
	Mount Type Through Hole
	Minimum Supply Voltage -0.3V
	Package Type DIP
	Pin Count 18
	Maximum Supply Voltage 15.3V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Height 3.3mm
	Series MIC5842
	Width 6.35 mm
	Standards/Approvals No
	Length 23.27mm
	Automotive Standard No

Datasheet

Using BiCMOS technology, the MIC5841/5842 integrated circuits were fabricated to be used in a wide variety of peripheral power driver applications. The devices each have an eight-bit CMOS shift register, CMOS control circuitry, eight CMOS data latches, and eight bipolar current-sink Darlington output drivers. These two devices differ only in maximum voltage ratings. The MIC5842 offers premium performance with a minimum output breakdown voltage rating of 80V (50V sustaining).

3.3 MHz Minimum Data-Input Rate

CMOS, PMOS, NMOS, TTL Compatible

Internal Pull-Up/Pull-Down Resistors

Low-Power CMOS Logic and Latches

High-Voltage Current-Sink Outputs

Output Transient-Protection Diodes
