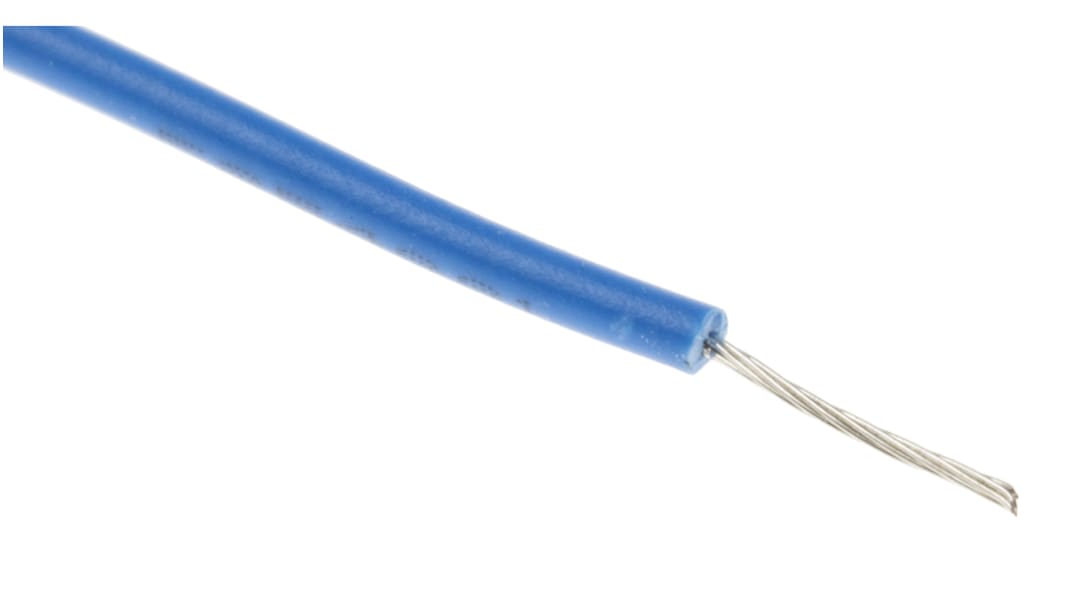

RS PRO Blue 0.08 mm² Hook Up Wire, 28 AWG, 7, 100 m, Polyvinyl Chloride
- RS Stock No.:
- 884-0843
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 reel of 100 metres)*
SGD14.07
(exc. GST)
SGD15.34
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
In Stock
- 21 unit(s) ready to ship from another location
- Plus 58 unit(s) shipping from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 49 | SGD14.07 | SGD0.141 |
| 50 + | SGD13.72 | SGD0.137 |
*price indicative
- RS Stock No.:
- 884-0843
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Hook Up Wire | |
| Cross Sectional Area | 0.08 mm² | |
| Jacket Colour | Blue | |
| American Wire Gauge | 28AWG | |
| Core Strands | 7 | |
| Cable Length | 100m | |
| Outside Diameter | 1.2 mm | |
| Voltage | 300 V | |
| Maximum Operating Temperature | 105°C | |
| Conductor Material | Tinned Copper | |
| Cable Type | Stranded | |
| Jacket Material | Polyvinyl Chloride | |
| Sub Type | Hookup Wire | |
| Standards/Approvals | UL 1569, UL 1581, UL 758 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Hook Up Wire | ||
Cross Sectional Area 0.08 mm² | ||
Jacket Colour Blue | ||
American Wire Gauge 28AWG | ||
Core Strands 7 | ||
Cable Length 100m | ||
Outside Diameter 1.2 mm | ||
Voltage 300 V | ||
Maximum Operating Temperature 105°C | ||
Conductor Material Tinned Copper | ||
Cable Type Stranded | ||
Jacket Material Polyvinyl Chloride | ||
Sub Type Hookup Wire | ||
Standards/Approvals UL 1569, UL 1581, UL 758 | ||
- COO (Country of Origin):
- CN
RS UL1569 Hook-Up Wire
The UL1569 Hook-up wire can be used in electronic and appiliance applications where they are not subjected to movement or mechanical damage.
• Soft annealed bare copper conductor
• PVC Insulated
• High flexing UL 10198
• Continuous use up to 105°C
• Various colours available
Note
Tag may also indicate the following: 600 V peak for electronic use only.
