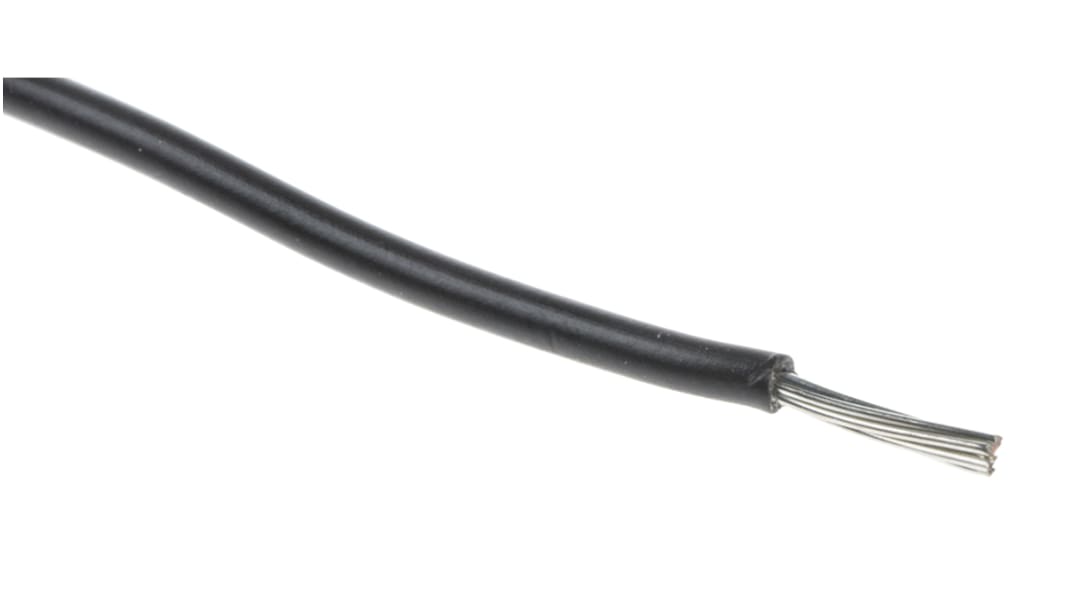

RS PRO UL1007 Series Black 0.08 mm² Hook Up Wire, 28 AWG, 7, 100 m, Polyvinyl Chloride
- RS Stock No.:
- 874-0361
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 reel of 100 metres)*
SGD12.35
(exc. GST)
SGD13.46
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
In Stock
- 6 unit(s) ready to ship
- Plus 52 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 49 | SGD12.35 | SGD0.124 |
| 50 + | SGD12.05 | SGD0.121 |
*price indicative
- RS Stock No.:
- 874-0361
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Hook Up Wire | |
| Cross Sectional Area | 0.08 mm² | |
| Jacket Colour | Black | |
| American Wire Gauge | 28AWG | |
| Core Strands | 7 | |
| Cable Length | 100m | |
| Voltage | 300 V | |
| Outside Diameter | 1.2 mm | |
| Maximum Operating Temperature | 80°C | |
| Conductor Material | Tinned Copper | |
| Cable Type | Stranded | |
| Jacket Material | Polyvinyl Chloride | |
| Sub Type | Hookup Wire | |
| Standards/Approvals | RoHS Compliant, UL 1581, UL 758 | |
| Fire Behaviour | Flame Retardant | |
| Series | UL1007 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Hook Up Wire | ||
Cross Sectional Area 0.08 mm² | ||
Jacket Colour Black | ||
American Wire Gauge 28AWG | ||
Core Strands 7 | ||
Cable Length 100m | ||
Voltage 300 V | ||
Outside Diameter 1.2 mm | ||
Maximum Operating Temperature 80°C | ||
Conductor Material Tinned Copper | ||
Cable Type Stranded | ||
Jacket Material Polyvinyl Chloride | ||
Sub Type Hookup Wire | ||
Standards/Approvals RoHS Compliant, UL 1581, UL 758 | ||
Fire Behaviour Flame Retardant | ||
Series UL1007 | ||
- COO (Country of Origin):
- CN
RS UL1007 300V Hook-up Wire
The RS version of this hook up wire can be used for internal wiring of electronic and electrical equipment.
Stranded tinned copper conductor
Various colours
PVC insulation
18,20,22,24,26,28 AWG
Note
Tags may also indicate the following: 600 V Peak - For electronic use only
Standards
RoHS, VW-1, UL758, UL1581
