Altera FPGA EP4CGX15BF14C8N Cyclone IV GX 14400 Cells, 540000 bit 900 Blocks, 169-Pin FBGA
- RS Stock No.:
- 771-6730
- Mfr. Part No.:
- EP4CGX15BF14C8N
- Manufacturer:
- Altera

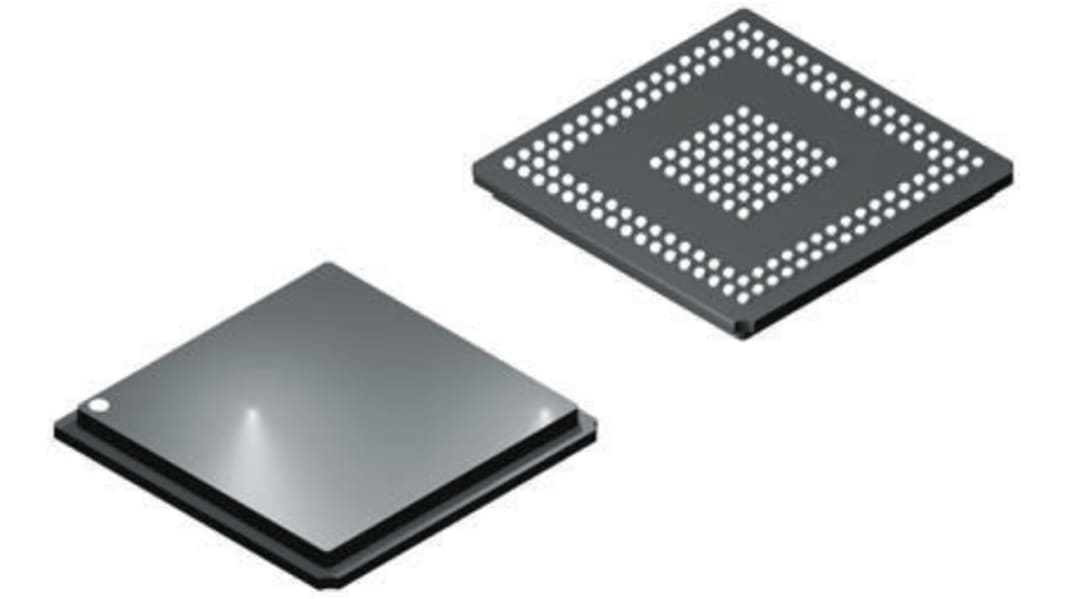

This image is representative of the product range
Subtotal (1 unit)*
SGD63.92
(exc. GST)
SGD69.67
(inc. GST)
Add 3 units to get free delivery
Temporarily out of stock
- Shipping from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | SGD63.92 |
*price indicative
- RS Stock No.:
- 771-6730
- Mfr. Part No.:
- EP4CGX15BF14C8N
- Manufacturer:
- Altera
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Altera | |
| Series | Cyclone IV GX | |
| Product Type | FPGA | |
| Number of Logic Cells | 14400 | |
| Number of Logic Units | 900 | |
| Number of Registers | 14400 | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 1.16V | |
| Package Type | FBGA | |
| Maximum Supply Voltage | 1.24V | |
| Pin Count | 169 | |
| Number of RAM Bits | 540000bit | |
| Number of I/Os | 72 | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 14 mm | |
| Standards/Approvals | No | |
| Height | 1.25mm | |
| Length | 14mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Altera | ||
Series Cyclone IV GX | ||
Product Type FPGA | ||
Number of Logic Cells 14400 | ||
Number of Logic Units 900 | ||
Number of Registers 14400 | ||
Mount Type Surface | ||
Minimum Supply Voltage 1.16V | ||
Package Type FBGA | ||
Maximum Supply Voltage 1.24V | ||
Pin Count 169 | ||
Number of RAM Bits 540000bit | ||
Number of I/Os 72 | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 85°C | ||
Width 14 mm | ||
Standards/Approvals No | ||
Height 1.25mm | ||
Length 14mm | ||
Automotive Standard No | ||
Cyclone FPGA, Altera
An FPGA is a semiconductor device consisting of a matrix of Configurable Logic Blocks (CLBs) connected through programmable interconnects. The user determines these interconnections by programming SRAM. A CLB can be simple (AND, OR gates, etc) or complex (a block of RAM). The FPGA allows changes to be made to a design even after the device is soldered into a PCB.
