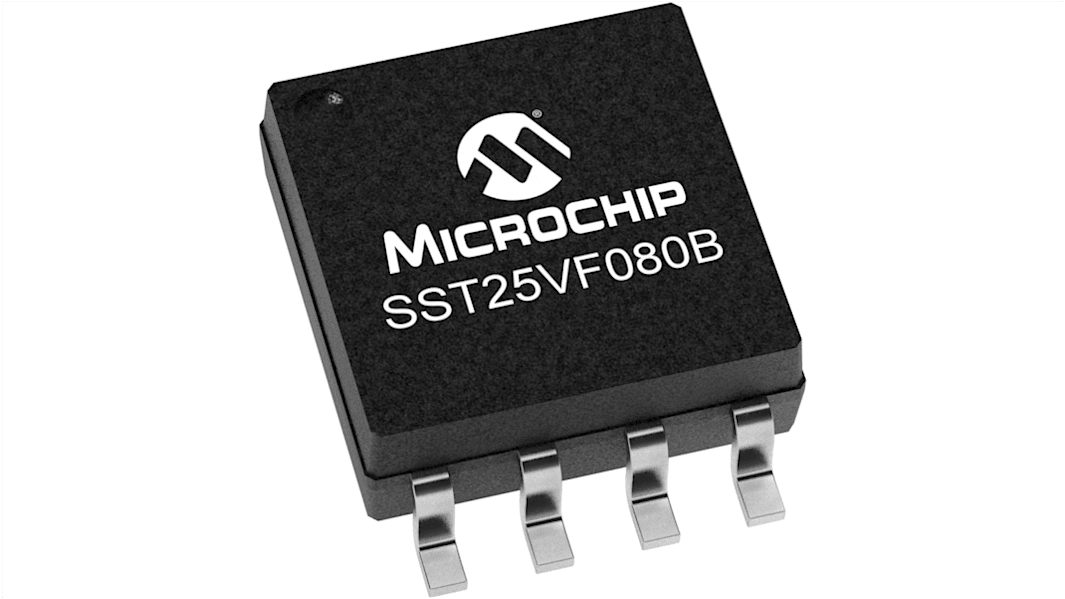

Microchip 8Mbit SPI Flash Memory 8-Pin SOIJ, SST25VF080B-50-4C-S2AF-T

The Microchip serial flash memory is enhanced with improved operating frequency for lower power consumption. SST25VF080B SPI serial flash memory is manufactured with SST's proprietary, high-performance CMOS Super flash technology. The split-gate cell design and thick-oxide tunnelling injector attain better reliability and manufacturability compared with alternate approaches. This device significantly improve performance and reliability, while lowering power consumption.

Single Voltage Read and Write Operations– 2.7-3.6V
Supports 50 MHz SPI clock
Endurance: 100000 Cycles (typical)
Greater than 100 years Data Retention
Program & Erase Current: 30mA (max)
Active Read Current: 10 mA (typical)
Standby Current: 5 μA (typical)
Uniform 32 Kbyte & 64 Kbyte overlay blocks
Chip-Erase Time: 35 ms (typical)
All devices are RoHS compliant
