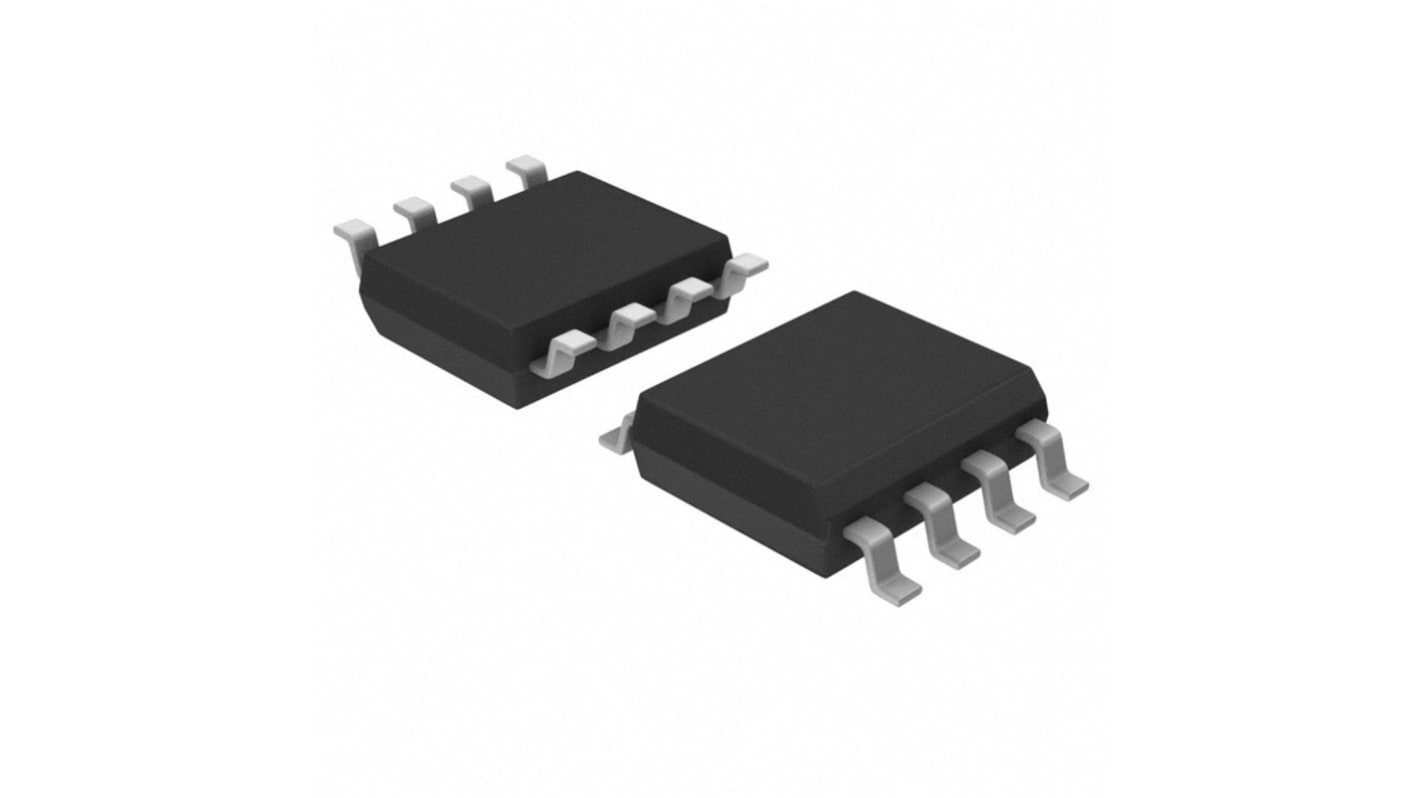

Name: Alliance Memory NOR 16 MB SPI Flash Memory 8-Pin SOIC
Brand: Alliance Memory
SKU: 230-6238
Price: 2.02 SGD
Availability: Discontinued

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Alliance Memory
	Product Type	Flash Memory
	Memory Size	16MB
	Interface Type	SPI
	Package Type	SOIC
	Pin Count	8
	Organisation	2M x 8 Bit
	Maximum Clock Frequency	75MHz
	Mount Type	Surface
	Cell Type	NOR
	Maximum Supply Voltage	3.6V
	Minimum Supply Voltage	2.7V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Standards/Approvals	JEDEC Standard
	Width	5.49 mm
	Height	1.25mm
	Length	5mm
	Supply Current	1μA
	Number of Bits per Word	8
	Series	M45PE16
	Maximum Random Access Time	8ns
	Automotive Standard	No

	Select all
	Brand Alliance Memory
	Product Type Flash Memory
	Memory Size 16MB
	Interface Type SPI
	Package Type SOIC
	Pin Count 8
	Organisation 2M x 8 Bit
	Maximum Clock Frequency 75MHz
	Mount Type Surface
	Cell Type NOR
	Maximum Supply Voltage 3.6V
	Minimum Supply Voltage 2.7V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Standards/Approvals JEDEC Standard
	Width 5.49 mm
	Height 1.25mm
	Length 5mm
	Supply Current 1μA
	Number of Bits per Word 8
	Series M45PE16
	Maximum Random Access Time 8ns
	Automotive Standard No

Datasheet-M45PE16-VMW6TG

The Alliance Memory M45PE16 series is the NOR flash memory. The M45PE16 is a 16Mb (2Mb x 8) serial Flash memory device accessed by a high-speed, SPI-compatible bus. The memory can be written or programmed 1 to 256 bytes at a time using the PAGE WRITE or PAGE PROGRAM command. The page write command consists of an integrated page erase cycle followed by a page program cycle.

SPI bus-compatible serial interface

75 MHz clock frequency

Hardware write protection of the bottom memory area 64KB

Deep power-down mode

Alliance Memory NOR 16 MB SPI Flash Memory 8-Pin SOIC
