- RS Stock No.:
- 244-3421
- Mfr. Part No.:
- 05-0003-000800
- Manufacturer:
- Bartec
5 In SG stock for delivery within 1 working day(s) when ordered before 3.30 pm.
43 In Global stock for delivery within 4 working day(s)
Added
Price Each
SGD124.47
(exc. GST)
SGD135.67
(inc. GST)
Units | Per unit |
1 - 4 | SGD124.47 |
5 + | SGD102.44 |
- RS Stock No.:
- 244-3421
- Mfr. Part No.:
- 05-0003-000800
- Manufacturer:
- Bartec
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details
Switch Actuators
Note
Group and Category
II 2GD EEx e II
Certificate No.
PTB 00 ATEX 3114U
Hazardous Area Actuators & Contact Blocks

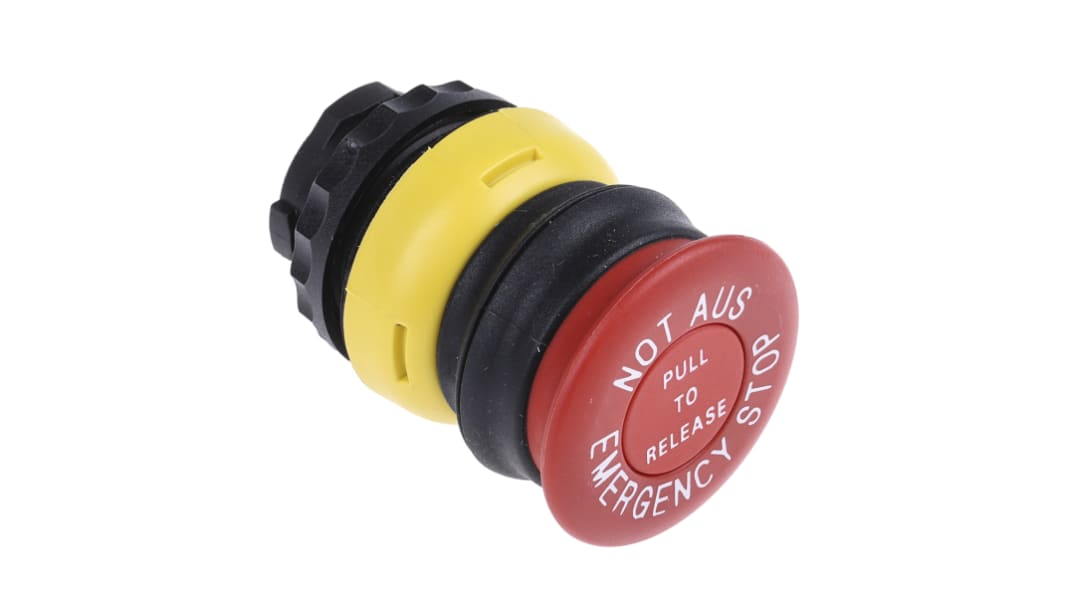

Panel mounting, with a wide range of switch contact arrangements and elements including; selector switches, key switches, standard pushbuttons and an emergency stop pushbutton. The actuators and lens units require a 30.5mm mounting hole. Ingress protection is to IP66 and they are component-approved in their own right. Switch and lamp modules include three metres of encapsulated cable. Switch modules include a wipe clean action and are rated up to 230Vac/16A (circuit type AC-12). The N/C contact has a positive break action.,The electronic circuitry of each lamp module self configures to allow the lamps to be used over a wide range of ac and dc voltages.,A simple cam arrangement on the modules provides a rapid method for the fitting of the actuators.
Specifications
Attribute | Value |
---|---|
Cutout Diameter | 30mm |
Series | ComEx |
Push Button Material | Thermoplastic |
Push Button Diameter | 30mm |
