RS PRO SA Series Pull Release Emergency Stop Push Button, Surface Mount, 1 NO/1 NC, IP65

View this category

Subtotal (1 unit)*

SGD128.73

(exc. GST)

SGD140.32

(inc. GST)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Units
Per unit
1 +SGD128.73

*price indicative

RS Stock No.:
242-0840
Manufacturer:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Emergency Stop Push Button

Mount Type

Surface Mount

Contact Configuration

1 NO/1 NC

Housing Material

Thermoplastic

Push Button Actuation

Pull Release

Illuminated

No

Series

SA

IP Rating

IP65

Colour

Red

Terminal Type

Screw

Contact DC Voltage

250V dc

Contact Current

10A

Contact AC Voltage

24V ac

Hazardous Area Certification

NO

Head Diameter

90mm

Standards/Approvals

IEC 60947-5-1 and EN 60947-5-1

Push Button Material

Plastic

Safety Contacts

1 NO/1 NC

COO (Country of Origin):
IT

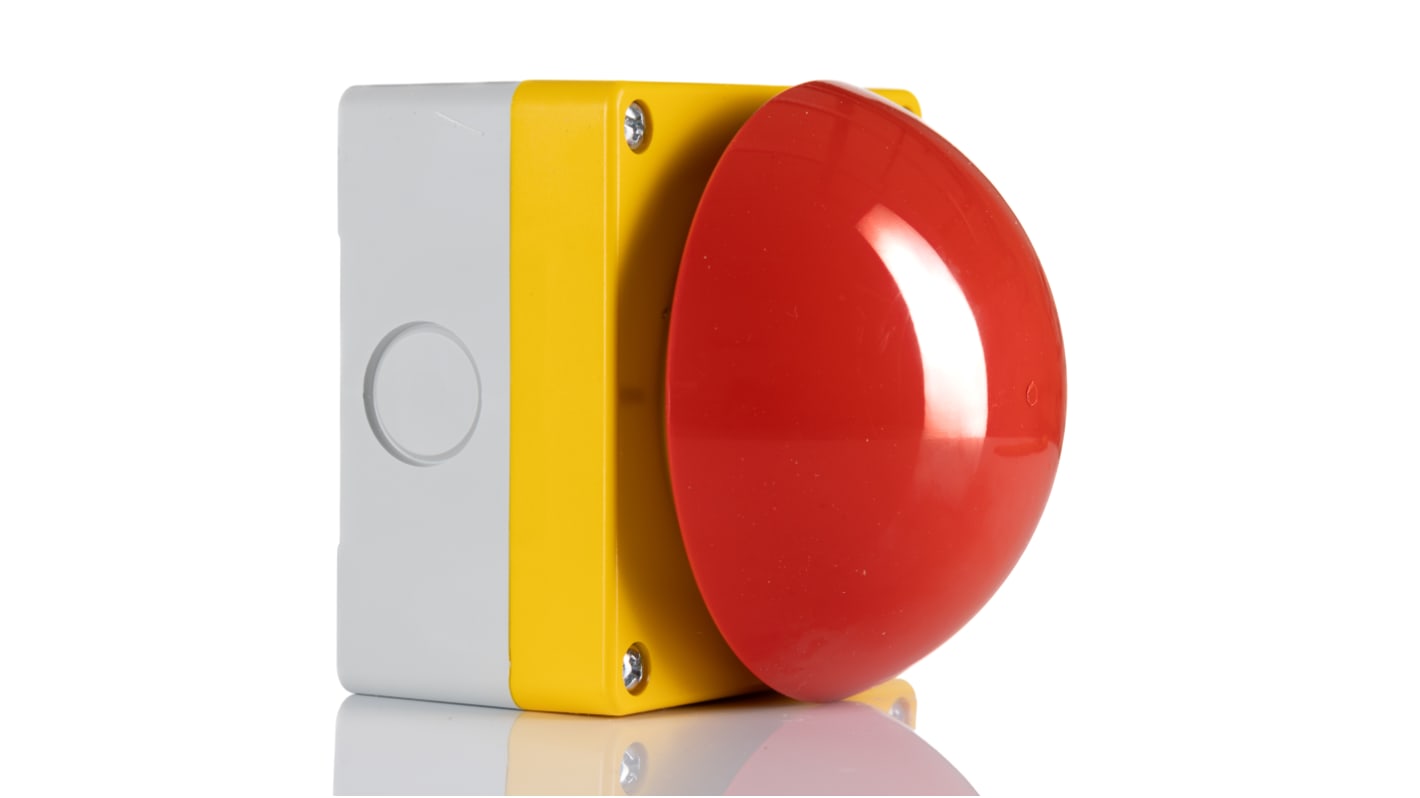

RS PRO Emergency Stop Mushroom Head Push Button Complete Unit


RS PRO proudly introduces a range of mushroom head push button complete units. These E-Stop units are also known as foot and palm switches which are commonly used in industrial control stations. Each pushbutton is designed to take an aggressive impact from the palm of your hand or foot to shut down operations.

Upon inspection, the mushroom head is non-illuminated, contains microswitch contacts and each device is made from a strong thermoplastic material that incorporates M20 knockout holes. In addition, the IP65 rating means there is protection from jets of water from all angles.

Features & Benefits


  • Palm and Foot E-Stop device

  • Large and distinctive pushbutton of visibility (Red)

  • Emergency stop pushbutton– Pull to release

  • Contacts: 1NC + 1NO

  • Very sturdy and reliable also in harsh environment

  • Two M20 cable entries

  • Maximum DC Voltage: 250 V

  • Maximum AC Voltage: 400 V

  • Rated Operational Current Ie - AC-15 (50-60 Hz) [Vac - A]: 24V - 10A / 240V - 6A / 400V - 4A

  • Rated Operational Current DC-13 [Vdc - A]: 24V - 2,8A / 125V - 0.55A / 250V - 0.27A

  • IP Rating: IP65

  • Enclosure dimensions: 94 mm x 94 mm

  • Standards: IEC 60947-1 and EN 60947-1

    • Applications


  • Automotive

  • Building and Public Works

  • Industrial Controls

  • Control System

  • Lighting Controls

  • Medical Equipment

    • Why would you choose RS PRO Emergency Push Buttons?


    RS PRO offers a comprehensive range of emergency stop push button complete units. Each unit is high-quality and available in a variety of contact configurations designed to suit your application. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards, they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
