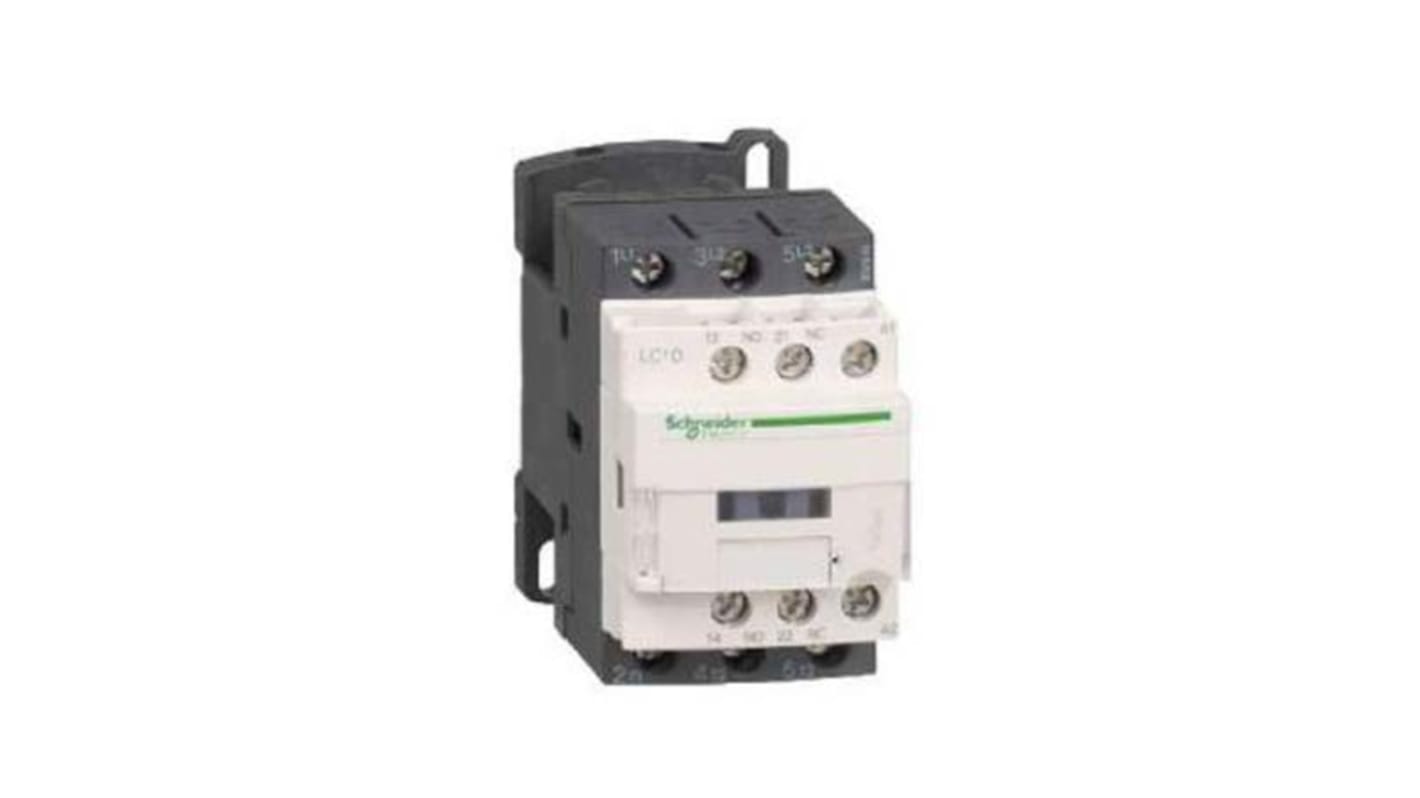

Schneider Electric TeSys D LC1D Contactor, 230 V ac Coil, 3-Pole, 25 A, 15 kW, 3NO, 300 V dc, 690 V ac

RS Stock No.:: 845-1787
Mfr. Part No.:: LC1D256U7
Manufacturer:: Schneider Electric

Schneider Electric TeSys D LC1D Contactor, 230 V ac Coil, 3-Pole, 25 A, 15 kW, 3NO, 300 V dc, 690 V ac

Price Each**

SGD271.92

(exc. GST)

SGD296.39

(inc. GST)

28 In stock for delivery within 4 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over SGD250.00 (ex GST)

Units	Per unit
1 +	SGD271.92

**price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 845-1787
Mfr. Part No.:: LC1D256U7
Manufacturer:: Schneider Electric

Schneider Electric LC1D TeSys D Contactors.

TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.

Features and Benefits.

Built-in auxiliary contacts for added switching capability.

Screw connections: IP20 finger-safe terminals with both North American and International terminal markings.

Can be panel mounted with screws or DIN Rail mounted.

Bidirectional peak limiting diode suppressor to protect the coil.

Easily installed accessories.

Flexible control circuit to suit a wide range of applications.

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.

AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.

AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What accessories are available?

Auxiliary contact blocks with serrated wiping action.

Front mount dust tight auxiliary contact blocks.

Pneumatic time delay blocks.

Transient voltage surge suppressors.

Interface modules and electronic timers.

Mechanical latching blocks.

Is the TeSys D range a double break pole type contactor?

Yes, the Tesys D range uses linear translation movement that provides double breaking of the poles.

LC1D256U7 Schneider Electric LC1D TeSys D Contactor Features.

Motor Control and Resistive load applications.

AC-1, AC-3 category.

Ue Rated voltage <= 690 V AC 25...400 Hz for power circuit, <= 300 V DC for power circuit.

Rated current 25 A (<= 60 °C) at <= 440 V AC AC-3 for power circuit, 40 A (<= 60 °C) at <= 440 V AC AC-1 for power circuit.

240 V AC 50/60 Hz Control circuit voltage.

1 NO + 1 NC auxiliary contact.

Overvoltage category III.

Rated breaking capacity 450 A at 440 V for power circuit conforming to IEC 60947.

Complete with a protective cover.

Plate and Rail mounting.

IP2x front face conforming to IEC 60529.

Approvals

BV, CCC, CSA, DNV, GL, GOST, RINA, UL, LROS.

Standards

EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, CSA C22.2 No 14.

Attribute	Value
Coil Voltage	230 V ac
Number of Poles	3
Contact Voltage Rating	300 V dc, 690 V ac
Contact Current Rating	25 A
Series	LC1D
Range	TeSys D
Power Rating	15 kW
Normal State Configuration	3NO
Auxiliary Contact Configuration	1NO + 1NC
Terminal Type	Lug Ring Terminal
Length	85mm
Width	45mm
Depth	92mm
Better World Product	Yes
Better World Verification	Green Premium
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-5°C
