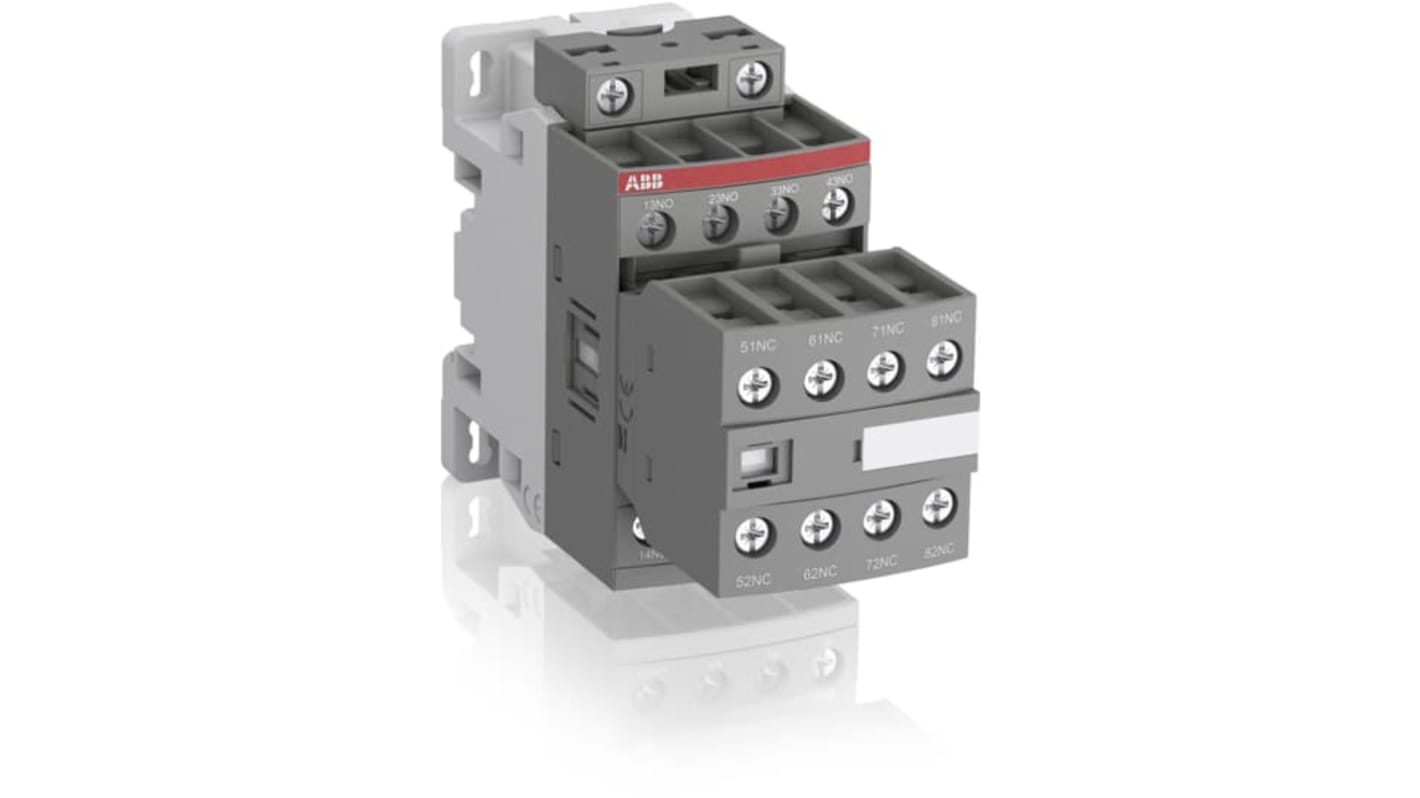

ABB Contactor Relay, 60V Coil, 8-Pole, 4 A, 144 W 20V, 8 NO, 690V

RS Stock No.:: 258-9446
Mfr. Part No.:: 1SBH137001R1180
Manufacturer:: ABB

ABB Contactor Relay, 60V Coil, 8-Pole, 4 A, 144 W 20V, 8 NO, 690V

View all Contactors

Subtotal (1 unit)*

SGD139.69

(exc. GST)

SGD152.26

(inc. GST)

FREE delivery for orders over $75.00, or create a business account to enjoy free delivery from just $28

Stocked by manufacturer

Ready to ship from 07 January 2027

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	SGD139.69

*price indicative

RS Stock No.:: 258-9446
Mfr. Part No.:: 1SBH137001R1180
Manufacturer:: ABB

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Product Type	Contactor Relay
	Coil Voltage	60V
	Number of Poles	8
	Contact Voltage	690V
	Contact Current	4A
	Power Rating	144W
	Function	Switching
	Mount Type	DIN Rail
	Normal State Configuration	8 NO
	Auxiliary Contact Configuration	8 NO
	Number of Auxiliary Contacts	8
	Terminal Type	Screw
	Minimum Operating Temperature	-40°C
	Contactor Application	Auxiliary Contactor
	Control Circuit Voltage Uc	20V
	Operational Current Ie	4A
	Maximum Operating Temperature	70°C
	Depth	110.50mm
	Length	110.50mm
	Standards/Approvals	UL 508, IEC 60947-5-1 and EN 60947-5-1, CSA C22.2 N°14
	Width	45mm
	Pole and Throw Configuration	8P

	Select all
	Brand ABB
	Product Type Contactor Relay
	Coil Voltage 60V
	Number of Poles 8
	Contact Voltage 690V
	Contact Current 4A
	Power Rating 144W
	Function Switching
	Mount Type DIN Rail
	Normal State Configuration 8 NO
	Auxiliary Contact Configuration 8 NO
	Number of Auxiliary Contacts 8
	Terminal Type Screw
	Minimum Operating Temperature -40°C
	Contactor Application Auxiliary Contactor
	Control Circuit Voltage Uc 20V
	Operational Current Ie 4A
	Maximum Operating Temperature 70°C
	Depth 110.50mm
	Length 110.50mm
	Standards/Approvals UL 508, IEC 60947-5-1 and EN 60947-5-1, CSA C22.2 N°14
	Width 45mm
	Pole and Throw Configuration 8P

Datasheet - 1SBH137001R1180

COO (Country of Origin):: FR

ABB Contactor Relay, 60V Coil Voltage, 4A Contact Current - 1SBH137001R1180

This contactor relay is a multi-pole switching device designed for auxiliary control duties in industrial electrical installations. It operates within a broad temperature range and provides a compact, rail-mounted solution for distributing control signals across multiple circuits. The unit is intended for incorporation into control panels where several auxiliary contacts are required.

Features and Benefits:

• 8 NO auxiliary contact configuration provides multiple isolated outputs
• 8-pole DIN rail mounting enables dense panel installation
• 60V Coil voltage minimises Interface complexity with low-voltage controls
• 4A contact current supports modest auxiliary load switching
• 144W power rating ensures consistent Coil operation under load

Applications

• Suitable for modular control panels requiring many auxiliaries
• Ideal for interfacing with low-voltage control circuits
• Used with motor starter assemblies as auxiliary contact expansion
• Can be used for signal distribution in automation racks
• Suitable for industrial switchgear where DIN rail fit is required

What terminals are provided for wiring connections?

Screw terminals are fitted to secure conductor connections and enable routine servicing.

Which international standards does it meet?

It complies with UL508, IEC 60947-5-1 and EN 60947-5-1, and CSA C22.2 No. 14.

What environmental temperature range can it withstand?

It is rated to operate from -40°C up to 70°C.

What voltage can the contacts switch?

Contact circuits are rated for up to 690V contact voltage.

How many poles and auxiliary contacts are present?

The device provides eight poles and eight normally open auxiliary contacts.
