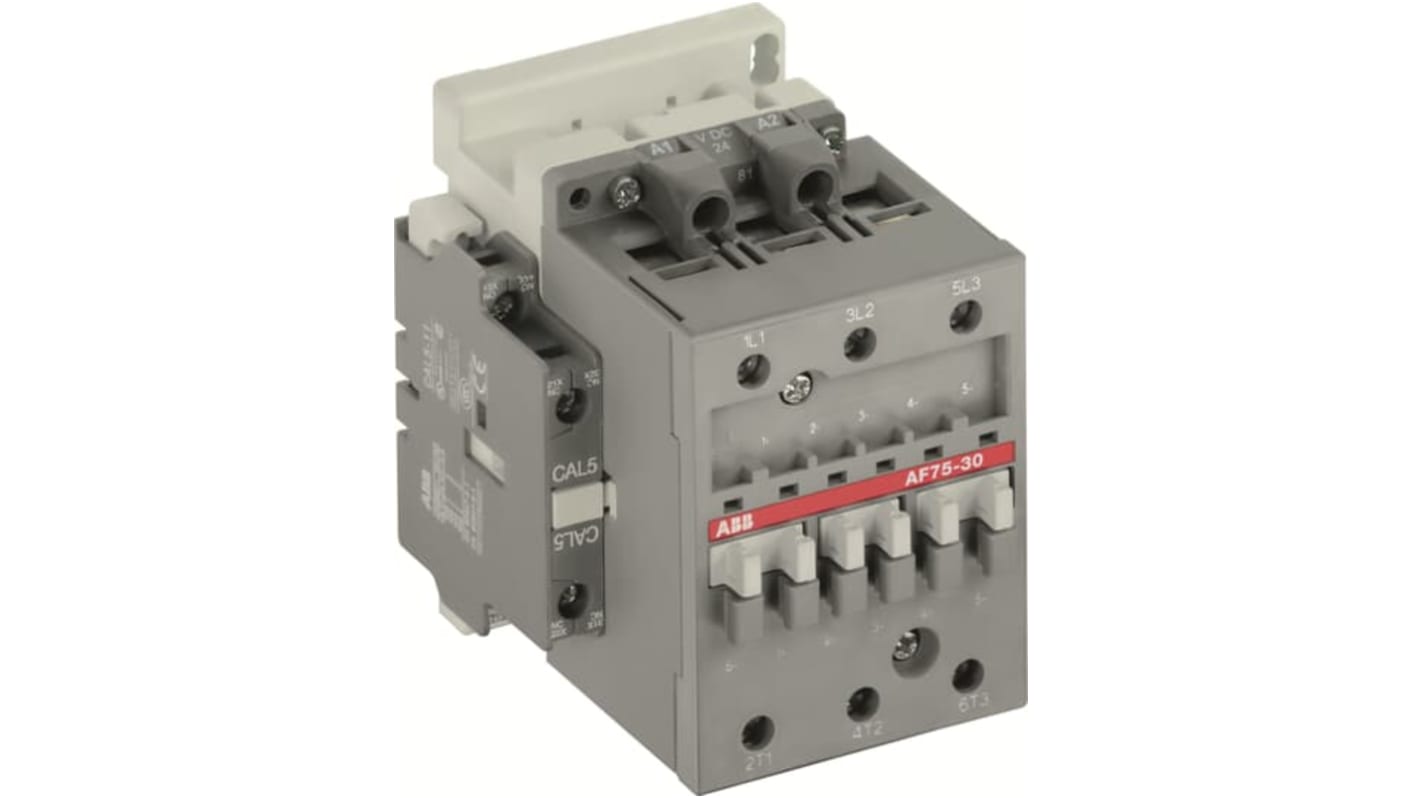

ABB 1SBL41 Contactor, 100V, 250 V Coil, 3-Pole, 75 A, 45 kW 100V, 250 V, 4 NO/1 NC, 690V

RS Stock No.:: 253-2040
Mfr. Part No.:: 1SBL417001R7011
Manufacturer:: ABB

ABB 1SBL41 Contactor, 100V, 250 V Coil, 3-Pole, 75 A, 45 kW 100V, 250 V, 4 NO/1 NC, 690V

View all Contactors

Subtotal (1 unit)*

SGD891.22

(exc. GST)

SGD971.43

(inc. GST)

FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28

Stocked by manufacturer

Ready to ship from 17 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	SGD891.22

*price indicative

RS Stock No.:: 253-2040
Mfr. Part No.:: 1SBL417001R7011
Manufacturer:: ABB

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Coil Voltage	100, 250V
	Product Type	Contactor
	Number of Poles	3
	Contact Voltage	690V
	Contact Current	75A
	Series	1SBL41
	Power Rating	45kW
	Function	Motor Control
	Normal State Configuration	4 NO/1 NC
	Number of Auxiliary Contacts	2
	Auxiliary Contact Configuration	1 NO/1 NC
	Terminal Type	Screw
	Contactor Application	Control Unit
	Control Circuit Voltage Uc	100, 250V
	Operational Current Ie	125A
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	70°C
	Length	108mm
	Standards/Approvals	IEC/EN 60947-4-1, TR CU 001/2011 (on request), UL 508, CSA C22-2 N°14, EN 50155 (applicable parts), IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), IEC 61373, IEC/EN 60947-1
	Depth	108mm
	Width	82mm
	Pole and Throw Configuration	3P

	Select all
	Brand ABB
	Coil Voltage 100, 250V
	Product Type Contactor
	Number of Poles 3
	Contact Voltage 690V
	Contact Current 75A
	Series 1SBL41
	Power Rating 45kW
	Function Motor Control
	Normal State Configuration 4 NO/1 NC
	Number of Auxiliary Contacts 2
	Auxiliary Contact Configuration 1 NO/1 NC
	Terminal Type Screw
	Contactor Application Control Unit
	Control Circuit Voltage Uc 100, 250V
	Operational Current Ie 125A
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 70°C
	Length 108mm
	Standards/Approvals IEC/EN 60947-4-1, TR CU 001/2011 (on request), UL 508, CSA C22-2 N°14, EN 50155 (applicable parts), IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), IEC 61373, IEC/EN 60947-1
	Depth 108mm
	Width 82mm
	Pole and Throw Configuration 3P

Datasheet - 1SBL417001R7011

COO (Country of Origin):: BG

ABB 1SBL41 Series Contactor, 45kW Power Rating, 75A Contact Current - 1SBL417001R7011

This contactor is a three-pole switching device engineered for control of three-phase motors and industrial power circuits. It operates within control-circuit voltages from 100V to 250V AC and is suitable for environments requiring high current switching and motor-control functionality.

Features and Benefits:

• Rated for 75A at 690V delivering high-voltage switching capacity
• Operational current capability of 125A enabling heavy-duty load handling
• Coil options 100V AC and 250V AC allowing flexible control supply choices
• Two auxiliary contacts configured as 1 NO and 1 NC for straightforward signalling
• Screw Terminal connections ensuring secure electrical termination
• Conforms to IEC/EN 60947-4-1 supporting recognised industrial specifications

Applications

• Suitable for controlling 3-phase motor starters in industrial drives
• Ideal for integration into power distribution panels for switching tasks
• Used with automation systems requiring auxiliary contact feedback
• Can be used for rolling stock or transport meeting applicable standards
• Suitable for replacement in existing heavy-duty 3-pole installations

What ambient temperature range can it tolerate during operation?

It is rated to operate down to -40°C and up to 70°C without loss of specified performance.

How is the device mounted and connected electrically?

Electrical connections are MADE via screw terminals and the unit presents a Compact footprint with an 82mm width for panel mounting.

What pole configuration and contact arrangement does it use?

The device is a 3-pole arrangement with four normally open and one normally closed main contact configuration in its normal state and provides two auxiliary contacts for control circuits.

Which approvals or standards are relevant to its use in industrial settings?

It meets IEC/EN 60947-4-1 and related IEC standards for applicable parts, and has additional approvals such as UL508 and CSA C22.2 No. 14 for broader industrial compliance.
