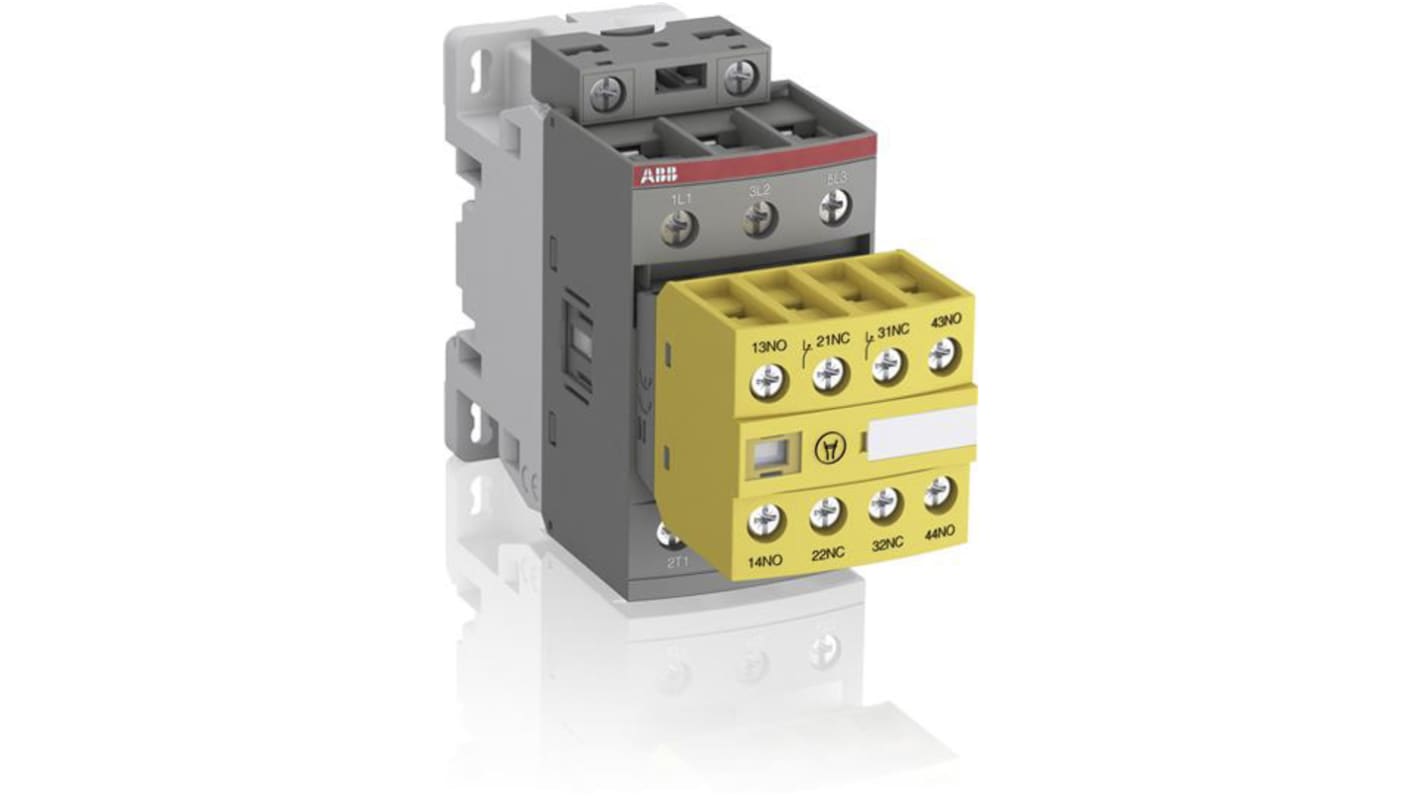

ABB Jokab AFS Contactor, 100/250 V ac/dc Coil, 3-Pole, 50 A, 9 kW 24 V, 3 NO, 600V

RS Stock No.:: 175-3220
Mfr. Part No.:: 1SBL277082R1322 AFS30-30-22-13
Manufacturer:: ABB Jokab

ABB Jokab AFS Contactor, 100/250 V ac/dc Coil, 3-Pole, 50 A, 9 kW 24 V, 3 NO, 600V

Subtotal (1 unit)*

SGD210.98

(exc. GST)

SGD229.97

(inc. GST)

FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28

In Stock

7 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	SGD210.98

*price indicative

RS Stock No.:: 175-3220
Mfr. Part No.:: 1SBL277082R1322 AFS30-30-22-13
Manufacturer:: ABB Jokab

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB Jokab
	Coil Voltage	100/250 V ac/dc
	Product Type	Contactor
	Number of Poles	3
	Contact Voltage	600V
	Contact Current	50A
	Series	AFS
	Power Rating	9kW
	Function	Safety
	Mount Type	DIN Rail
	Normal State Configuration	3 NO
	Number of Auxiliary Contacts	4
	Auxiliary Contact Configuration	2 NO/2 NC
	Terminal Type	Screw
	Operational Current Ie	30A
	Minimum Operating Temperature	-40°C
	Control Circuit Voltage Uc	24 V
	Contactor Application	Motor Control
	Depth	80mm
	Length	45mm
	Width	119.5 mm
	Standards/Approvals	RoHS, IEC, EAC, cUL, CSA, CE
	Pole and Throw Configuration	3

	Select all
	Brand ABB Jokab
	Coil Voltage 100/250 V ac/dc
	Product Type Contactor
	Number of Poles 3
	Contact Voltage 600V
	Contact Current 50A
	Series AFS
	Power Rating 9kW
	Function Safety
	Mount Type DIN Rail
	Normal State Configuration 3 NO
	Number of Auxiliary Contacts 4
	Auxiliary Contact Configuration 2 NO/2 NC
	Terminal Type Screw
	Operational Current Ie 30A
	Minimum Operating Temperature -40°C
	Control Circuit Voltage Uc 24 V
	Contactor Application Motor Control
	Depth 80mm
	Length 45mm
	Width 119.5 mm
	Standards/Approvals RoHS, IEC, EAC, cUL, CSA, CE
	Pole and Throw Configuration 3

COO (Country of Origin):: FR

ABB AFS Series Contactor, 3 Pole Configuration, 100 to 250 V Coil Voltage - 1SBL277082R1322

This contactor is a key component designed for machine safety applications, featuring a robust construction ideal for reliable electrical control. With dimensions of 119.5mm in length and 45mm in width, this compact unit is suitable for DIN rail mounting. Its ability to handle coil voltages ranging from 100 to 250 V AC/DC and a contact rating of 600 V AC enhances its versatility in various industrial settings.

Features & Benefits

• Designed for safety with mechanically linked contacts

• Wide coil voltage range reduces energy consumption

• Equipped with auxiliary contact configuration for monitoring

• Terminal type uses screws for secure connections

• Operating temperature range of -40 °C to +60 °C ensures reliability

• Compact dimensions allow for efficient use of space

Applications

• Utilised in industrial control circuits for equipment

• Suitable for automation systems requiring safety features

• Applied in environments needing reliable electrical isolation

• Ideal for involving motor control and operation

What parameters should be considered when selecting a contactor for my application?

Key parameters to examine include the operational current and voltage ratings, coil voltage compatibility, and the number of poles required for specific control functions. For this unit, the rated operational current is 50A with a contact rating of 600V AC.

Can this contactor handle high ambient temperatures during operation?

Yes, it operates effectively within a temperature range of -40 °C to +60 °C, making it suitable for diverse operating environments including those with higher thermal demands.

How does the auxiliary contact configuration enhance circuit monitoring?

The auxiliary configuration consists of 2 normally open (NO) and 2 normally closed (NC) contacts, allowing users to implement effective monitoring and fail-safe operations within various control systems.
