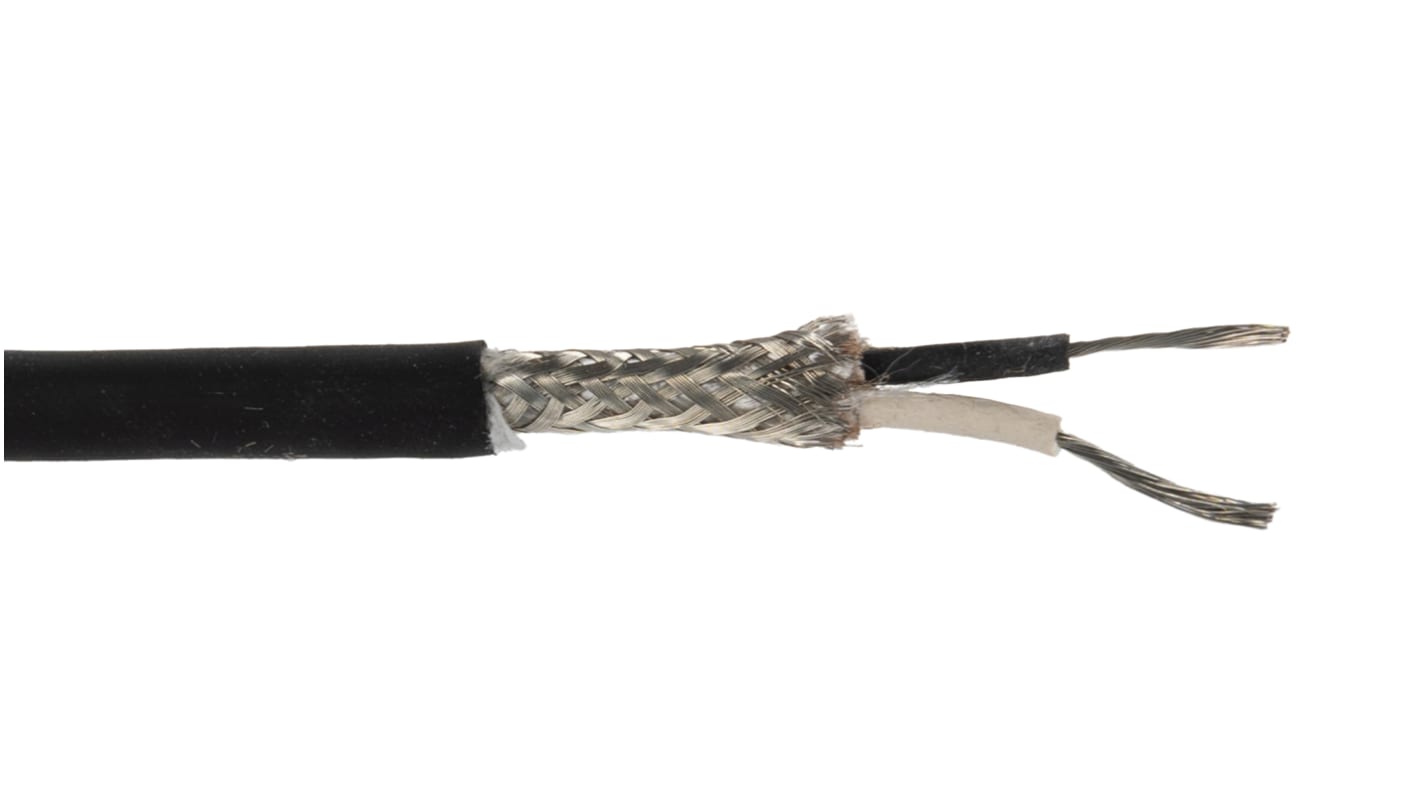

Belden8412 Series 2 Core Microphone Cable, 0.52 mm² CSA Screened, 6.65mm od, 100ft, Black

View all Audio Cable

Subtotal (1 reel of 30 metres)*

SGD450.51

(exc. GST)

SGD491.06

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 4 unit(s) ready to ship from another location
  • Plus 13 unit(s) shipping from 01 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +SGD450.51SGD15.017

*price indicative

RS Stock No.:
207-4794
Mfr. Part No.:
8412 010100
Manufacturer:
Belden
Find similar products by selecting one or more attributes.
Select all

Brand

Belden

Audio Cable Type

Microphone Cable

Number of Cores

2

Cross Sectional Area

0.52 mm²

Screened/Unscreened

Screened

Insulation Material

EPDM

Outer Diameter

6.65mm

Length

100ft

Minimum Operating Temperature

-50°C

Maximum Operating Temperature

+90°C

Sheath Colour

Black

American Wire Gauge

20 AWG

Characteristic Impedance

67 Ω

Sheath Material

EPDM

Voltage Rating

600 V

Capacitance Core To Core

108.24pF/m

Screen Type

Tinned Copper Braid

Conductor Strand Type

Stranded

Core Strands

26 x 34

Capacitance Core To Screen

190.24pF/m

Size of Strands

20 AWG

Conductor Material

Tinned Copper

Balanced

Yes

Number of Strands

26

Current Rating

4 A

Cable Shape

Multicore

Series

8412

Conductor Resistance

34.776904 Ω/km

Standards Met

China ROHS

COO (Country of Origin):
US

Belden 8412 Series Audio Cable, 2 Cores, 0.52mm² Cross Sectional Area - 8412 010100


This microphone cable features a robust construction designed for high-performance audio applications. With a length of 30 metres, this screened microphone cable incorporates dual conductors made of 20 AWG tinned copper, providing exceptional conductivity. The cable is encased in a durable EPDM jacket, ensuring reliability in various environmental conditions.

Features & Benefits


• Screened design minimises interference for clear audio transmission

• 20 AWG construction optimises signal clarity and performance

• Low capacitance prevents signal loss over long distances

• High-temperature tolerance makes it suitable for extreme environments

• Balanced audio configuration enhances sound quality in professional use

• Multicore structure ensures flexibility and ease of installation

Applications


• Used for studio recordings requiring interference-free sound

• Ideal for live performances where reliability is crucial

• Suitable for broadcasting needing high-quality audio delivery

• Commonly utilised in public address systems for clear speech

What makes this cable suitable for high-precision audio applications?


The low capacitance of 108.24 pF/m helps maintain signal integrity over distances, making it ideal for studio and live sound environments, allowing for balanced audio without loss or interference.

Can this cable withstand extreme temperatures?


Yes, it operates effectively between -50 °C and +90 °C, making it reliable in various environmental conditions and suitable for outdoor applications or venues with fluctuating temperatures.

Is the cable's shielding effective against interference?


Yes, the 85% tinned copper braid shielding provides excellent protection against external noise and interference, enhancing the overall audio quality during transmission.

How does the construction impact its flexibility?


The multicore design, combined with a cotton serve for additional durability, allows for easy handling and installation in tight spaces without compromising the cable's integrity.

What are the conductor specifications that contribute to its performance?


The dual 20 AWG conductors are designed with 26 strands of tinned copper, which maximises conductivity and ensures efficient signal transfer for both studio and live sound applications.
