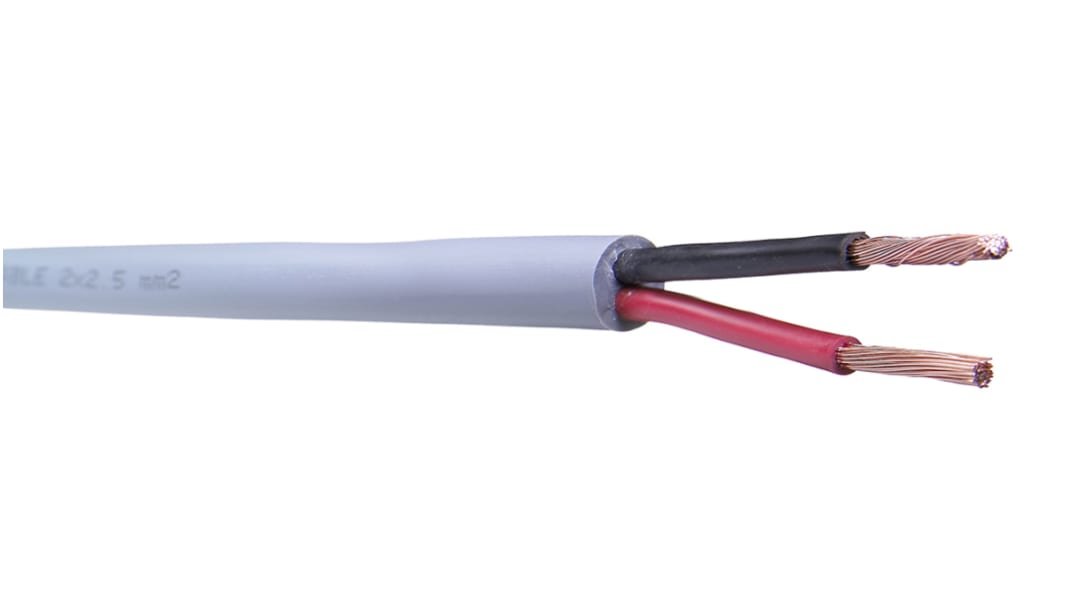

Belden70045LV Series 2 Core Speaker Cable, 1.5 mm² CSA, 6.8mm od, 100m, Black
- RS Stock No.:
- 187-6121
- Mfr. Part No.:
- 70045LV.00100
- Manufacturer:
- Belden
1 / 3
Subtotal (1 reel of 100 metres)**
SGD535.00
(exc. GST)
SGD583.15
(inc. GST)
7 In stock for delivery within 4 working days*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over SGD150.00 (ex GST)
Real time qty checker
Reel(s) | Per Reel | Per Metre** |
|---|---|---|
| 1 + | SGD535.00 | SGD5.35 |
**price indicative
- RS Stock No.:
- 187-6121
- Mfr. Part No.:
- 70045LV.00100
- Manufacturer:
- Belden
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Audio Cable Type | Speaker Cable | |
| Number of Cores | 2 | |
| Cross Sectional Area | 1.5 mm² | |
| Insulation Material | LSZH | |
| Outer Diameter | 6.8mm | |
| Length | 100m | |
| Minimum Operating Temperature | -5°C | |
| CPR Certification | B2ca | |
| Maximum Operating Temperature | +70°C | |
| Fire Behaviour | Flame Retardant | |
| Sheath Colour | Black | |
| Sheath Material | Low Smoke Zero Halogen (LSZH) | |
| Core Strands | 30/0.25 mm | |
| Conductor Strand Type | Stranded | |
| Number of Strands | 30 | |
| Series | 70045LV | |
| Standards Met | Euroclass B2ca-s1 d1 a1 | |
| Voltage Rating | 300 V | |
| Conductor Material | Bare Copper | |
| Conductor Resistance | 13 Ω/km | |
| Cable Shape | Multicore | |
Select all | ||
|---|---|---|
Brand Belden | ||
Audio Cable Type Speaker Cable | ||
Number of Cores 2 | ||
Cross Sectional Area 1.5 mm² | ||
Insulation Material LSZH | ||
Outer Diameter 6.8mm | ||
Length 100m | ||
Minimum Operating Temperature -5°C | ||
CPR Certification B2ca | ||
Maximum Operating Temperature +70°C | ||
Fire Behaviour Flame Retardant | ||
Sheath Colour Black | ||
Sheath Material Low Smoke Zero Halogen (LSZH) | ||
Core Strands 30/0.25 mm | ||
Conductor Strand Type Stranded | ||
Number of Strands 30 | ||
Series 70045LV | ||
Standards Met Euroclass B2ca-s1 d1 a1 | ||
Voltage Rating 300 V | ||
Conductor Material Bare Copper | ||
Conductor Resistance 13 Ω/km | ||
Cable Shape Multicore | ||
