Infineon, 2-Channel Class D, 40-Pin, 37W QFN MA2304PNSXUMA1
- RS Stock No.:
- 260-2680
- Mfr. Part No.:
- MA2304PNSXUMA1
- Manufacturer:
- Infineon

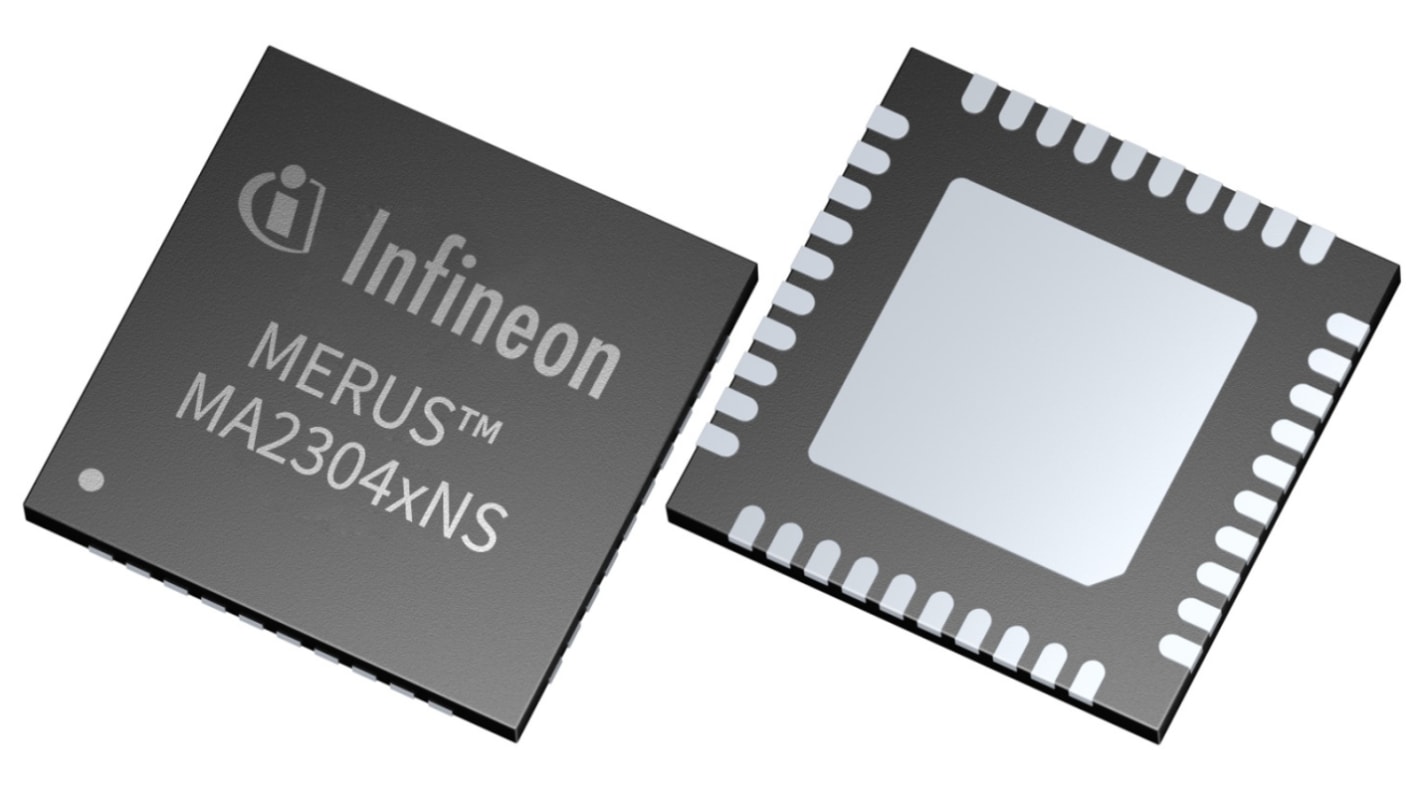

This image is representative of the product range
Stock information currently inaccessible
- RS Stock No.:
- 260-2680
- Mfr. Part No.:
- MA2304PNSXUMA1
- Manufacturer:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | Audio Amplifier IC | |
| Amplifier Type | Class D | |
| Output Power | 37W | |
| Application | Bluetooth Speaker, Laptop, Smart Speakers, Home Automation | |
| Amplifier Class | Class D | |
| Mount Type | Surface | |
| Number of Channels | 2 | |
| Package Type | QFN | |
| Pin Count | 40 | |
| Minimum Operating Temperature | -25°C | |
| Standards/Approvals | RoHS | |
| Width | 6mm | |
| Height | 0.9mm | |
| Length | 6mm | |
| Series | MERUS | |
| Minimum Supply Voltage | 20V | |
| Maximum Supply Voltage | 5.5V | |
| Maximum Operating Temperature | 85°C | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type Audio Amplifier IC | ||
Amplifier Type Class D | ||
Output Power 37W | ||
Application Bluetooth Speaker, Laptop, Smart Speakers, Home Automation | ||
Amplifier Class Class D | ||
Mount Type Surface | ||
Number of Channels 2 | ||
Package Type QFN | ||
Pin Count 40 | ||
Minimum Operating Temperature -25°C | ||
Standards/Approvals RoHS | ||
Width 6mm | ||
Height 0.9mm | ||
Length 6mm | ||
Series MERUS | ||
Minimum Supply Voltage 20V | ||
Maximum Supply Voltage 5.5V | ||
Maximum Operating Temperature 85°C | ||
Automotive Standard No | ||
The Infineon audio amplifier IC provides a multilevel switching amplifier technology by enabling the unmatched power efficiency at both low and high output power. The multilevel switching also relaxes EMI and enables inductor‑less applications with lower cost and no compromise in audio performance or efficiency.
Premium sound quality
Inductor-less output filtering at full power range
Extremely low idle power enables prolonged battery life
Excellent EMI performance
Flexible output configuration
