Infineon, SMPS Controller 7-Pin, DIP-7
- RS Stock No.:
- 273-2934
- Mfr. Part No.:
- ICE3AR1580VJZXKLA1
- Manufacturer:
- Infineon

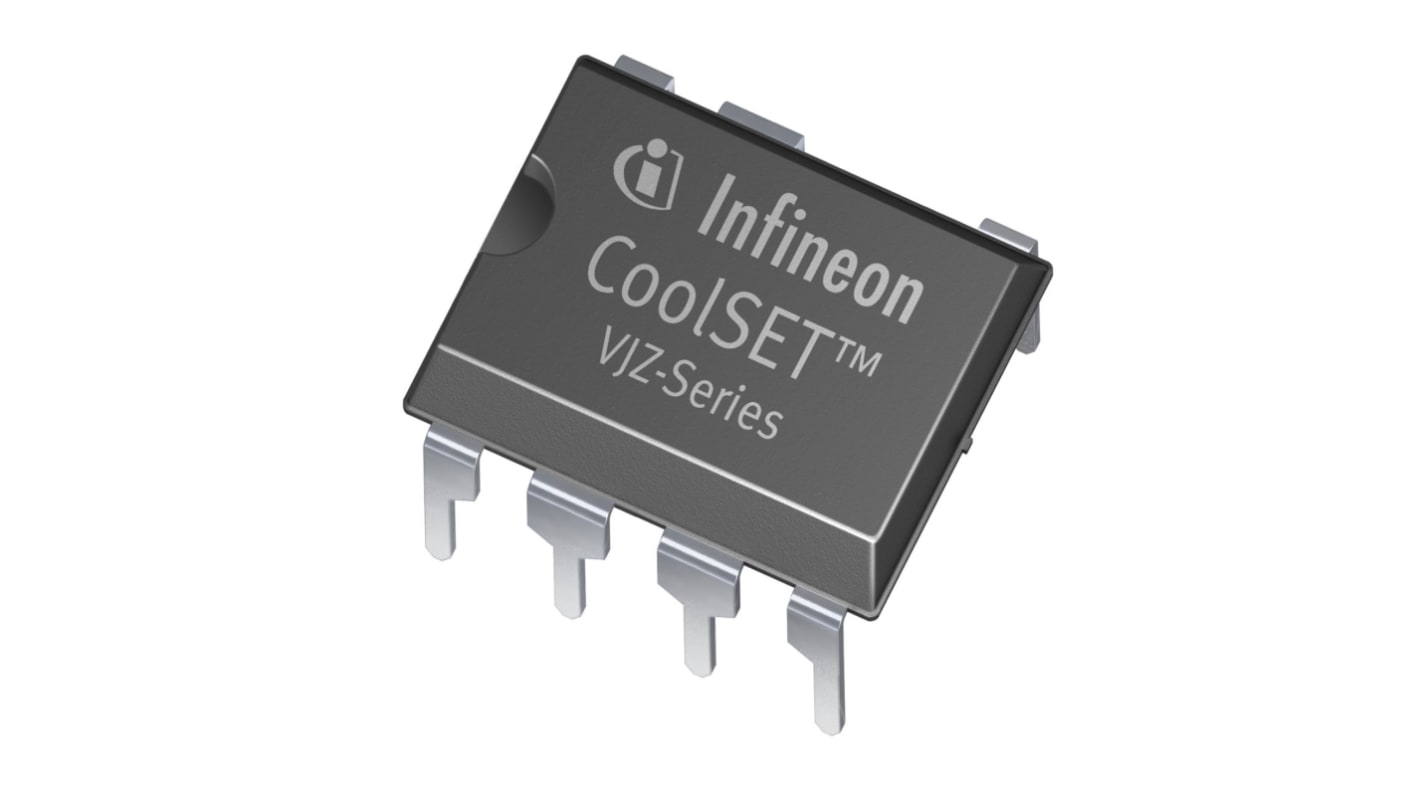

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
SGD3.09
(exc. GST)
SGD3.37
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
In Stock
- Plus 22 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | SGD3.09 |
| 10 - 24 | SGD2.65 |
| 25 - 99 | SGD2.60 |
| 100 - 249 | SGD2.32 |
| 250 + | SGD2.20 |
*price indicative
- RS Stock No.:
- 273-2934
- Mfr. Part No.:
- ICE3AR1580VJZXKLA1
- Manufacturer:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | SMPS Controller | |
| Maximum Input Voltage | 25V | |
| Output Power | 57W | |
| Mount Type | Through Hole | |
| Pin Count | 7 | |
| Switching Frequency | 100kHz | |
| Package Type | DIP-7 | |
| Minimum Input Voltage | 10.5V | |
| Topology | Flyback | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS, SVHC Free, RoHS Phthalates | |
| Series | CoolSET | |
| Supply Current | 5.7mA | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type SMPS Controller | ||
Maximum Input Voltage 25V | ||
Output Power 57W | ||
Mount Type Through Hole | ||
Pin Count 7 | ||
Switching Frequency 100kHz | ||
Package Type DIP-7 | ||
Minimum Input Voltage 10.5V | ||
Topology Flyback | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS, SVHC Free, RoHS Phthalates | ||
Series CoolSET | ||
Supply Current 5.7mA | ||
The Infineon Off line SMPS current mode controller provides good voltage margin of MOSFET, lowest standby power, selectable burst level, reduced output ripple during burst mode, robust protection with input OVP feature, accurate maximum power control for
Over temperature protection with 50°C hysteresis
Propagation delay compensation for both maximum load and burst mode
BiCMOS technology for low power consumption and wide VCC voltage range
