Texas Instruments, 5-Channel Buck, Boost, Buck Boost Switching Regulator, 1 A, 8 V 2600 kHz, WSON 10-Pin

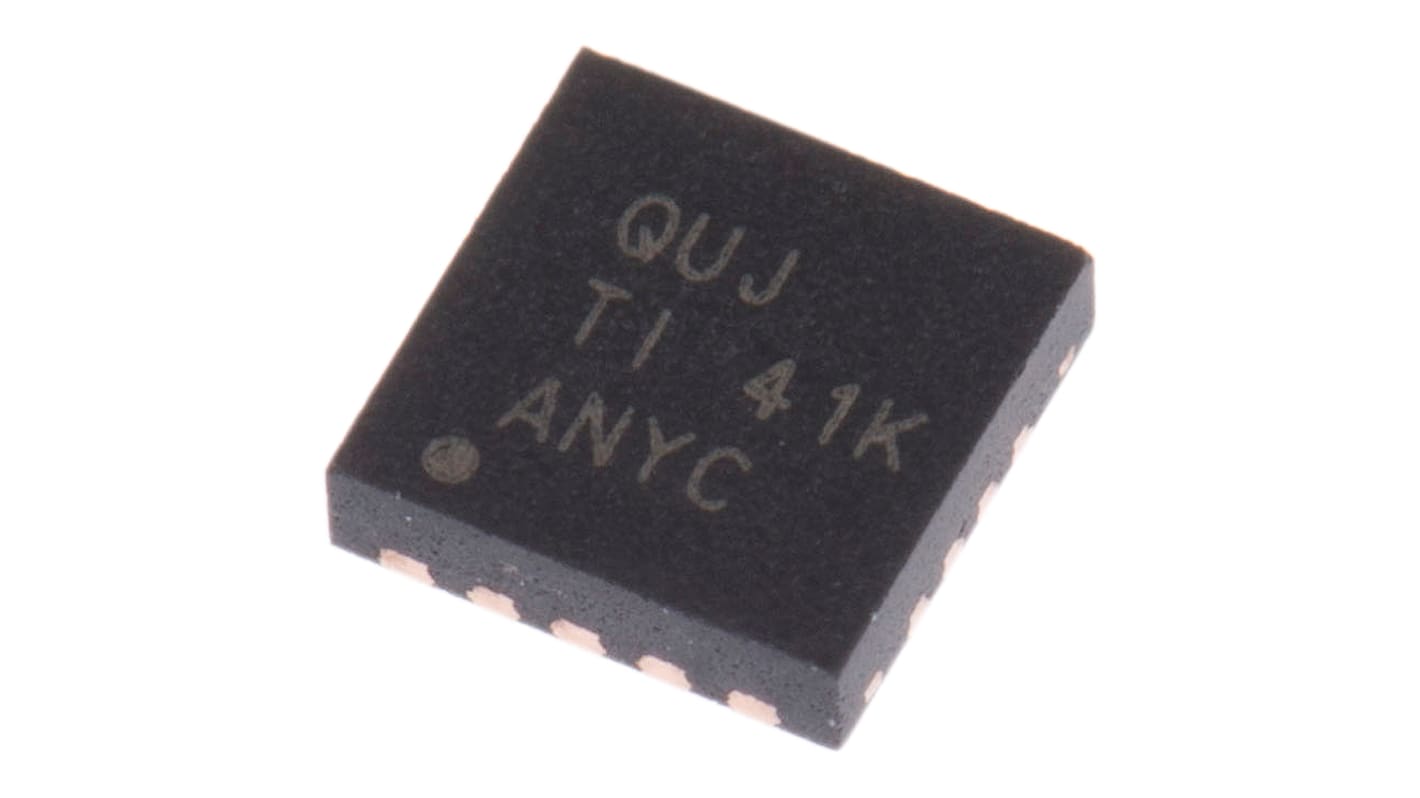

This image is representative of the product range

View all Voltage Regulators
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
121-9376
Mfr. Part No.:
TPS63060DSCT
Manufacturer:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Regulator Type

Buck, Boost

Product Type

Buck Boost Switching Regulator

Line Regulation

0.5 %

Switching Frequency

2600kHz

Load Regulation

0.5 %

Mount Type

Surface

Quiescent Current

60μA

Package Type

WSON

Pin Count

10

Output Current

1A

Output Type

Adjustable

Switching Regulator

Yes

Length

3.15mm

Height

0.75mm

Standards/Approvals

RoHS

Minimum Input Voltage

2.5V

Maximum Input Voltage

12V

Maximum Operating Temperature

85°C

Minimum Operating Temperature

-40°C

Automotive Standard

No

Step-Down/Step-Up DC/DC Converters (Integrated Switch), Texas Instruments


This highly efficient buck-boost converter uses a single inductor for DC to DC conversion. With automatic transmission between its Step Down and Step Up functions, buck-boost converters can be employed in battery powered products that use either a two-cell and three-cell alkaline battery, a NiCd or NiMH, or a single cell Lithium battery. This makes it Ideal for use with cellular phones and similar hand-held devices.

DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments


The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.
