DiodesZetex Precision Shunt Precision Voltage Reference 0.5 % 3-Pin SOT-23
- RS Stock No.:
- 206-0272
- Mfr. Part No.:
- LM4040C41QFTA
- Manufacturer:
- DiodesZetex

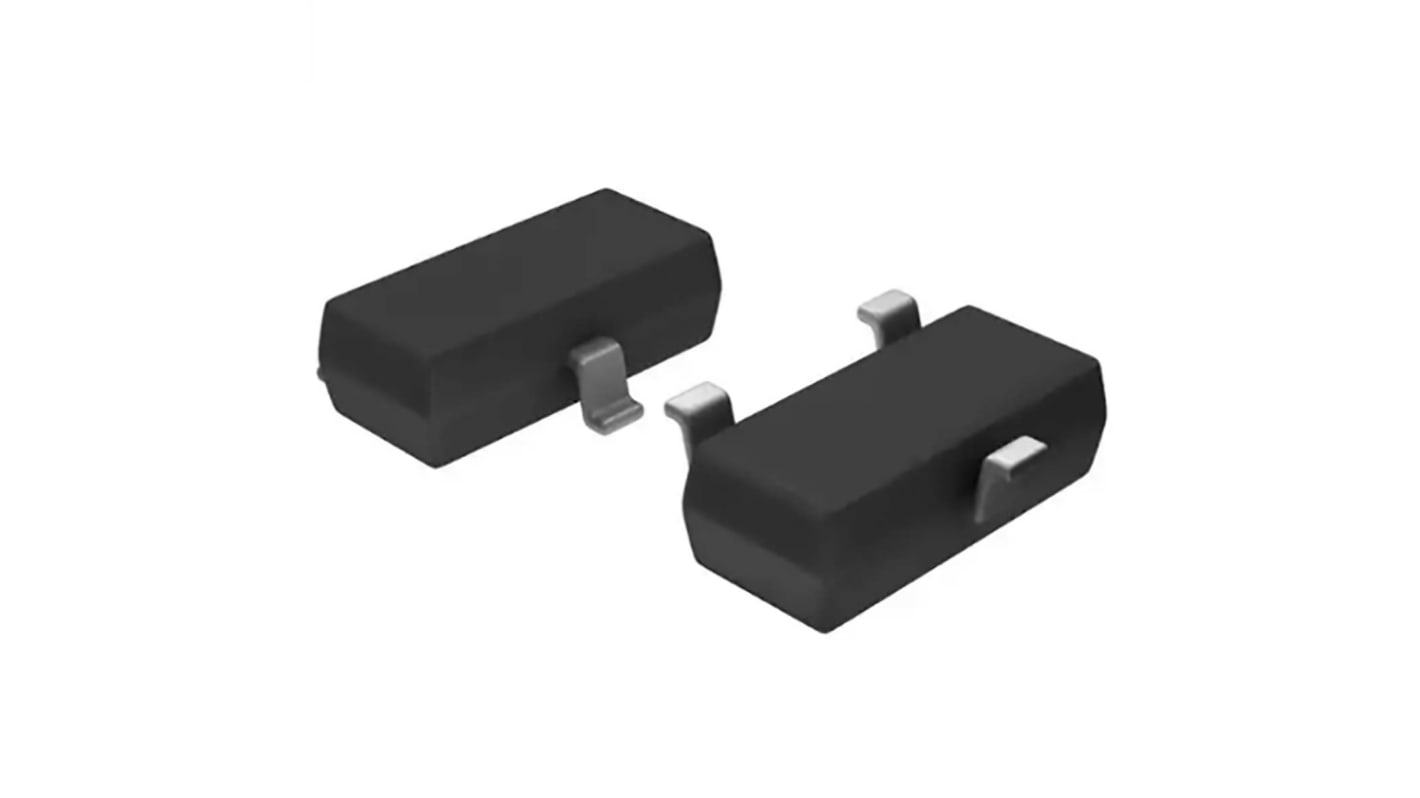

This image is representative of the product range
Bulk discount available
Subtotal (1 reel of 3000 units)*
SGD1,161.00
(exc. GST)
SGD1,266.00
(inc. GST)
Add 3000 units to get free delivery
Temporarily out of stock
- Shipping from 17 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 - 6000 | SGD0.387 | SGD1,161.00 |
| 9000 - 21000 | SGD0.353 | SGD1,059.00 |
| 24000 + | SGD0.347 | SGD1,041.00 |
*price indicative
- RS Stock No.:
- 206-0272
- Mfr. Part No.:
- LM4040C41QFTA
- Manufacturer:
- DiodesZetex
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Precision Voltage Reference | |
| Reference Voltage | 4.1V | |
| Package Type | SOT-23 | |
| Reference Type | Precision | |
| Output Voltage | 4.096 V | |
| Initial Accuracy | 0.5 % | |
| Mount Type | Surface | |
| Temperature Coefficient | 30 ppm/°C | |
| Topology | Shunt | |
| Output Current | 15mA | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 3 | |
| Maximum Operating Temperature | 125°C | |
| Length | 3mm | |
| Width | 1.4 mm | |
| Series | LM4040 | |
| Height | 1.1mm | |
| Standards/Approvals | No | |
| Output Type | Fixed | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Precision Voltage Reference | ||
Reference Voltage 4.1V | ||
Package Type SOT-23 | ||
Reference Type Precision | ||
Output Voltage 4.096 V | ||
Initial Accuracy 0.5 % | ||
Mount Type Surface | ||
Temperature Coefficient 30 ppm/°C | ||
Topology Shunt | ||
Output Current 15mA | ||
Minimum Operating Temperature -40°C | ||
Pin Count 3 | ||
Maximum Operating Temperature 125°C | ||
Length 3mm | ||
Width 1.4 mm | ||
Series LM4040 | ||
Height 1.1mm | ||
Standards/Approvals No | ||
Output Type Fixed | ||
Automotive Standard AEC-Q100 | ||
- COO (Country of Origin):
- CN
The DiodesZetex precision micro power shunt voltage reference is a family of bandgap circuit. The device are available in 0.5% B-grade tolerance. Its reference voltage is 4.093V which using SOT23 package which has 3 pin
Low output noise
Extended temperature range -40°C to +125°C
