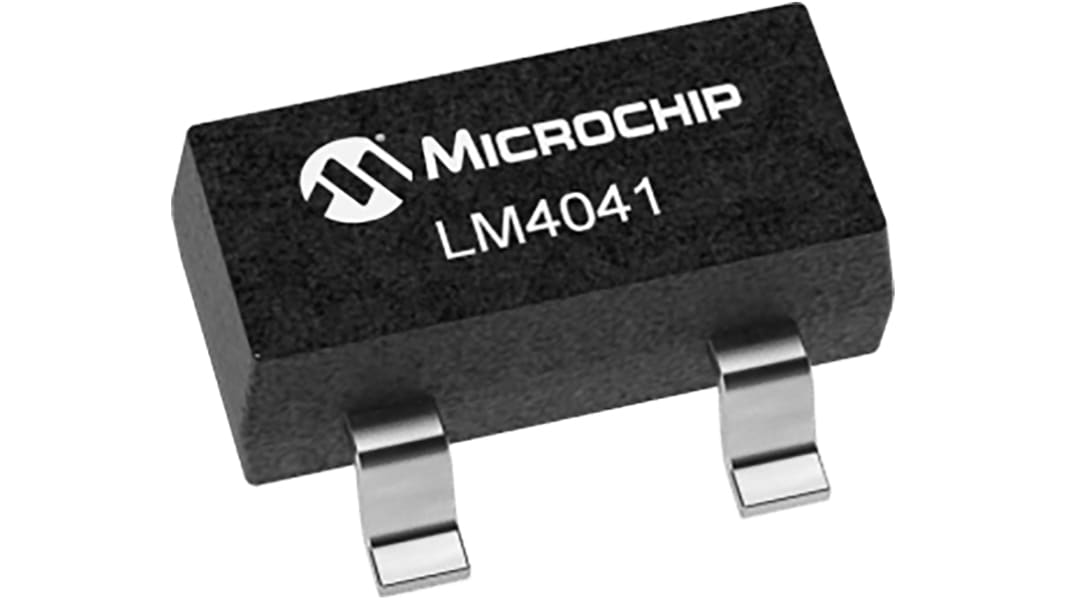

Microchip Technology LM4041CYM3-ADJ-TR, Adjustable Shunt Precision Voltage Reference 1.23V, ±0.5% 3-Pin, SOT-23

  • RS Stock No. 177-2828
  • Mfr. Part No. LM4041CYM3-ADJ-TR
  • Manufacturer Microchip
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Ideal for space critical applications, the LM4040 and LM4041 precision voltage references are available in the SOT-23 surface-mount package. The LM4040 is the available in fixed reverse breakdown voltages of 2.5V, 4.096V and 5.0V. The LM4041 is available with a fixed 1.225V or an adjustable reverse breakdown voltage. The minimum operating current ranges from 60μA for the LM4041-1.2 to 74μA for the LM4040-5.0. LM4040 versions have a maximum operating current of 15mA. LM4041 versions have a maximum operating current of 12mA. The LM4040 and LM4041 have bandgap reference temperature drift curvature correction and low dynamic impedance, ensuring stable reverse breakdown voltage accuracy over a wide range of operating temperatures and currents.

Additional Features: Small SOT-23 package
No output capacitor required
Tolerates capacitive loads
Fixed reverse breakdown voltages of 1.225V
Adjustable reverse breakdown version

Specifications
Attribute Value
Nominal Voltage 1.23V
Package Type SOT-23
Reference Type Adjustable, Precision
Initial Accuracy ±0.5%
Mounting Type Surface Mount
Topology Shunt
Maximum Output Current 12mA
Maximum Input Voltage 15 V
Maximum Output Voltage 10 V
Pin Count 3
Dimensions 0.9 x 2.92 x 1.3mm
Length 2.92mm
Maximum Operating Temperature +85 °C
Width 1.3mm
Height 0.9mm
Minimum Operating Temperature -40 °C
Temporarily out of stock - back order for despatch 13/02/2020, delivery within 3 working days from despatch date
Price Each (On a Reel of 3000)
SGD 0.365
(exc. GST)
SGD 0.391
(inc. GST)
units
Per unit
Per Reel*
3000 +
SGD0.365
SGD1,095.00
*price indicative
