Omron H3DS Series DIN Rail Timer Relay, 1-Contact, 24 → 48 V dc 230V ac, 24 V ac, 0.1 s → 120 h,
- RS Stock No.:
- 397-1220
- Mfr. Part No.:
- H3DS-XL
- Manufacturer:
- Omron
Get a bulk buy discount
Add 25 more to save SGD67.75
View bulk pricing optionsSubtotal (1 unit)*
SGD129.61
(exc. GST)
SGD141.27
(inc. GST)
FREE delivery for orders over $75.00, or create a business account to enjoy free delivery from just $28
In Stock
- 9 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 24 | SGD129.61 | - |
| 25 - 49 | SGD126.90 | SGD67.75 |
| 50 + | SGD123.11 | SGD325.00 |
*price indicative
- RS Stock No.:
- 397-1220
- Mfr. Part No.:
- H3DS-XL
- Manufacturer:
- Omron
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Timer Relay | |
| Mount Type | DIN Rail | |
| Function | Timer, Valve | |
| Time Range | 0.1 s → 120 h | |
| Number of Contacts | 1 | |
| Switching Voltage | 250V ac | |
| Number of Timer Functions | 1 | |
| IP Rating | IP30 | |
| Minimum Operating Temperature | -10°C | |
| Supply DC Voltage | 24 → 48 V dc | |
| Contact Current | 5A | |
| Timing Adjustment | Dial | |
| Supply AC Voltage | 230V ac, 24V ac | |
| Mode | ON Delay | |
| Maximum Operating Temperature | 55°C | |
| Terminal Type | Screw | |
| Width | 17.5mm | |
| Height | 73mm | |
| Standards/Approvals | VDE0106/P100, EN61812-1, UL508, CSA C22.2 No.14, EMC Directives, IEC60664-1 4 kV/2 | |
| Length | 80mm | |
| Series | H3DS | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Timer Relay | ||
Mount Type DIN Rail | ||
Function Timer, Valve | ||
Time Range 0.1 s → 120 h | ||
Number of Contacts 1 | ||
Switching Voltage 250V ac | ||
Number of Timer Functions 1 | ||
IP Rating IP30 | ||
Minimum Operating Temperature -10°C | ||
Supply DC Voltage 24 → 48 V dc | ||
Contact Current 5A | ||
Timing Adjustment Dial | ||
Supply AC Voltage 230V ac, 24V ac | ||
Mode ON Delay | ||
Maximum Operating Temperature 55°C | ||
Terminal Type Screw | ||
Width 17.5mm | ||
Height 73mm | ||
Standards/Approvals VDE0106/P100, EN61812-1, UL508, CSA C22.2 No.14, EMC Directives, IEC60664-1 4 kV/2 | ||
Length 80mm | ||
Series H3DS | ||

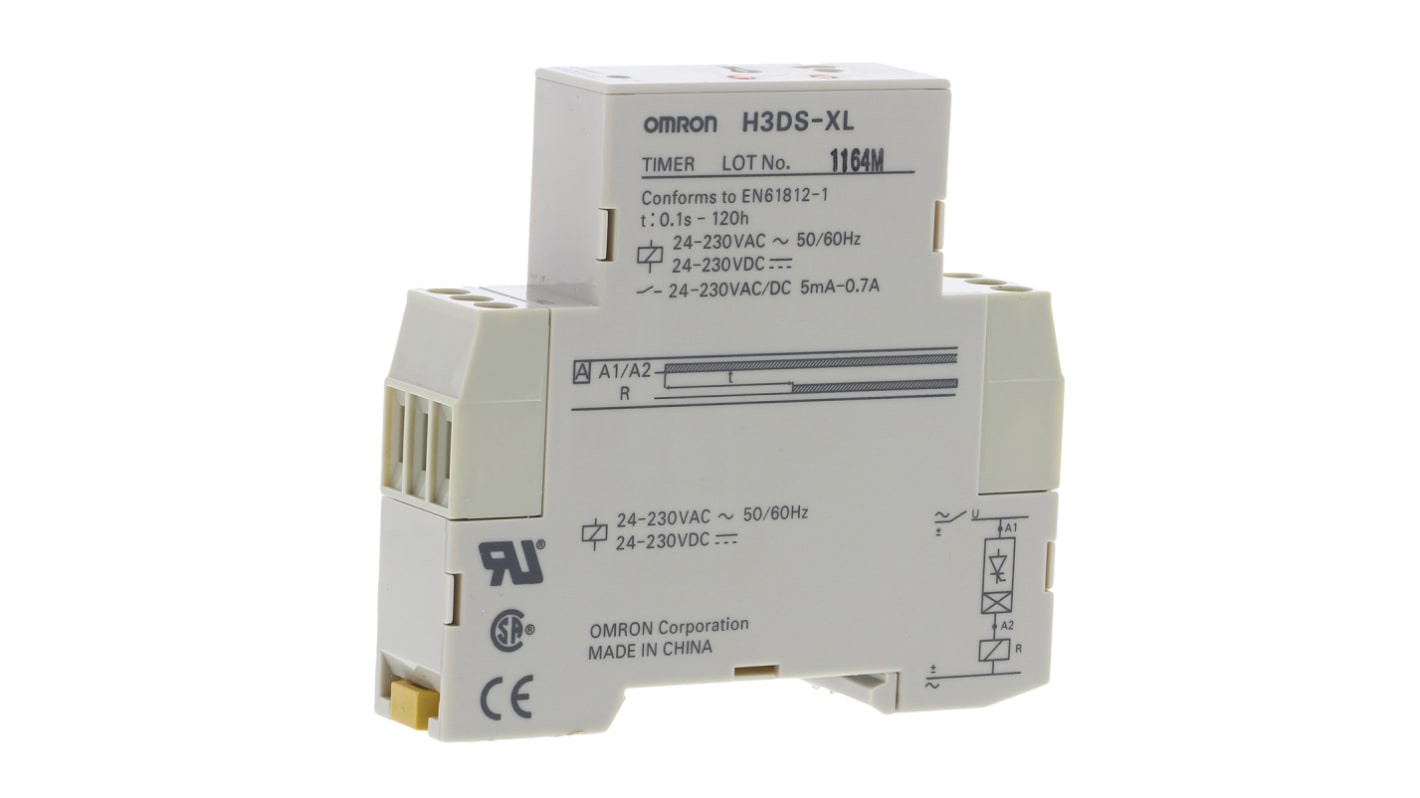

Omron H3DS Series Timer Relay, 24 to 230 V AC/DC Supply Voltage, 0.1 s to 120 h Time Range - H3DS-XL
This timer relay is designed to optimise timing control across various automation applications. With a supply voltage range of 24 to 230V AC/DC, it delivers precise ON delay operation. Measuring 17.5mm in width, 73mm in depth, and 80mm in length, this DIN rail mountable device ensures efficient space utilisation. Built for robust performance, it operates effectively within a temperature range of -10 °C to +55 °C.
Features & Benefits
• Supports a wide supply voltage range for versatile applications
• ON delay operation allows for precise timing control
• Single timer function offers simplicity in programming
• Adjustable time range from 0.1 s to 120 h for flexibility
• Screw terminal type for secure and easy connections
• Ag alloy contact material enhances operational longevity
Applications
• Used for industrial automation processes requiring precise timing
• Ideal for delay functions in electrical equipment operations
• Suitable for controlling motor start and stop sequences
• Employed in lighting control systems for energy efficiency
• Utilised in HVAC systems for optimal performance management
What are the key advantages of the adjustable time range?
The adjustable time range enhances flexibility, allowing for customised configurations on various operational timelines, accommodating both short and extended delays as required by the specific application.
How does the ON delay feature improve system efficiency?
The ON delay feature ensures that devices start at the optimal time, preventing overloads and ensuring smooth operation within various automated systems, which enhances reliability and operational efficiency.
What installation considerations should be taken into account with the screw terminal type?
When using the screw terminal type, it is important to ensure secure connections to prevent any electrical faults and to verify that wiring complies with standard safety regulations for optimal performance and safety.
Tamperproof - H3DS
Functions - 111
User can select functions to be accessible or locked to the operator, using tool, available separately
17.5mm wide
Approvals
UL, CSA
