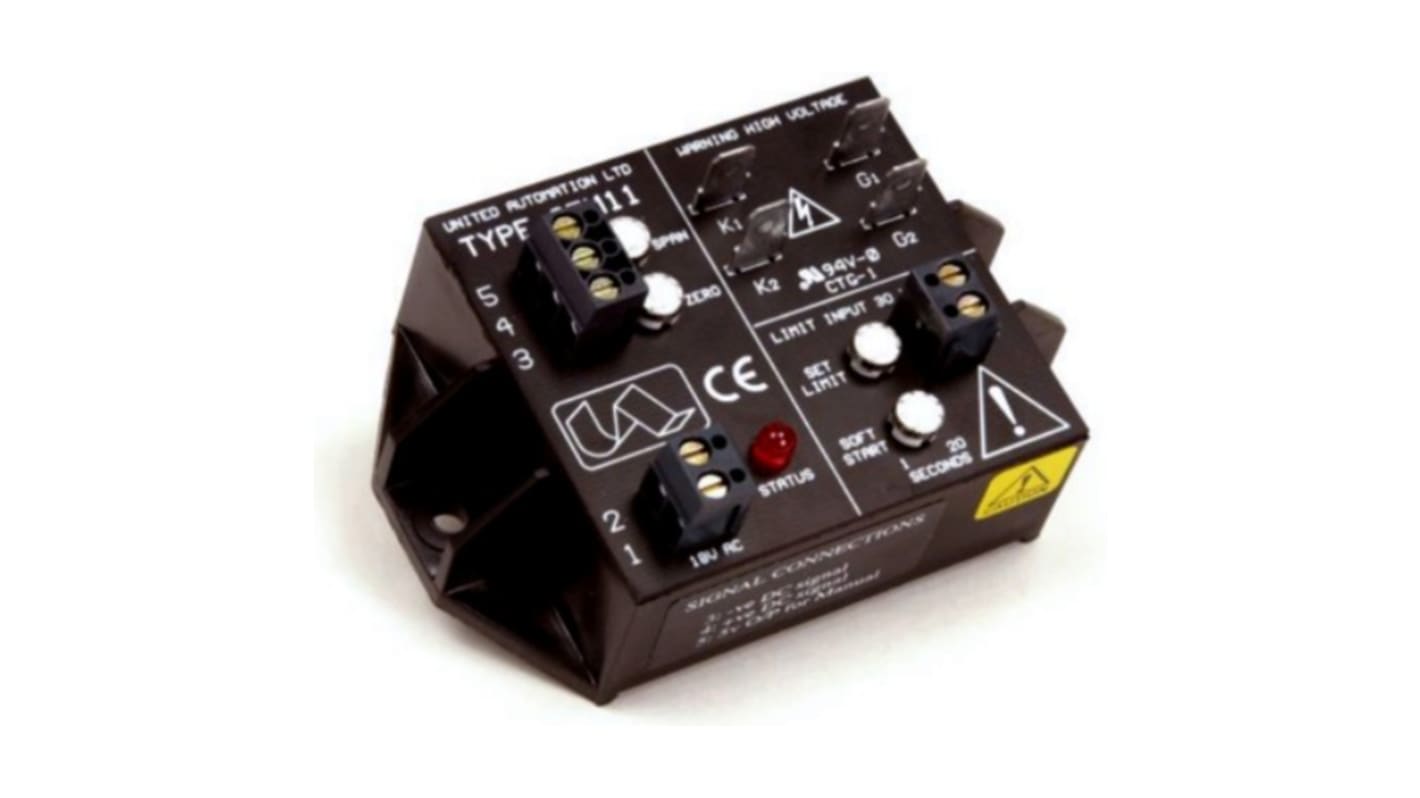

United Automation AFM11, Universal Phase Angle Trigger Module

View all Thyristors
Bulk discount available

Subtotal (1 unit)*

SGD135.91

(exc. GST)

SGD148.14

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • Plus 1 unit(s) shipping from 16 March 2026
  • Plus 9 unit(s) shipping from 23 March 2026
  • Plus 40 unit(s) shipping from 03 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 1SGD135.91
2 - 4SGD133.20
5 - 9SGD130.53
10 - 49SGD127.92
50 +SGD105.29

*price indicative

RS Stock No.:
489-3418
Distrelec Article No.:
172-05-453
Mfr. Part No.:
AFM11
Manufacturer:
United Automation
Find similar products by selecting one or more attributes.
Select all

Brand

United Automation

Product Type

Universal Phase Angle Trigger Module

Minimum Operating Temperature

0°C

Maximum Operating Temperature

75°C

Series

AFM11

Standards/Approvals

I.E.T. Regulations (BS7671), Low Voltage Directive (LVD), EMC Directive

Automotive Standard

No

COO (Country of Origin):
GB

Universal Phase Angle Trigger Module, AFM-11


Phase angle trigger module for resistive & inductive loads.

Single phase or phase-to-phase use

Fires triacs & thyristors up to 480V

Resistive & inductive, ac/dc loads

Adjustable soft-start

Adjustable current limit

Voltage control or 4-20mA current loop

Pulse train firing via remote power transformer

Low power consumption

Status indication

The number of complete mains cycles during fixed repeating periods (typically 1 to 10 seconds) is varied, thus altering the duty cycle or on-/off-time ratio. Trigger pulses coincide with the zero-crossing times of the mains supply thus ensuring no RFI is produced when using resistive loads.

Note

Power transformer NOT included
