IXYS MCD162-16IO1, Thyristor Module 1.6 kV 6.4 kA, 190 A 150 mA 1.25 V 5-Pin
- RS Stock No.:
- 194-209
- Distrelec Article No.:
- 302-53-470
- Mfr. Part No.:
- MCD162-16IO1
- Manufacturer:
- IXYS

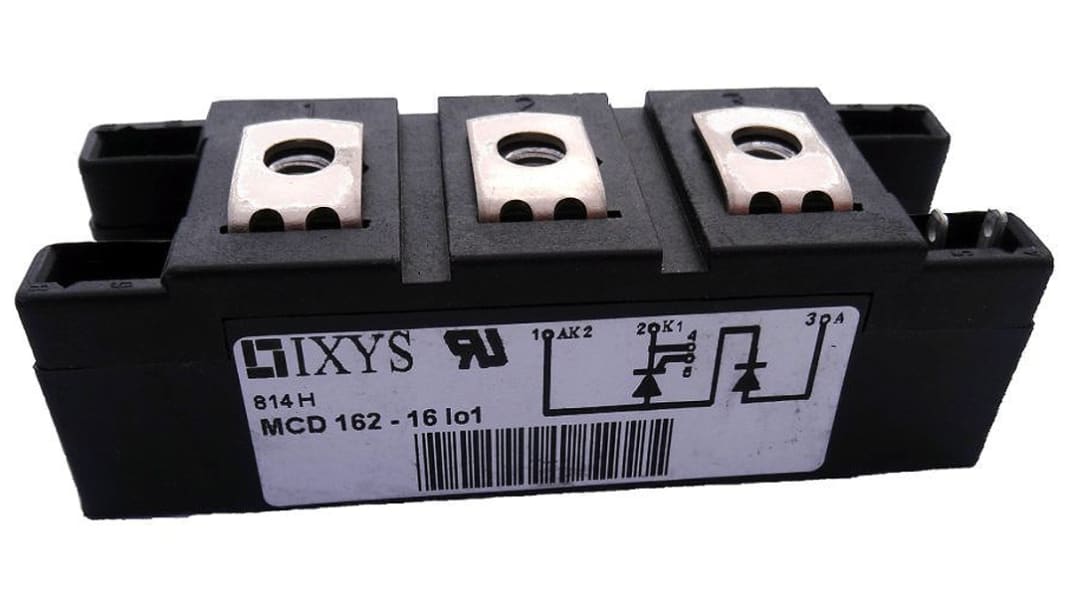

This image is representative of the product range
Subtotal (1 unit)*
SGD110.52
(exc. GST)
SGD120.47
(inc. GST)
FREE delivery for orders over $75.00, or create a business account to enjoy free delivery from just $28
In Stock
- Plus 10 unit(s) shipping from 12 October 2026
- Plus 24 unit(s) shipping from 25 November 2026
- Plus 36 unit(s) shipping from 10 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | SGD110.52 |
*price indicative
- RS Stock No.:
- 194-209
- Distrelec Article No.:
- 302-53-470
- Mfr. Part No.:
- MCD162-16IO1
- Manufacturer:
- IXYS
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | IXYS | |
| Product Type | Thyristor Module | |
| Rated Average On-State Current Irms | 190A | |
| Repetitive Peak Reverse Voltage VDRM | 1.6kV | |
| Surge Current Rating | 6.4kA | |
| Mount Type | Panel | |
| Maximum Gate Trigger Current Igt | 150mA | |
| Pin Count | 5 | |
| Maximum Gate Trigger Voltage Vgt | 2.5V | |
| Maximum Holding Current Ih | 200mA | |
| Maximum Operating Temperature | 125°C | |
| Width | 34mm | |
| Standards/Approvals | No | |
| Height | 30mm | |
| Length | 94mm | |
| Peak On-State Voltage | 1.25V | |
| Automotive Standard | No | |
| Repetitive Peak Off-State Current | 10mA | |
| Select all | ||
|---|---|---|
Brand IXYS | ||
Product Type Thyristor Module | ||
Rated Average On-State Current Irms 190A | ||
Repetitive Peak Reverse Voltage VDRM 1.6kV | ||
Surge Current Rating 6.4kA | ||
Mount Type Panel | ||
Maximum Gate Trigger Current Igt 150mA | ||
Pin Count 5 | ||
Maximum Gate Trigger Voltage Vgt 2.5V | ||
Maximum Holding Current Ih 200mA | ||
Maximum Operating Temperature 125°C | ||
Width 34mm | ||
Standards/Approvals No | ||
Height 30mm | ||
Length 94mm | ||
Peak On-State Voltage 1.25V | ||
Automotive Standard No | ||
Repetitive Peak Off-State Current 10mA | ||
MCD Series Thyristor & Diode Module, IXYS
Thyristor in series with a Diode for mains voltage 50/60 Hz rectification;Package with Direct Copper Bonding (DCB) ceramic base plate
Thyristors - IXYS
A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR).
Encapsulated modules with electrically isolated base plate. Suitable for applications such as battery chargers, welders and plating equipment, regulated power supplies and temperature and speed control circuits.
Approvals
UL recognised component
