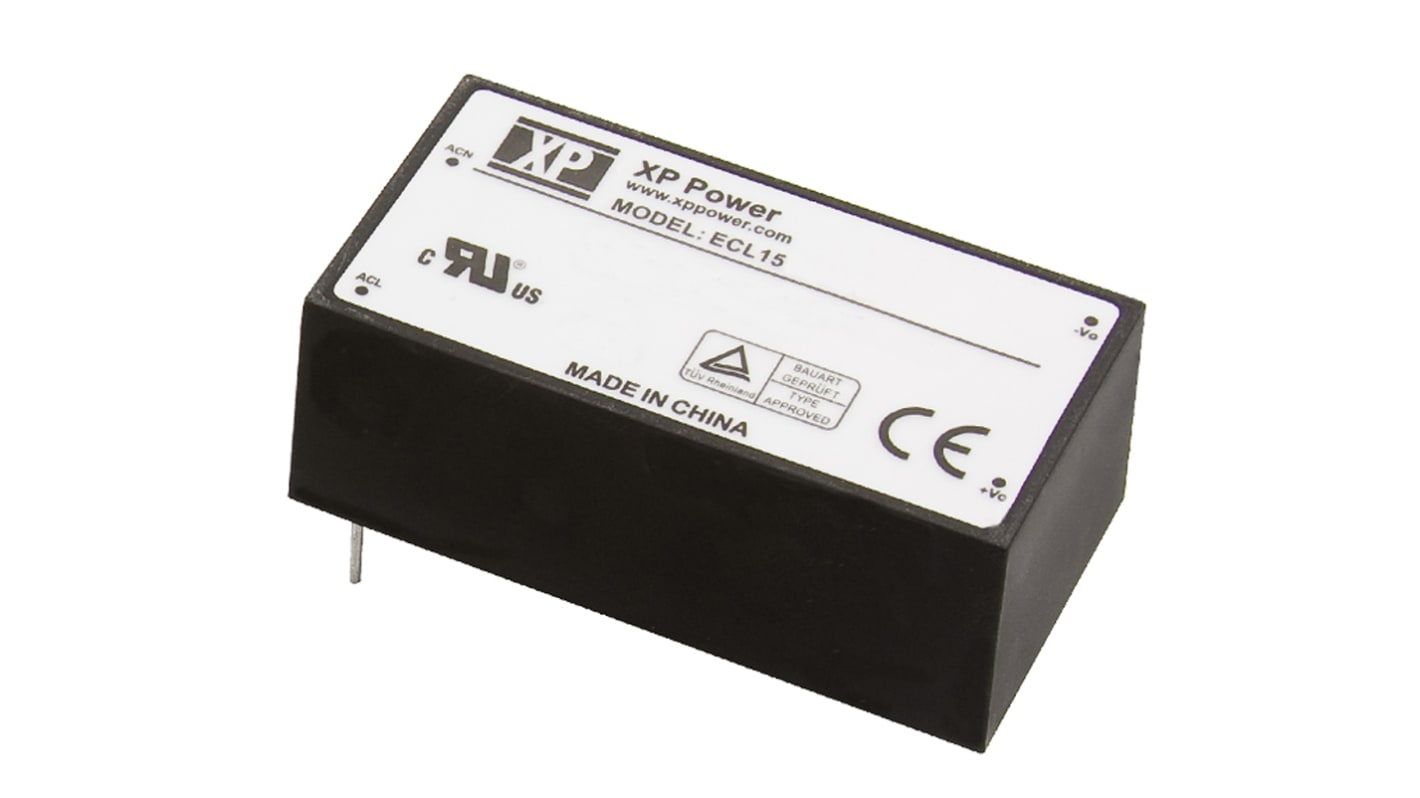

XP Power Switching Power Supply, ECL15UT03-E 3 Output 15V dc, 2 A, 15 W, Input 85V ac to 264V ac

View all Switching Power Supplies
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
122-7770
Distrelec Article No.:
302-41-444
Mfr. Part No.:
ECL15UT03-E
Manufacturer:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Product Type

Switching Power Supply

Maximum Output Voltage

15V dc

Mount Type

PCB

Power

15W

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

70°C

Standards/Approvals

EN 61000-3-4-3, UL 60950-1, IEC 60950-1, EN 61000-4-8, EN 61000-4-6, EN 61000-4-5, EN 61000-4-4, EN 55022, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-3-4-2, EN 61000-4-11

Length

65mm

Depth

24.4mm

Weight

95g

Series

ECL

Efficiency

81%

Maximum Input Voltage

264V ac

Hazardous Area Certification

No

Minimum Input Voltage

85V ac

COO (Country of Origin):
CN

XP Power - ECL Series of 5-30 W AC-DC Power Supplies


The ECL series from XP Power offers an excellent range of single, dual and triple output, 5 W to 30 W, AC-DC power supplies. These ultra-compact power supplies are available in open-frame PCB, open-frame chassis mount, encapsulated PCB and encapsulated chassis mount versions. The range attributes less than 0.3 W no load input power, peak load capability and a high efficiency of up to 84%.

5 W to 30 W AC-DC power supplies

Single, dual and triple outputs

Encapsulated PCB and chassis mount versions

Open-frame PCB and chassis mount versions

Ultra-compact size

<0.3 W no load input power

Peak load capability

High efficiency up to 84%

-20 °C to +70 °C Operating temperature
