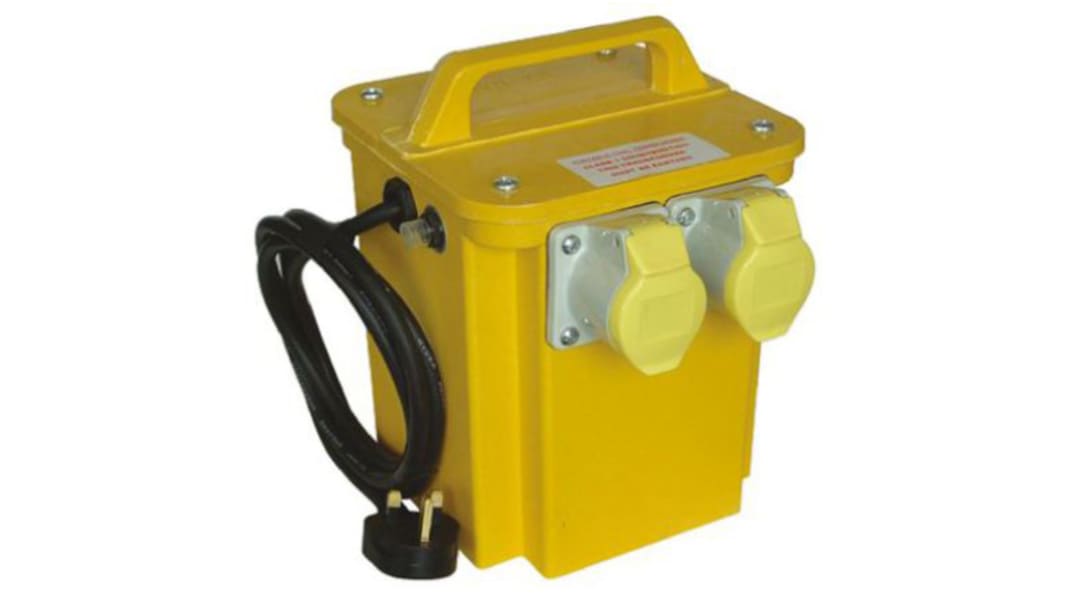

    Carroll & Meynell Single Phase 750VA Site Transformer, 230V ac Primary, ±55V ac Secondary, 6A O/P

    Carroll & Meynell
    RS Stock No.:
    260-4272
    Mfr. Part No.:
    CM15002
    Manufacturer:
    Carroll & Meynell
    View all Site Transformers
    2 In stock for delivery within 4 working days
    Add to Basket
    units

    Added

    Price Each

    SGD344.03

    (exc. GST)

    SGD371.55

    (inc. GST)

    unitsPer unit
    1 +SGD344.03
    RS Stock No.:
    260-4272
    Mfr. Part No.:
    CM15002
    Manufacturer:
    Carroll & Meynell

    Legislation and Compliance

    COO (Country of Origin):
    GB

    Product Details

    Portable Safety Isolating Transformers, 1-phase 230Vac in, 110Vac out


    Brought to you by Carroll & Meynell, this high quality portable safety isolating transformers provides safe site electrics for power tools and lighting. Encased in a rugged insulated and splashproof GRP enclosure, this high quality safety isolating transformer is suited for tough conditions.

    Features and Benefits:
    • Double-wound construction
    • Secondary centre-tap earthed to minimise shock risk
    • Thermal safety fuse embedded into primary winding
    • Resettable thermal cut-out in primary circuit to prevent overload
    • Approx. 2m mains cable fitted with UK 13A plug (plug not fitted to CM40002, see Note below)

    This range of Portable Safety Isolating Tranformers includes:
    • Stock number 260-4244 is a single socket 375VA transformer
    • Stock number 260-4250 is a single socket 500VA transformer
    • Stock number 260-4272 is a dual socket 750VA transformer
    • Stock number 260-4288 is a dual socket 1125VA transformer
    • Stock number 260-4294 is a dual socket 1650VA transformer
    • Stock number 260-4301 is a dual socket 2000VA transformer

    Note

    1) CM40002 (260-4301) maximum input current 23A. It is recommended that this unit is connected into a suitably fused high-current circuit. Maximum output must not exceed 16A per socket outlet. VA tool rating is for 25% duty cycle, i.e. 5 minutes on / 15 minutes off
    2) The dimensional information given is for the body only and does not account for the protrusion of the sockets from the front of the body

    Specifications

    AttributeValue
    Primary Voltage Rating230V ac
    Secondary Voltage Rating±55V ac
    Power Rating750VA
    Number of Phases1
    Output Current6A
    SeriesCM15002
    Plug TypeType G - British 3-Pin
    Socket TypeBS EN 60309
    Weight11.5kg
    Length180mm
    Width255mm
    Depth170mm
    Dimensions170 x 255 x 180mm
    Mounting TypeFree Standing
    Maximum Operating Frequency60Hz
    Minimum Operating Frequency50Hz
