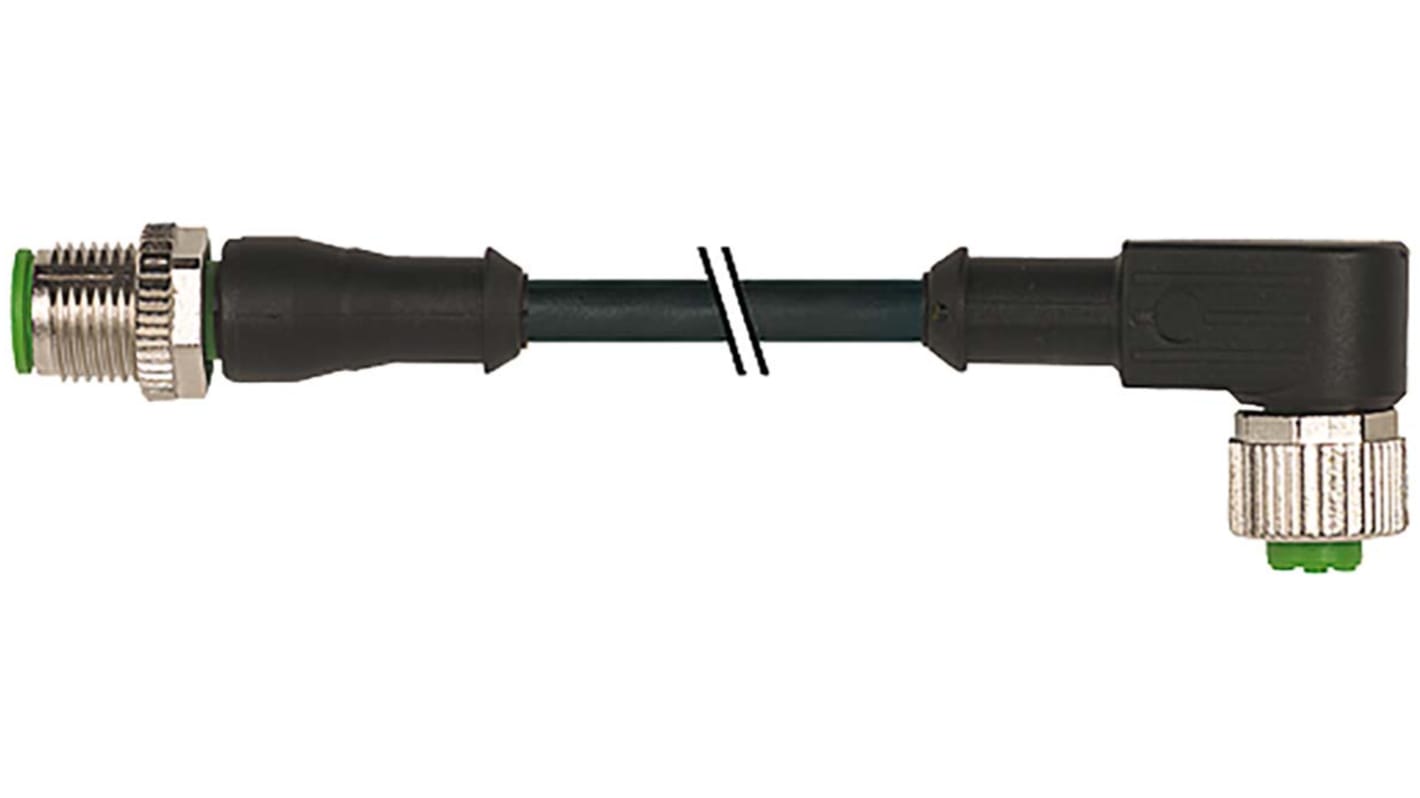

Murrelektronik Limited Straight Male 4 way M12 to Right Angle Female 4 way M12 Sensor Actuator Cable, 600mm

RS Stock No.:: 196-0695
Mfr. Part No.:: 7000-40121-6340060
Manufacturer:: Murrelektronik Limited

Murrelektronik Limited Straight Male 4 way M12 to Right Angle Female 4 way M12 Sensor Actuator Cable, 600mm

Bulk discount available

Subtotal (1 unit)**

SGD38.50

(exc. GST)

SGD41.96

(inc. GST)

7 In stock for delivery within 5 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over SGD150.00 (ex GST)

Real time qty checker

Units	Per unit
1 - 4	SGD38.50
5 - 9	SGD37.37
10 - 24	SGD35.41
25 +	SGD34.63

**price indicative

RS Stock No.:: 196-0695
Mfr. Part No.:: 7000-40121-6340060
Manufacturer:: Murrelektronik Limited

7000-40121-6340060 Datasheet

Attribute	Value
Series	A-Coded
Cross Sectional Area	0.34 mm²
Number of Cores	4
Sheath Colour	Black
Sheath Material	PUR
Length	600mm
Connector 1	M12
Connector 1 Number of Contacts	4
Connector 1 Gender	Male
Connector 1 Orientation	Straight
Connector 2 Number of Contacts	4
Connector 2 Housing Gender	Female
Connector 2 Gender	Female
Connector 2 Orientation	Right Angle
Connector 2	M12
Current Rating	4 A
Voltage Rating	30 V ac/dc, 250 V ac/dc
IP Rating	IP65, IP66K, IP67
American Wire Gauge	22 AWG
Conductor Resistance	57 O/km
Minimum Bend Radius	22.5 (Fixed) mm, 45 (Moving) mm
Fire Behaviour	Flame Retardant
Size of Strands	0.1 mm
Minimum Operating Temperature	-25 (Mobile) °C, -40 (Fixed) °C
Maximum Operating Temperature	+80 (Fixed, +85 °C, Mobile) °C
Number of Strands	42
Outer Diameter	4.5mm
Connector 1 Housing Gender	Male
Operating Temperature Range	-25 → +80 (Mobile) °C, -25 → +85 °C, -40 → +80 (Fixed) °C
Oil Resistant	Yes
Core Strands	42 x 0.1 mm
Cable Shape	Single Core

Murrelektronik Limited Straight Male 4 way M12 to Right Angle Female 4 way M12 Sensor Actuator Cable, 600mm
