IXYS 300 V 90 A Diode Fast Recovery 4-Pin SOT-227

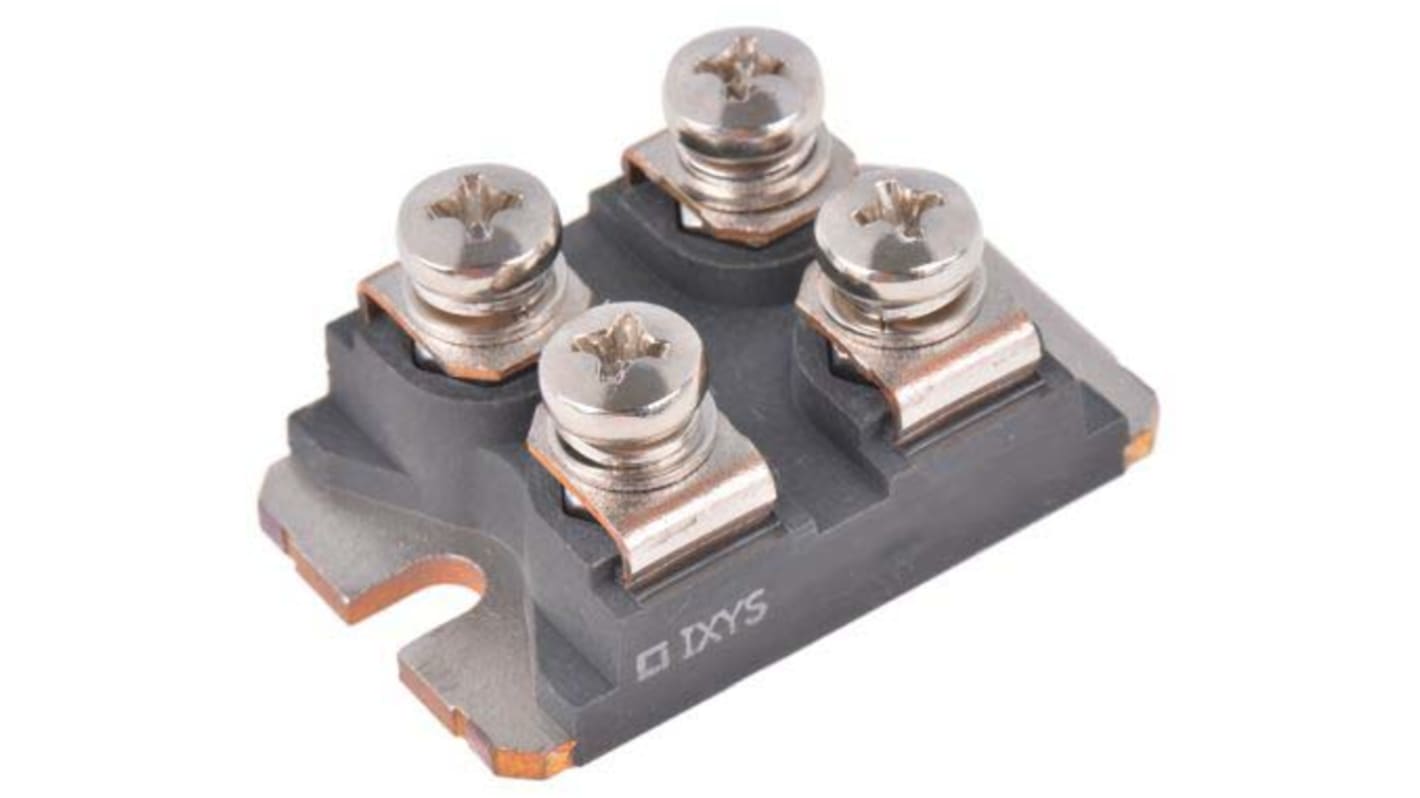

This image is representative of the product range

View this category

Subtotal (1 unit)*

SGD62.15

(exc. GST)

SGD67.74

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 25 unit(s) ready to ship from another location
  • Plus 52 unit(s) shipping from 14 January 2026
  • Plus 10 unit(s) shipping from 11 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +SGD62.15

*price indicative

RS Stock No.:
135-8283
Distrelec Article No.:
302-53-218
Mfr. Part No.:
DSEP2x91-03A
Manufacturer:
IXYS
Find similar products by selecting one or more attributes.
Select all

Brand

IXYS

Product Type

Diode

Mount Type

Panel

Package Type

SOT-227

Maximum Continuous Forward Current If

90A

Peak Reverse Repetitive Voltage Vrrm

300V

Diode Configuration

Isolated

Rectifier Type

Fast Recovery

Pin Count

4

Peak Non-Repetitive Forward Surge Current Ifsm

1kA

Minimum Operating Temperature

-40°C

Peak Reverse Current Ir

15A

Maximum Forward Voltage Vf

1.86V

Maximum Operating Temperature

125°C

Width

25.25 mm

Length

38.23mm

Standards/Approvals

No

Height

12.22mm

Distrelec Product Id

30253218

Automotive Standard

No

DSEP2x series Dual FRED Diode Modules


The IXYS DSEP2x series modules contain two isolated Fast Recovery Epitaxial Diodes (FRED) in a single moulded package with M4 screw connections and two-hole screw isolated fixing base. The FRED diodes feature low reverse recovery currents which reduce power losses and improve switching efficiency. The very short reverse recovery time with excellent soft recovery behaviour results in improved EMI/RFI performance.

• Planar passivated chips

• Improved thermal behaviour

• Very low leakage current

• Soft reverse recovery for low EMI/RFI

• Avalanche voltage rated for reliable operation

Diodes and Rectifiers, Ixys
