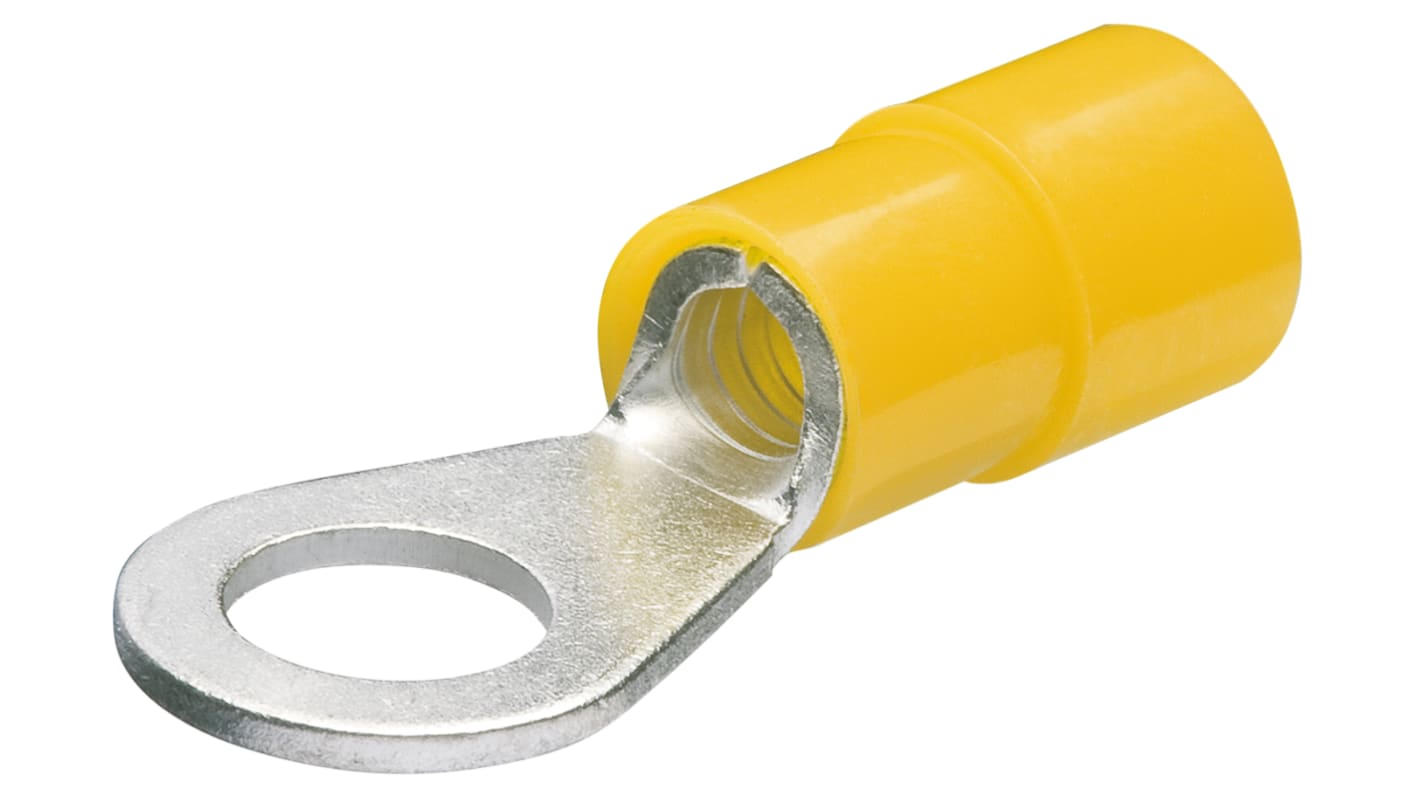

Knipex, 97 99 180 Insulated Ring Terminal, M10 Stud Size 12 AWG 10 AWG Wire Size, Yellow
- RS Stock No.:
- 267-7669
- Mfr. Part No.:
- 97 99 180
- Manufacturer:
- Knipex
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 267-7669
- Mfr. Part No.:
- 97 99 180
- Manufacturer:
- Knipex
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Knipex | |
| Product Type | Ring Terminal | |
| Series | 97 99 180 | |
| Insulation | Insulated | |
| Insulation Material | Nylon | |
| Inner Ring Diameter | 10mm | |
| Outer Ring Diameter | 10mm | |
| Minimum Wire Size AWG | 12AWG | |
| Maximum Wire Size AWG | 10AWG | |
| Stud Size | M10 | |
| Colour | Yellow | |
| Contact Material | Copper Tin | |
| Contact Plating | Tin Plated | |
| Standards/Approvals | REACH Compliant, DIN 46237 | |
| Minimum Operating Temperature | 105°C | |
| Maximum Operating Temperature | 105°C | |
| Minimum Wire Size mm² | 4mm² | |
| Maximum Wire Size mm² | 6mm² | |
| Select all | ||
|---|---|---|
Brand Knipex | ||
Product Type Ring Terminal | ||
Series 97 99 180 | ||
Insulation Insulated | ||
Insulation Material Nylon | ||
Inner Ring Diameter 10mm | ||
Outer Ring Diameter 10mm | ||
Minimum Wire Size AWG 12AWG | ||
Maximum Wire Size AWG 10AWG | ||
Stud Size M10 | ||
Colour Yellow | ||
Contact Material Copper Tin | ||
Contact Plating Tin Plated | ||
Standards/Approvals REACH Compliant, DIN 46237 | ||
Minimum Operating Temperature 105°C | ||
Maximum Operating Temperature 105°C | ||
Minimum Wire Size mm² 4mm² | ||
Maximum Wire Size mm² 6mm² | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW
The Knipex cable connectors, eye type that comes in insulated material in 100 pieces each.
Length of cable should be 6 millimetre square
It is made of brass material
Insulation is of nylon
