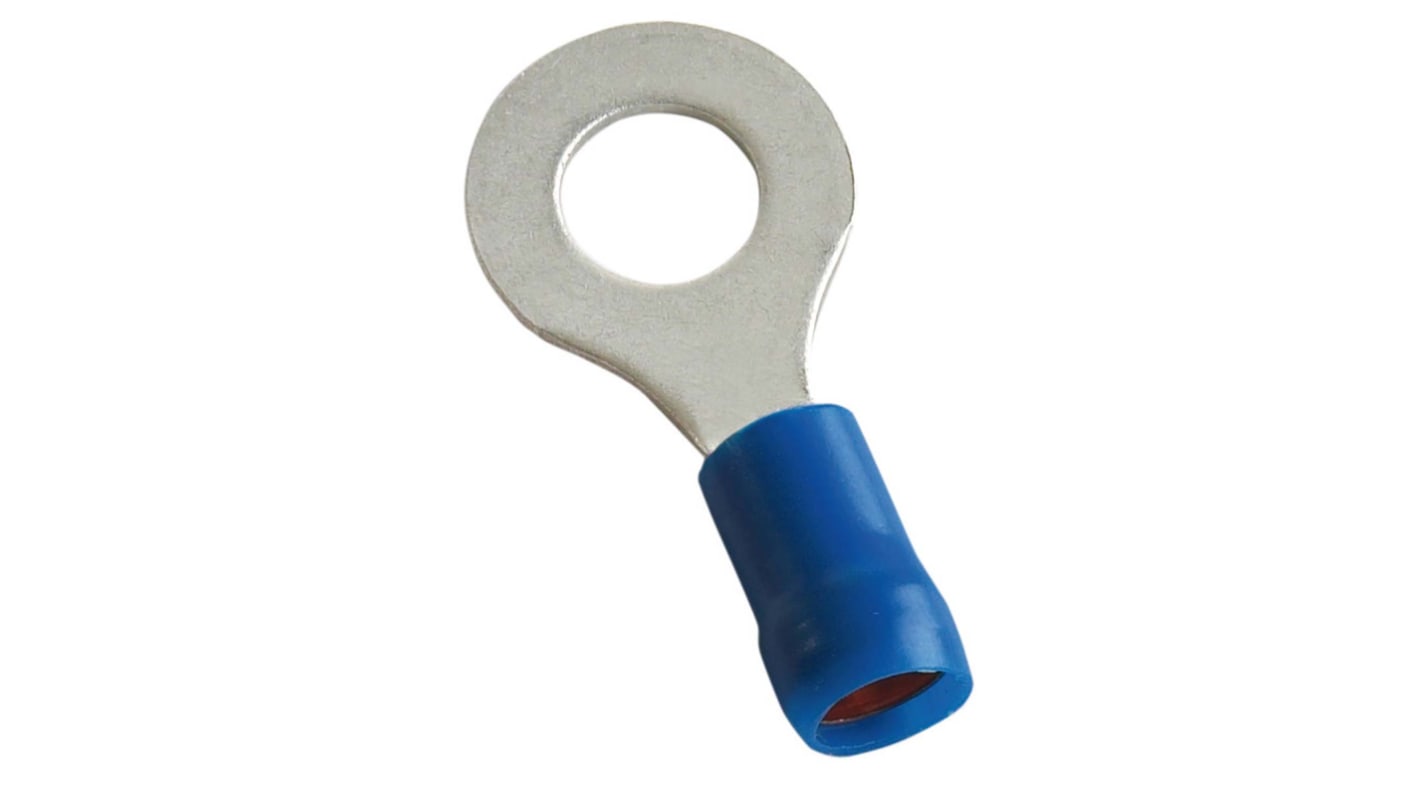

MECATRACTION, S Insulated Ring Terminal, M6 Stud Size to 2,5mm² Wire Size, Blue

View all Ring Terminals
Bulk discount available

Subtotal (1 box of 100 units)*

SGD53.70

(exc. GST)

SGD58.50

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • Plus 9,800 unit(s) shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
100 - 400SGD0.537SGD53.70
500 +SGD0.483SGD48.30

*price indicative

SEA- RSPROC&C-PDP-1025
RS Stock No.:
200-7001
Mfr. Part No.:
C100SB2-6
Manufacturer:
MECATRACTION
Find similar products by selecting one or more attributes.
Select all

Brand

MECATRACTION

Series

S

Series Number

C100

Insulation

Insulated

Insulation Material

Polycarbonate

Outer Ring Diameter

12.5mm

Inner Ring Diameter

6.3mm

Maximum Wire Size mm²

2,5mm²

Stud Size

M6

Colour

Blue

Contact Plating

Tin

Contact Material

Copper

Overall Length

27mm

RoHS Status: Exempt

COO (Country of Origin):
FR
C100SB2-6

The Mecatraction preinsulated double crimp ring terminal.

Tin-plated copper
Barrel with funnel entry
Grooves in the barrel for a better electrical contact and a better tensile strength
Copper sleeve for crimping insulation giving better resistance to vibration
Polycarbonate insulation sleeve
Max. operating temperature: +125°C
Flammability rating: UL94V0
