TE Connectivity, 60394 Uninsulated Ring Terminal, 10 Stud Size 20 AWG 16 AWG Wire Size, Yellow
- RS Stock No.:
- 164-2351
- Mfr. Part No.:
- 60394-1
- Manufacturer:
- TE Connectivity

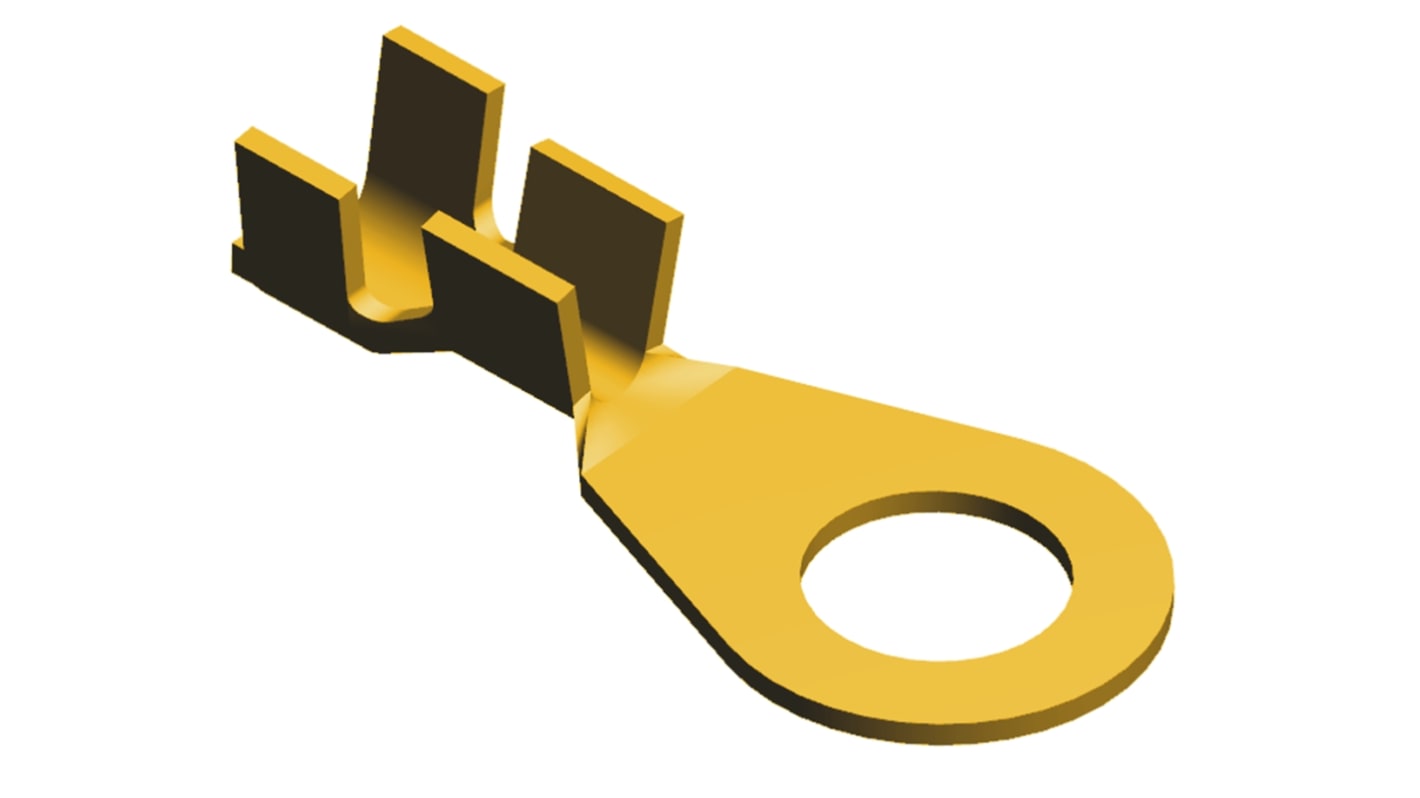

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 164-2351
- Mfr. Part No.:
- 60394-1
- Manufacturer:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Ring Terminal | |
| Series | 60394 | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 5mm | |
| Outer Ring Diameter | 8.69mm | |
| Maximum Wire Size AWG | 16AWG | |
| Minimum Wire Size AWG | 20AWG | |
| Overall Length | 19.41mm | |
| Stud Size | 10 | |
| Colour | Yellow | |
| Contact Material | Brass | |
| Thickness | 0.51mm | |
| Standards/Approvals | No | |
| Maximum Wire Size mm² | 1.4mm² | |
| Maximum Operating Temperature | 110°C | |
| Minimum Wire Size mm² | 0.5mm² | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Ring Terminal | ||
Series 60394 | ||
Insulation Uninsulated | ||
Inner Ring Diameter 5mm | ||
Outer Ring Diameter 8.69mm | ||
Maximum Wire Size AWG 16AWG | ||
Minimum Wire Size AWG 20AWG | ||
Overall Length 19.41mm | ||
Stud Size 10 | ||
Colour Yellow | ||
Contact Material Brass | ||
Thickness 0.51mm | ||
Standards/Approvals No | ||
Maximum Wire Size mm² 1.4mm² | ||
Maximum Operating Temperature 110°C | ||
Minimum Wire Size mm² 0.5mm² | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- US
TE Connectivity 'F' Style Ring Tongue Crimp Terminals
A range of open barrel 'F' style ring and spade crimp terminals
