Samtec FFSD Series Ribbon Cable, Flat, 1.27 mm Pitch, 20, 150 mm Length

RS Stock No.:: 901-1715
Mfr. Part No.:: FFSD-10-D-06.00-01-N
Manufacturer:: Samtec

Samtec FFSD Series Ribbon Cable, Flat, 1.27 mm Pitch, 20, 150 mm Length

Subtotal (1 unit)*

SGD18.37

(exc. GST)

SGD20.02

(inc. GST)

FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28

In Stock

58 unit(s) ready to ship from another location
Plus 56 unit(s) shipping from 29 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	SGD18.37

*price indicative

RS Stock No.:: 901-1715
Mfr. Part No.:: FFSD-10-D-06.00-01-N
Manufacturer:: Samtec

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Samtec
	Product Type	Ribbon Cable
	Cable Type	Flat
	Pitch	1.27mm
	Voltage	63V
	Screened/Unscreened	Unscreened
	Number of Conductors	20
	American Wire Gauge	30AWG
	Jacket Material	Polyvinyl Chloride
	Conductor Type	Stranded
	Series	FFSD
	Cable Length	150mm
	Standards/Approvals	RoHS Compliant, UL
	Jacket Colour	Grey
	Hi-Flex	No
	Fire Behaviour	UL 94 V-0
	Core Strands	7
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	105°C
	Conductor Material	Tin Copper Wire

	Select all
	Brand Samtec
	Product Type Ribbon Cable
	Cable Type Flat
	Pitch 1.27mm
	Voltage 63V
	Screened/Unscreened Unscreened
	Number of Conductors 20
	American Wire Gauge 30AWG
	Jacket Material Polyvinyl Chloride
	Conductor Type Stranded
	Series FFSD
	Cable Length 150mm
	Standards/Approvals RoHS Compliant, UL
	Jacket Colour Grey
	Hi-Flex No
	Fire Behaviour UL 94 V-0
	Core Strands 7
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 105°C
	Conductor Material Tin Copper Wire

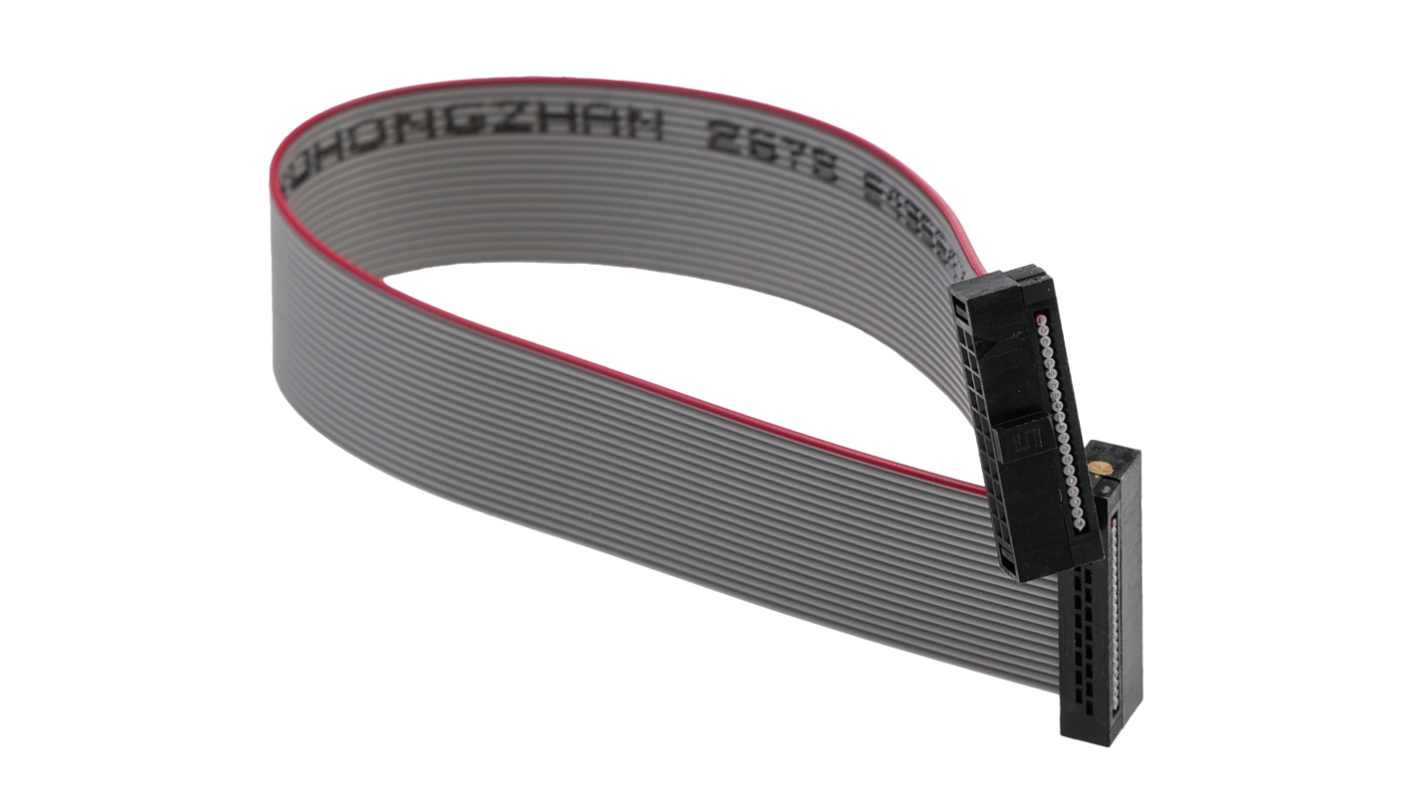

Samtec Ribbon Cable, Shrouded Connectors, 2-Row Contact Layout - FFSD Series - FFSD-10-D-06.00-01-N

Looking to loop a new device into your board-mounted system? Link up with this Samtec ribbon cable. By clicking into headers (159-2325) using its Tiger Eye IDC connectors, it completes circuits in a flash. With support for current up to 2.3A, the lead powers through demanding signalling applications without a fuss. Mounting it into a small enclosure is a cinch, thanks to its compact 150mm length. As the cable comes with shrouded connectors, it has excellent resistance to impact.

Features & Benefits

• 20-way design handles multiple circuits simultaneously

• Regulation pitch size of 1.27mm easily fits in with everyday hardware

• Low insertion force of 1.39N per pin ensures it's effortless to plug in

• PBT insulation offers a high degree of electrical protection

Applications

• Processing plants

• Manufacturing industry

• Data centres

How do I know if I've properly lined it up when installing this cable?

This product's connectors use polarising notches, meaning they only mate when correctly aligned to stop damage from misalignment.

What environment is this ribbon cable suitable for?

It has corrosion-resistant gold-plated copper alloy contacts and an operating temperature range of -40°C to +105°C, so it's suitable for most installations.
