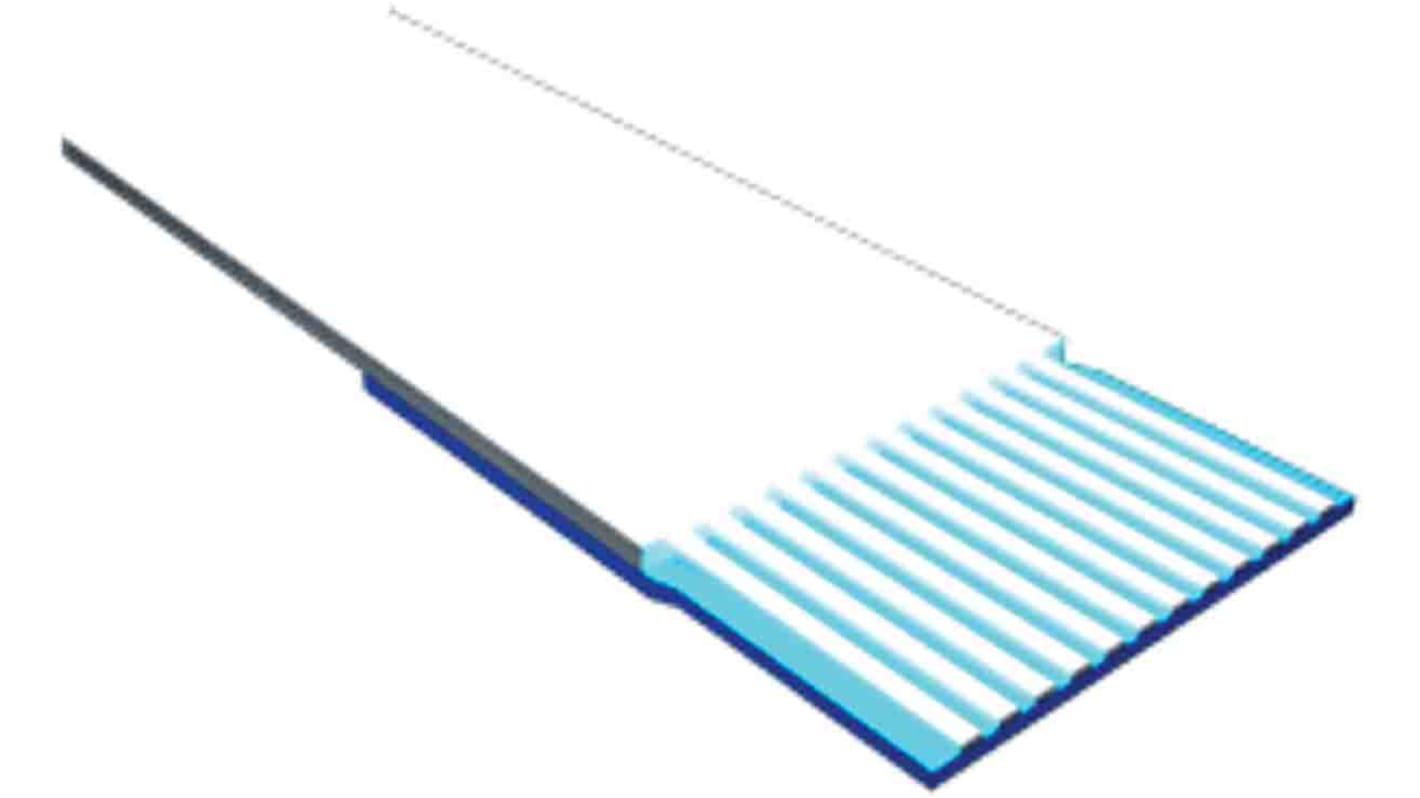

Samtec FJH Series Ribbon Cable, FFC, 0.5 mm Pitch, 30
- RS Stock No.:
- 196-9979
- Mfr. Part No.:
- FJH-30-R-02.00-4
- Manufacturer:
- Samtec
Bulk discount available
Subtotal (1 unit)*
SGD2.94
(exc. GST)
SGD3.20
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | SGD2.94 |
| 25 - 99 | SGD2.82 |
| 100 + | SGD2.71 |
*price indicative
- RS Stock No.:
- 196-9979
- Mfr. Part No.:
- FJH-30-R-02.00-4
- Manufacturer:
- Samtec
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Cable Type | FFC | |
| Product Type | Ribbon Cable | |
| Pitch | 0.5mm | |
| Voltage | 60 V | |
| Screened/Unscreened | Unscreened | |
| American Wire Gauge | 30AWG | |
| Series | FJH | |
| Conductor Type | Stranded | |
| Standards/Approvals | RoHS Compliant | |
| Hi-Flex | Yes | |
| Minimum Operating Temperature | 30°C | |
| Conductor Material | Tin Plated Copper | |
| Maximum Operating Temperature | 80°C | |
| Number of Conductors | 30 | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Cable Type FFC | ||
Product Type Ribbon Cable | ||
Pitch 0.5mm | ||
Voltage 60 V | ||
Screened/Unscreened Unscreened | ||
American Wire Gauge 30AWG | ||
Series FJH | ||
Conductor Type Stranded | ||
Standards/Approvals RoHS Compliant | ||
Hi-Flex Yes | ||
Minimum Operating Temperature 30°C | ||
Conductor Material Tin Plated Copper | ||
Maximum Operating Temperature 80°C | ||
Number of Conductors 30 | ||
The Samtec FJH-30-R-02.00-4 is a FJH series flay flexible cable jumper. It can be easily modified for custom pin counts and lengths. Also it has mating standard and ZIF connectors.
Conductor is tin plated copper
Conductor resistance is 1000W/km max
Temperature rating is -30°C to +80°C
