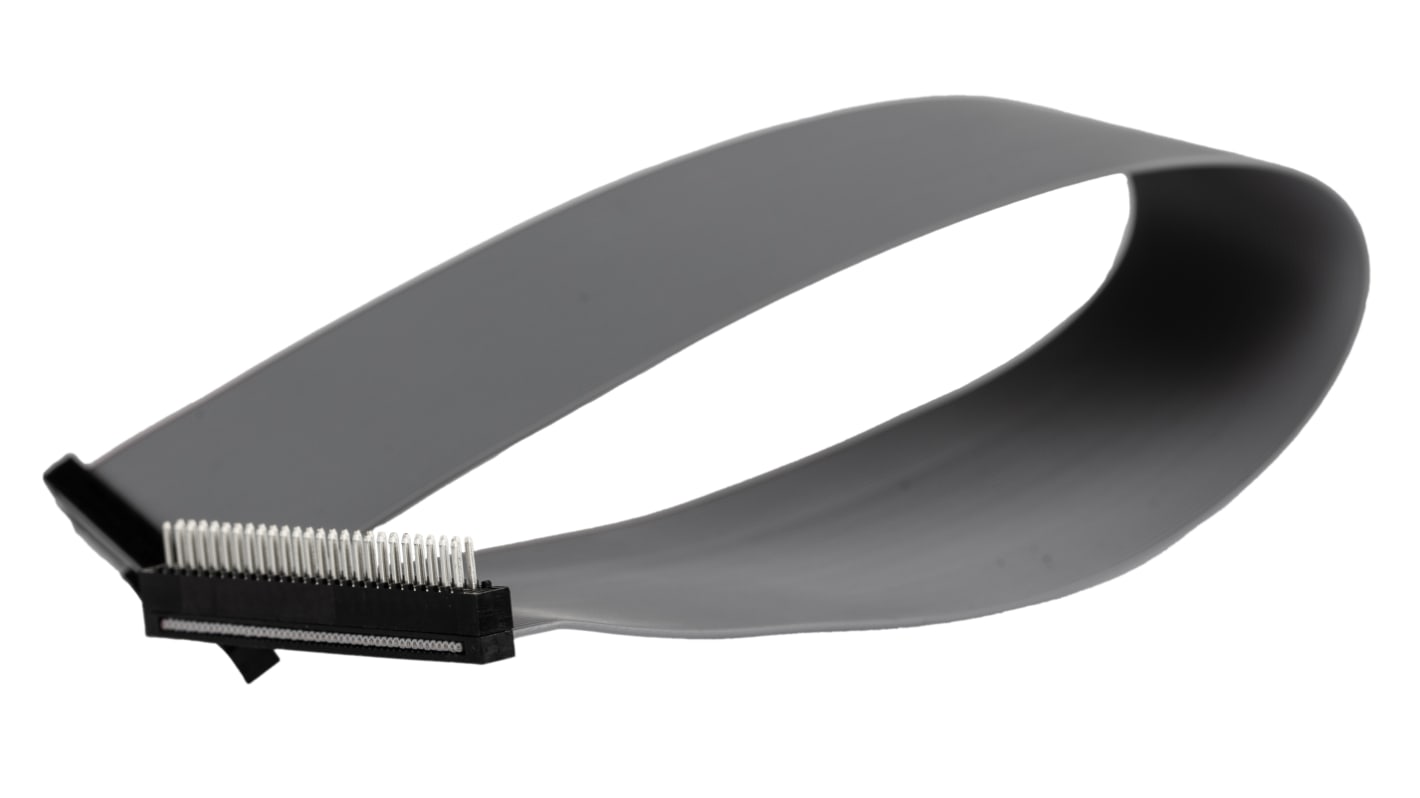

Samtec FFMD Series Ribbon Cable, IDC Ribbon, 1.27 mm Pitch, 25, 203.2 mm Length
- RS Stock No.:
- 160-032
- Mfr. Part No.:
- FFMD-25-T-08.00-01-N
- Manufacturer:
- Samtec
Subtotal (1 unit)*
SGD27.89
(exc. GST)
SGD30.40
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | SGD27.89 |
*price indicative
- RS Stock No.:
- 160-032
- Mfr. Part No.:
- FFMD-25-T-08.00-01-N
- Manufacturer:
- Samtec
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | Ribbon Cable | |
| Cable Type | IDC Ribbon | |
| Pitch | 1.27mm | |
| Voltage | 215, 304V ac | |
| Screened/Unscreened | Unscreened | |
| Number of Conductors | 25 | |
| American Wire Gauge | 30AWG | |
| Jacket Material | Polyester | |
| Series | FFMD | |
| Conductor Type | Stranded | |
| Cable Length | 203.2mm | |
| Standards/Approvals | RoHS Compliant | |
| Jacket Colour | Grey | |
| Hi-Flex | No | |
| Conductor Material | Tin Copper Wire | |
| Maximum Operating Temperature | 105°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type Ribbon Cable | ||
Cable Type IDC Ribbon | ||
Pitch 1.27mm | ||
Voltage 215, 304V ac | ||
Screened/Unscreened Unscreened | ||
Number of Conductors 25 | ||
American Wire Gauge 30AWG | ||
Jacket Material Polyester | ||
Series FFMD | ||
Conductor Type Stranded | ||
Cable Length 203.2mm | ||
Standards/Approvals RoHS Compliant | ||
Jacket Colour Grey | ||
Hi-Flex No | ||
Conductor Material Tin Copper Wire | ||
Maximum Operating Temperature 105°C | ||
Minimum Operating Temperature -40°C | ||
Samtec FFMD Series Ribbon Cable, 1.27mm Pitch, 30 AWG - FFMD-25-T-08.00-01-N
This ribbon cable is a versatile flat cable designed for efficient connections in various electronic applications. With a length of 203.2mm, it features a 1.27mm pitch ensuring compatibility with tight spacing requirements. This terminated ribbon cable utilises Tiger Eye IDC connectors, providing a robust interface for secure connections.
Features & Benefits
• Unscreened design simplifies installation and reduces costs
• 30AWG wire supports applications up to 2.5A per pin
• Dual connector genders enable flexible connection options
• Flat design facilitates easier routing in tight spaces
Applications
• Suitable for internal connections in electronic devices
• Ideal for circuit board interconnections and signal transmission
• Utilised in telecommunications equipment for connectivity
What is the operating temperature range?
Yes, it functions in temperatures ranging from -40 to 105°C.
Is it usable in applications adhering to environmental regulations?
Yes, it is RoHS compliant, meeting required standards.
Will it provide secure connections in compact spaces?
Yes, the flat design allows for routing in confined areas.
